DR250 1992 (N) USA (E03)

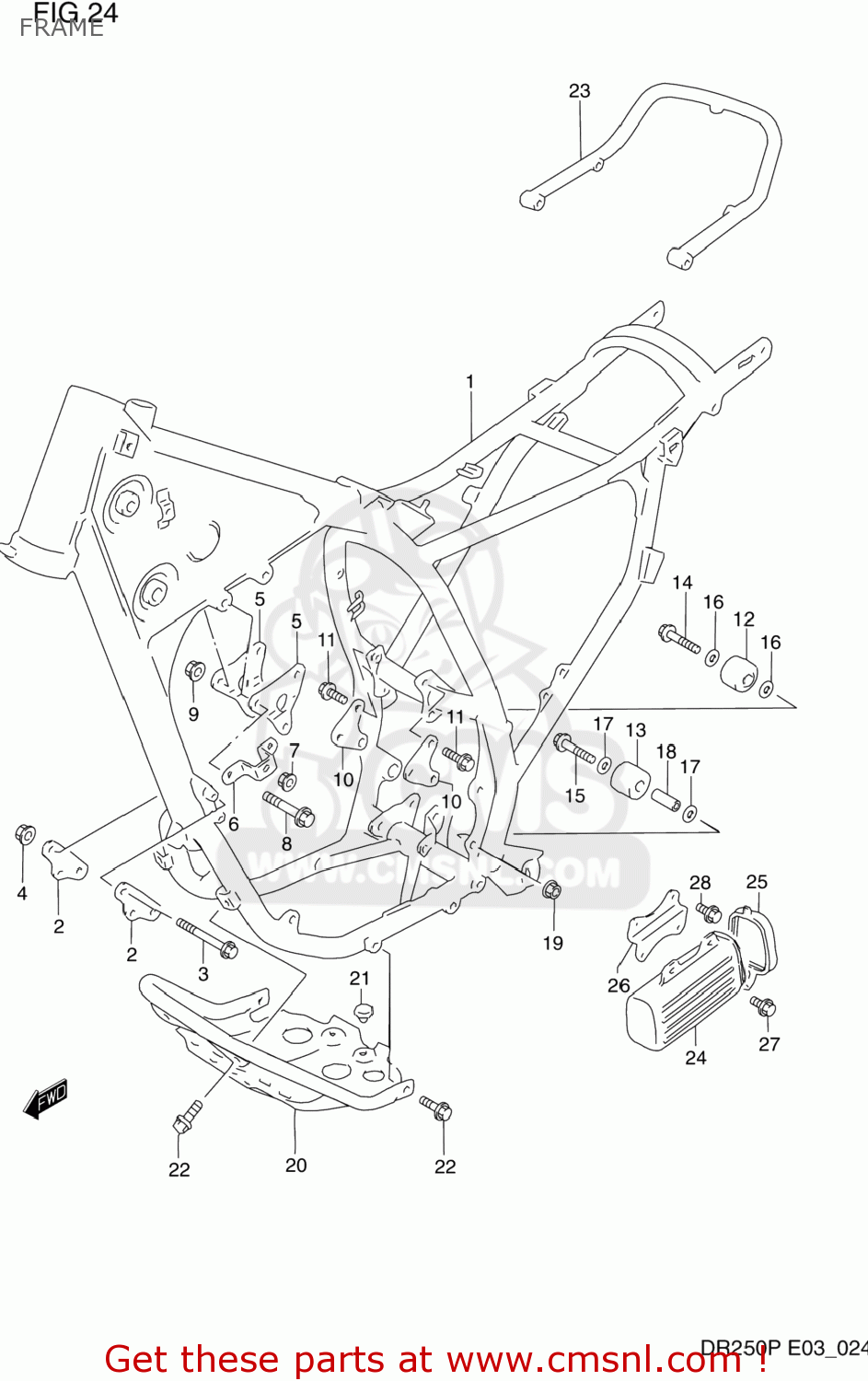

Frame diagram DR250 1992 (N) USA (E03)
FRAME DR250 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110014D010RP
ref: 1-1
41100-14D12-1AZ
FRAME
€ 1,797.50
1-2
4110014D101AZ
ref: 1-2
41100-14D12-1AZ
FRAME
€ 1,797.50
1-3
4110014D111AZ
ref: 1-3
41100-14D12-1AZ
FRAME
€ 1,797.50
1-4
4110014D111TS
ref: 1-4
41100-14D12-1TS
FRAME
€ 1,797.50
2
4191114D01
ref: 2
PLATE,ENGINE MOUNT FR
€ 21.00
3-1
0910308285
ref: 3-1
09103-08294
BOLT
€ 4.50
3-2
0910308294
ref: 3-2
BOLT(8X85)
€ 4.50
4
0915908034
ref: 4
NUT
€ 2.00
5
4199114D01
ref: 5
PLATE,ENGINE MOUNT UPR
€ 30.50
6
4416414D00
ref: 6
PLATE,FUEL TANK STOPPER
€ 3.50
7
0932110018
ref: 7
CUSHION
€ 5.00
8
0910308293
ref: 8
BOLT(8X70)
€ 4.50
9
0915908034
ref: 9
NUT
€ 2.00
10
4197114D01
ref: 10
PLATE,ENGINE MOUNTING,REAR
€ 21.00
11
0910308283
ref: 11
09103-08283-A05
BOLT(8X16)
€ 2.50
12-1
4391027C10
ref: 12-1
43910-27C11
ROLLER,CHAIN
€ 36.50
12-2
4391027C10
ref: 12-2
43910-27C11
ROLLER,CHAIN
€ 36.50
12-3
4391027C11
ref: 12-3
ROLLER,CHAIN
€ 36.50
13
4391101B10
ref: 13
ROLLER,CHAIN CONTROL
€ 14.50
14
0910308178
ref: 14
BOLT(8X38)
€ 5.00
15
0910308068
ref: 15
09103-08043
BOLT 8X45
€ 4.50
16-1
0916008074
ref: 16-1
WASHER(8.5X13X1.6)
€ 2.50
16-2
0916008074
ref: 16-2
WASHER(8.5X13X1.6)
€ 2.50
16-3
0821108121
ref: 16-3
WASHER
€ 2.00
17-1
0916008021
ref: 17-1
09160-08130
WASHER (8.2X24X1.6)
€ 2.00
17-2
0916008074
ref: 17-2
WASHER(8.5X13X1.6)
€ 2.50
17-3
0821108121
ref: 17-3
WASHER
€ 2.00
18
0918008136
ref: 18
09180-08206
SPACER (8.6X13.8X28)
€ 9.00
19
0831321087
ref: 19
08313-20087
NUT 8MM
€ 2.50
20-1
4251014D0113L
ref: 20-1
42510-14D10-13L
PROTECTOR,ENGINE
€ 269.50
20-2
4251014D1013L
ref: 20-2
PROTECTOR,ENGINE(SILVER)
€ 269.50
21
0932110026
ref: 21
CUSHION
€ 9.00
22
0151708128
ref: 22
01550-08127
BOLT 8X12
€ 3.50
23-1
4398014D500RP
ref: 23-1
43980-14D52-1AZ
GRIP COMP,REAR
€ 185.50
23-2
4398014D521AZ
ref: 23-2
GRIP,REAR
€ 185.50
23-3
4398014D521TS
ref: 23-3
GRIP,RR
€ 208.50
24
4743114D00
ref: 24
HOLDER,TOOL
€ 25.50
25
4743214D00
ref: 25
CAP,TOOL HOLDER
€ 8.50
26
4744014D00
ref: 26
PLATE,TOOL HOLDER FITING
€ 0.00
27
0911606085
ref: 27
09116-06165
BOLT M6X16
€ 2.50
28
0151706105
ref: 28
01550-0610A
BOLT
€ 2.50
