LEFT KNUCKLE COVER
DR250 1992 (N) USA (E03)

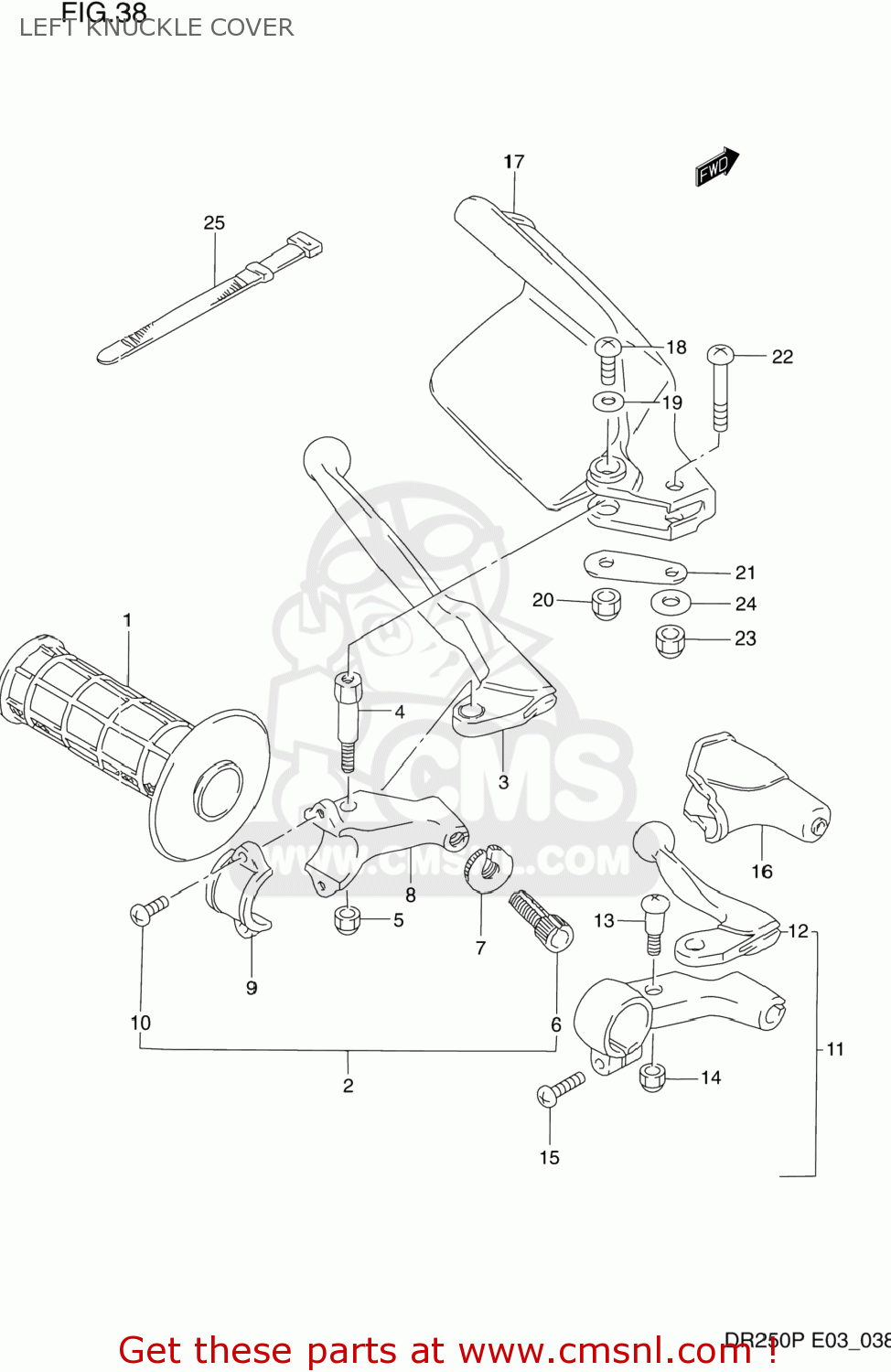

Left knuckle cover diagram DR250 1992 (N) USA (E03)
LEFT KNUCKLE COVER DR250 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5721127C00
ref: 1
GRIP,L
€ 11.00
2
5750014D00
ref: 2
LEVER ASSY,CLUTCH
€ 53.50
3
5762014300
ref: 3
LEVER,CLUTCH
€ 26.00
4
5763105D00
ref: 4
BOLT,LEVER SET
€ 7.00
5
0831921068
ref: 5
08319-2106A
NUT 6MM
€ 2.00
6
5744111010
ref: 6
ADJUSTER,CABLE
€ 8.00
7
5744205D00
ref: 7
NUT,LOCK
€ 7.50
8
5751114300
ref: 8
HOLDER,CLUTCH LEVER
€ 29.50
9
5751214300
ref: 9
BRACKET,CLUTCH LEVER HOLDER
€ 32.00
10
0912505102
ref: 10
SCREW(5X14)
€ 2.50
11
5870038200
ref: 11
LEVER ASSEMBLY,DECOMPRESSION
€ 169.50
12
5873138200
ref: 12
LEVER,DECOMP
€ 42.00
13
5743101012
ref: 13
BOLT,LEVER PIVOT
€ 5.00
14
5763338200
ref: 14
NUT
€ 2.00
15
0211206205
ref: 15
02112-0620A
SCREW
€ 2.00
16
5734237101
ref: 16
COVER,DECOMP LEVER DUST
€ 9.50
17
5754114D0025Y
ref: 17
57541-05D01-25Y
COVER,KNUCKLE,LEFT
€ 26.50
18
0912505042
ref: 18
SCREW(5X10)
€ 2.50
19
0916005017
ref: 19
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
20
0831921068
ref: 20
08319-2106A
NUT 6MM
€ 2.00
21
5754205D00
ref: 21
PLATE,KNUCKLE COVER,L LWR
€ 3.50
22-1
0214206357
ref: 22-1
SCREW
€ 2.00
22-2
0912506091
ref: 22-2
SCREW(6X35)
€ 2.50
23
0831921068
ref: 23
08319-2106A
NUT 6MM
€ 2.00
24
0916006042
ref: 24
09160-06130
WASHER (6.5X17X1.6)
€ 2.00
25
0940712402
ref: 25
CLAMP(L:120)
€ 3.00
