TAIL LAMP

DR250 1992 (N) USA (E03)

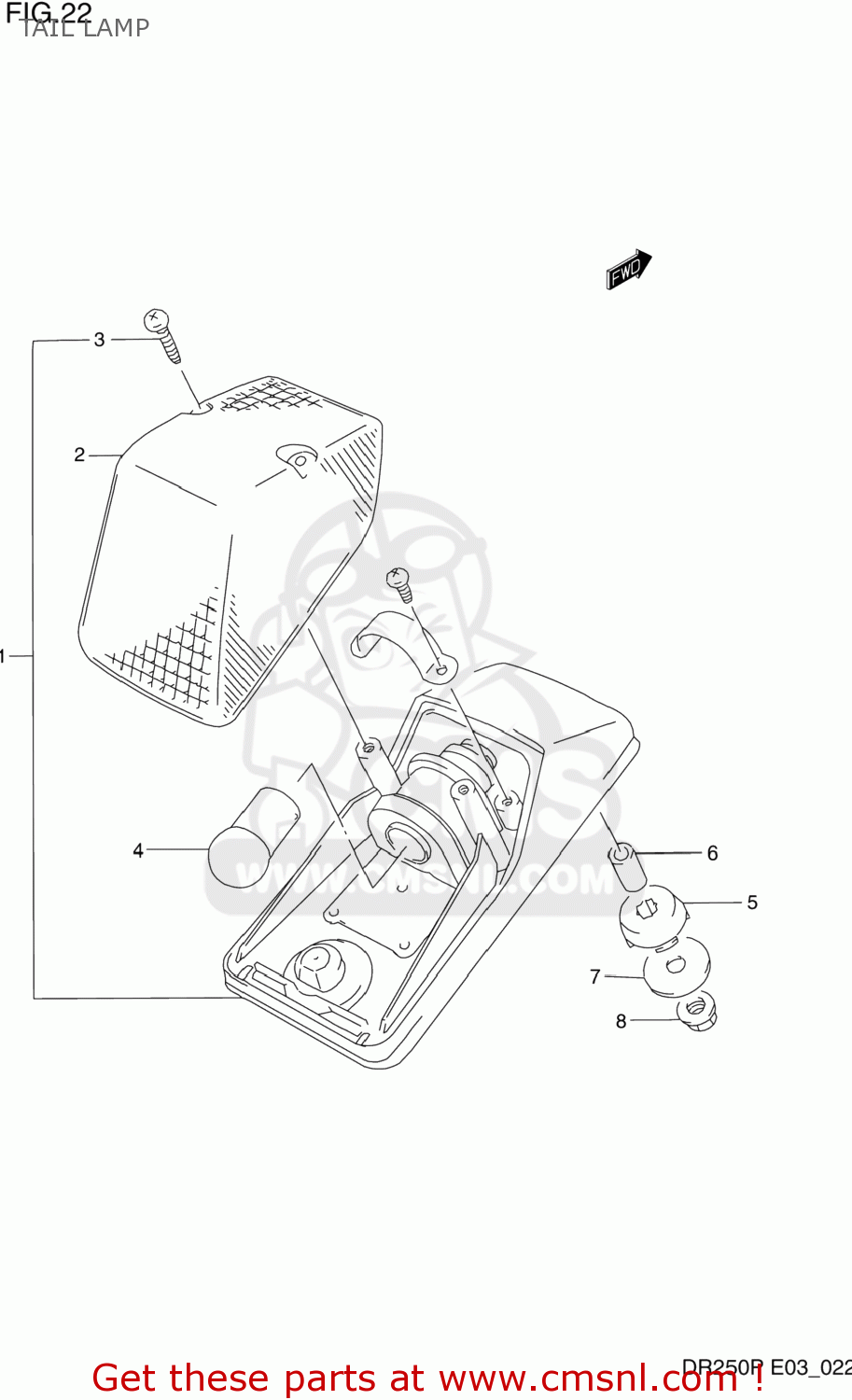

Tail lamp diagram DR250 1992 (N) USA (E03)

TAIL LAMP DR250 1992 (N) USA (E03)

TAIL LAMP DR250 1992 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3571014D00
ref: 1

LAMP ASSY,TAIL

€ 62.50

2

3571203D00
ref: 2

LENS

€ 18.50

3

0351104165
ref: 3
03511-0416A

SCREW

€ 1.50

4

0947112140
ref: 4
09471-12058

BULB(12V5W,BF150-40160A)

€ 4.00

5

0932009010
ref: 5

CUSHION

€ 2.50

6

0918006121
ref: 6

SPACER(6.4X9.2X12)

€ 2.50

7

0916006060
ref: 7
09160-06077

WASHER

€ 2.00

8

0831616066
ref: 8
08316-1006B

NUT

€ 2.50
