HEADLAMP
DR250 1992 (N) USA (E03)

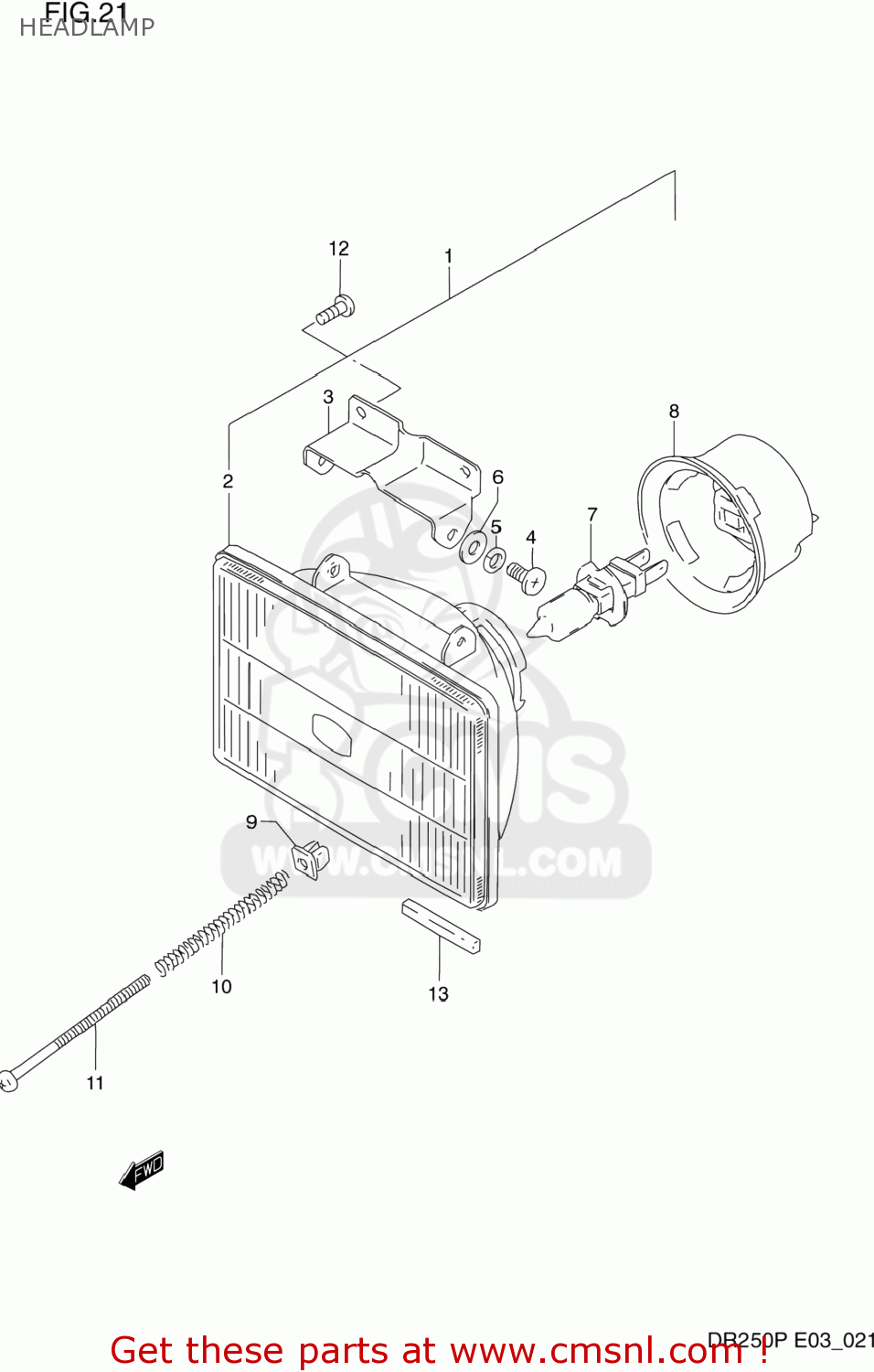

Headlamp diagram DR250 1992 (N) USA (E03)
HEADLAMP DR250 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3510005D00
ref: 1-1
HEADLAMP ASSY
€ 107.00
1-2
3510005D10
ref: 1-2
HEADLAMP ASSY
€ 150.00
2
3512105D00
ref: 2
35121-05D01
UNIT,LAMP
€ 80.00
3
3523005D00
ref: 3
BRACKET,LAMP
€ 9.00
4
3513616700
ref: 4
SCREW
€ 3.00
5
0832121057
ref: 5
08321-0105A
LOCK WASHER
€ 2.00
6
3513805D00
ref: 6
WASHER
€ 1.50
7
0947112160
ref: 7
BULB(12V55W)
€ 24.50
8
3517305D00
ref: 8
COVER,SOCKET
€ 15.00
9
3515205C00
ref: 9
35135-12E20
NUT,HEADLAMP ADJUSTER
€ 2.50
10
3515430B00
ref: 10
SPRING,HEAD LAMP ADJUSTER
€ 1.50
11
3515105D00
ref: 11
09125-04501
SCREW,HEADLAMP ADJUST
€ 3.00
12
0351104106
ref: 12
03511-0410A
SCREW
€ 1.50
13
3365214D00
ref: 13
33652-20C00
PROTECTOR,BATTERY
€ 2.50
