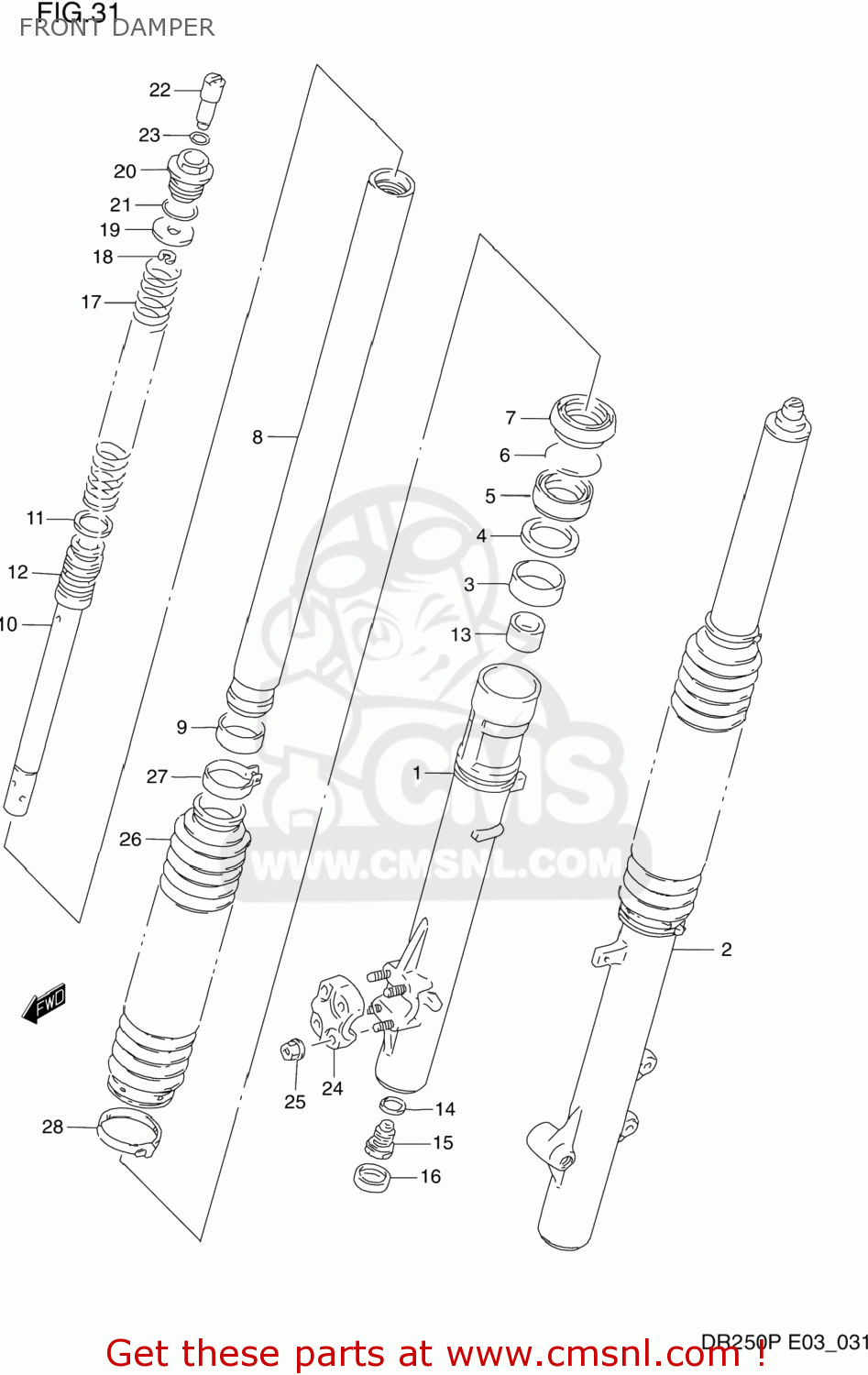

FRONT DAMPER

ref

part #

description

quantity

5110314D00
ref:

DAMPER ASSEMBLY,RIGHT

€ 895.50

5110414D00
ref:

DAMPER ASSEMBLY,LEFT

€ 895.50

1

5113014D00
ref: 1

TUBE,OUTER,R

€ 309.50

2

5114014D00
ref: 2

TUBE,OUTER,L

€ 301.50

3-1

5115207D00
ref: 3-1

BUSH,GUIDE

€ 24.50

3-2

5115207D00
ref: 3-2

BUSH,GUIDE

€ 24.50

4

5116817C00
ref: 4

SPACER,SEAL

€ 5.00

5

5115314D00
ref: 5

SEAL,OIL

€ 20.50

6

5155638B00
ref: 6

CIRCLIP,FORK OIL SEAL

€ 4.50

7

5117314D00
ref: 7

DUST SEAL

€ 19.50

8

5111014D00
ref: 8

TUBE,INNER

€ 281.00

9

5112114D00
ref: 9

BUSH,SLIDE

€ 16.50

10

5119014D00
ref: 10

CYLINDER

€ 116.50

11

5119614D00
ref: 11

RING,PISTON

€ 5.50

12

5117714D00
ref: 12

SPRING,REBOUND

€ 8.00

13

5119514D00
ref: 13

PIECE,OIL LOCK

€ 9.50

14

5114814D00
ref: 14

GASKET (NAS)

€ 5.50

15

5117014D00
ref: 15

BOLT,LWR

€ 78.00

16

5151214D00
ref: 16

CAP,LOWER

€ 8.50

17

5117114D00
ref: 17

SPRING,MAIN

€ 62.50

18

5178811420
ref: 18

E RING

€ 4.00

19

5118612C00
ref: 19

SEAT,SPRING

€ 3.50

20

5118914D00
ref: 20

BOLT,FORK

€ 62.50

21

5111717C00
ref: 21

O RING

€ 3.50

22

5118514D00
ref: 22

ADJUSTER,SPRING

€ 33.00

23

5118714D00
ref: 23
09280-14011

O RING

€ 3.50

24

5113214D00
ref: 24

HOLDER,AXLE

€ 30.50

25

5116814D00
ref: 25

NUT,HOLDER

€ 3.50

26

5157114D00163
ref: 26

BOOT

€ 62.50

27

5157514D00
ref: 27

BAND,BOOT UPR

€ 8.50

28

5157614D00
ref: 28

BAND,BOOT LWR

€ 10.00

all assemblies
