CLUTCH
DR250SE 1990 (L) USA (E03)

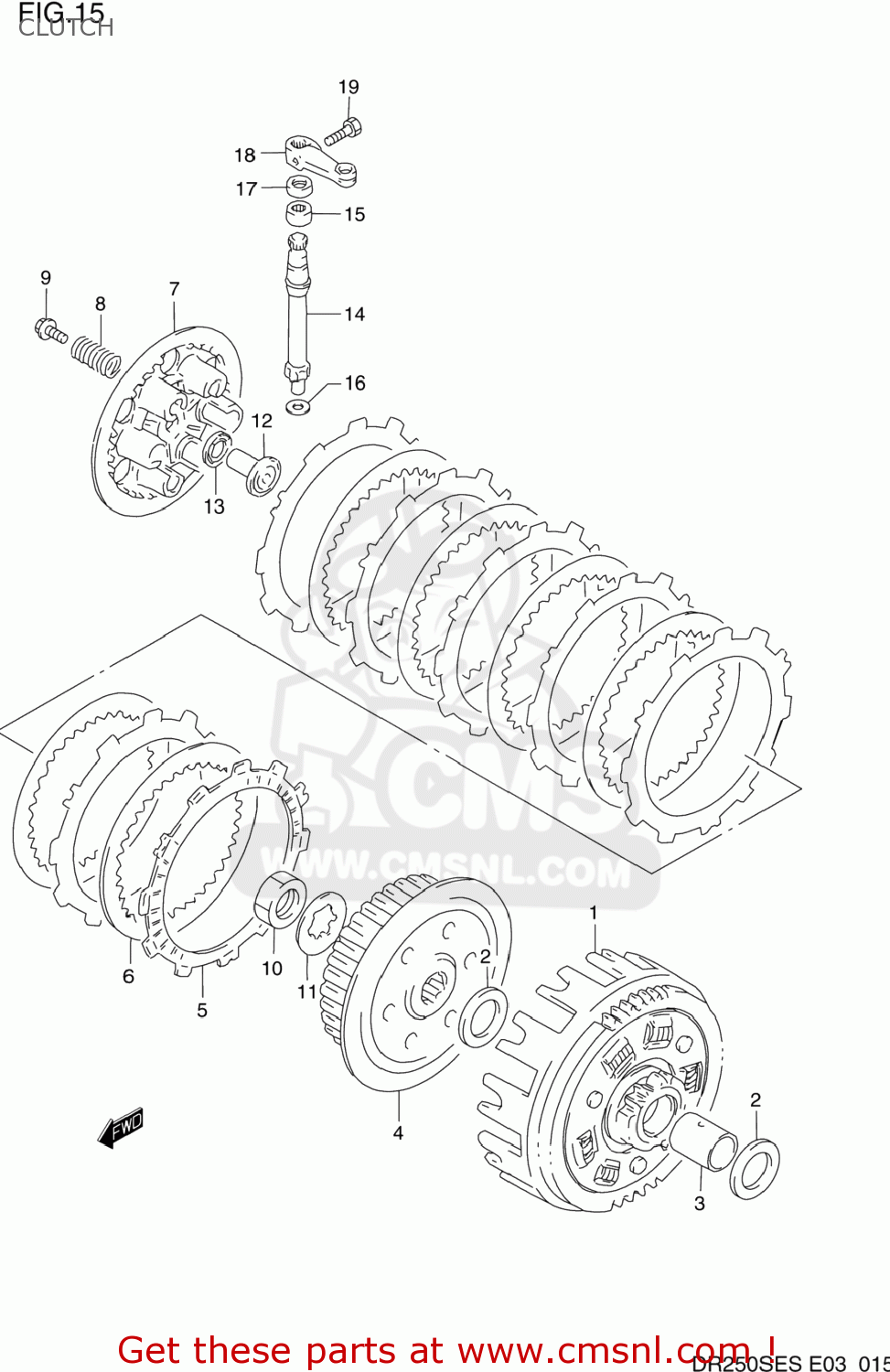

Clutch diagram DR250SE 1990 (L) USA (E03)
CLUTCH DR250SE 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2120014D10
ref: 1-1
21200-14D11
GEAR ASSEMBLY,PRIMARY DRIVE
€ 321.00
1-2
2120014D11
ref: 1-2
GEAR ASSY,PRI DRIVEN(62/15
€ 321.00
1-3
2120015D21
ref: 1-3
GEAR ASSY,PRI DRIVEN(64/15
€ 238.00
2
0821120363
ref: 2
WASHER
€ 3.50
3
0918020109
ref: 3
SPACER(20X25X29)
€ 15.50
4
2141014D00
ref: 4
HUB,CLUTCH SLEEVE
€ 114.00
5-1
2144112D00
ref: 5-1
21441-12D01
PLATE,CLUTCH DRIVE (NAS)
€ 16.50
5-2
2144112D01
ref: 5-2
PLATE,CLUTCH DRIVE (NAS)
€ 16.50
6
2145128C30
ref: 6
21451-28C31
PLATE,CLUTCH DRIVEN T: (NAS)
€ 10.50
7
2146200B02
ref: 7
DISC,CLUTCH PRESSURE
€ 40.00
8
0944015014
ref: 8
SPRING
€ 4.00
9
0911605003
ref: 9
09116-05020
BOLT 5X16
€ 2.50
10
0914020002
ref: 10
09140-20001
NUT (20MM)
€ 3.50
11
0916720009
ref: 11
WASHER,LOCK
€ 3.00
12-1
2316500B00
ref: 12-1
23165-44B01
RACK,CLUTCH RELEASE
€ 17.00
12-2
2316544B01
ref: 12-2
RACK,CLUTCH RELEASE
€ 17.00
13
0926310002
ref: 13
BEARING(10X22X2.8)
€ 8.50
14
2326114D02
ref: 14
PINION,CLUTCH RELEASE
€ 36.00
15
0926312024
ref: 15
BEARING(12X16X10)
€ 11.00
16
0821108141
ref: 16
09181-08139
WASHER
€ 1.50
17
0928510004
ref: 17
SEAL,OIL(10X17X5)
€ 3.50
18-1
2327120900
ref: 18-1
23271-20902
ARM,CLUTCH RELEASE
€ 20.50
18-2
2327120901
ref: 18-2
23271-20902
ARM,CLUTCH RELEASE
€ 20.50
19-1
0110706167
ref: 19-1
01500-06167
BOLT
€ 3.00
19-2
0150006163
ref: 19-2
01500-0616A
BOLT
€ 2.00
