CYLINDER

DR250SE 1990 (L) USA (E03)

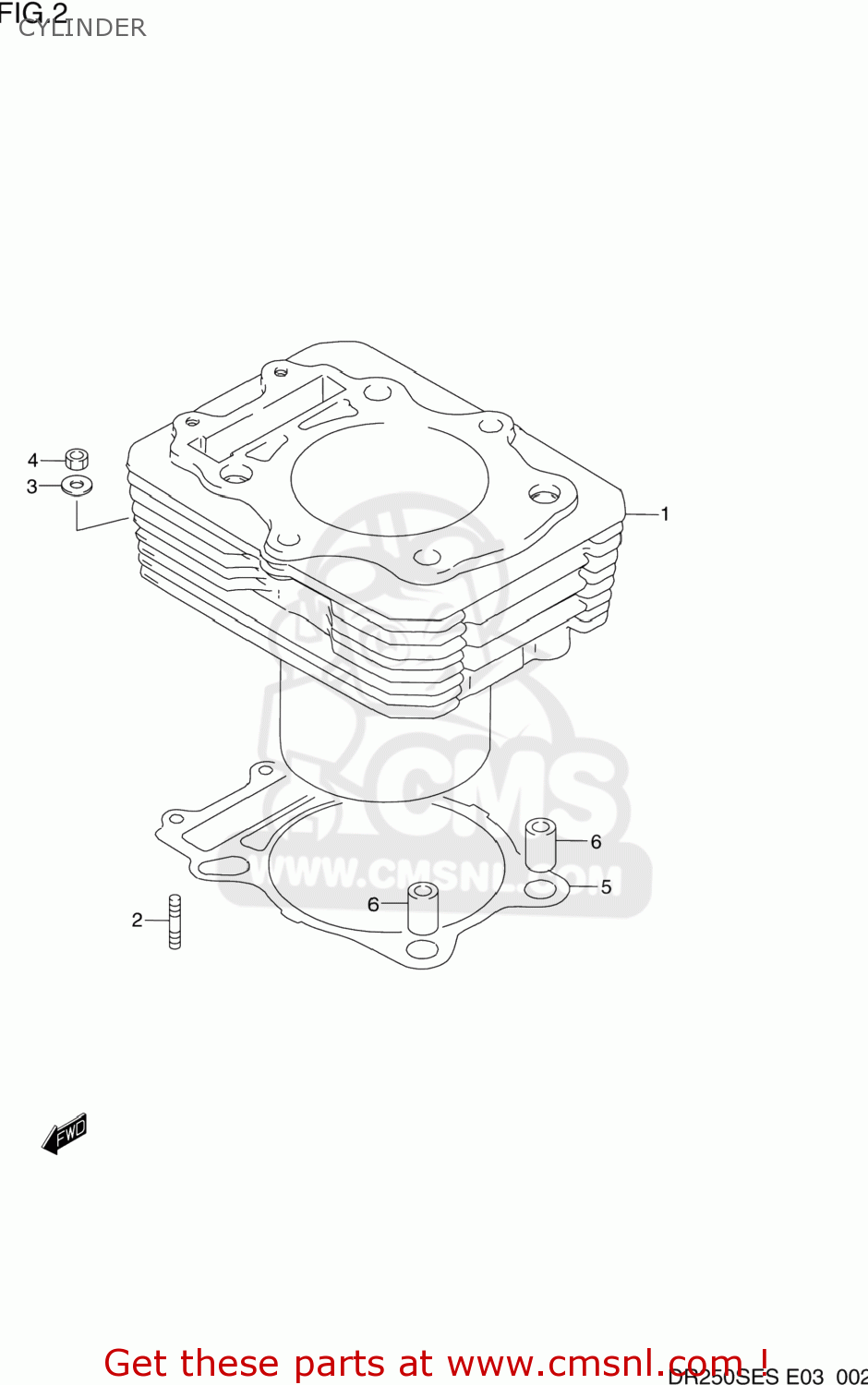

Cylinder diagram DR250SE 1990 (L) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1121015D010F0
ref: 1-1
11210-15D11-0F0

CYLINDER

€ 215.50

1-2

1121015D110F0
ref: 1-2

CYLINDER

€ 215.50

0142106208
ref: 2
01421-0620A

STUD 6X20

€ 2.50

3-1

0832211068
ref: 3-1
08322-0106B

WASHER 6MM

€ 2.00

3-2

0832201063
ref: 3-2
08322-0106B

WASHER

€ 2.00

4-1

0914006022
ref: 4-1
09140-06502

NUT

€ 3.00

4-2

0914006502
ref: 4-2

NUT

€ 3.00

1124114D01
ref: 5

GASKET,CYLINDER (NAS)

€ 12.00

6-1

0920613001
ref: 6-1
04211-13189

PIN

€ 2.50

6-2

0421113189
ref: 6-2

PIN

€ 2.50
