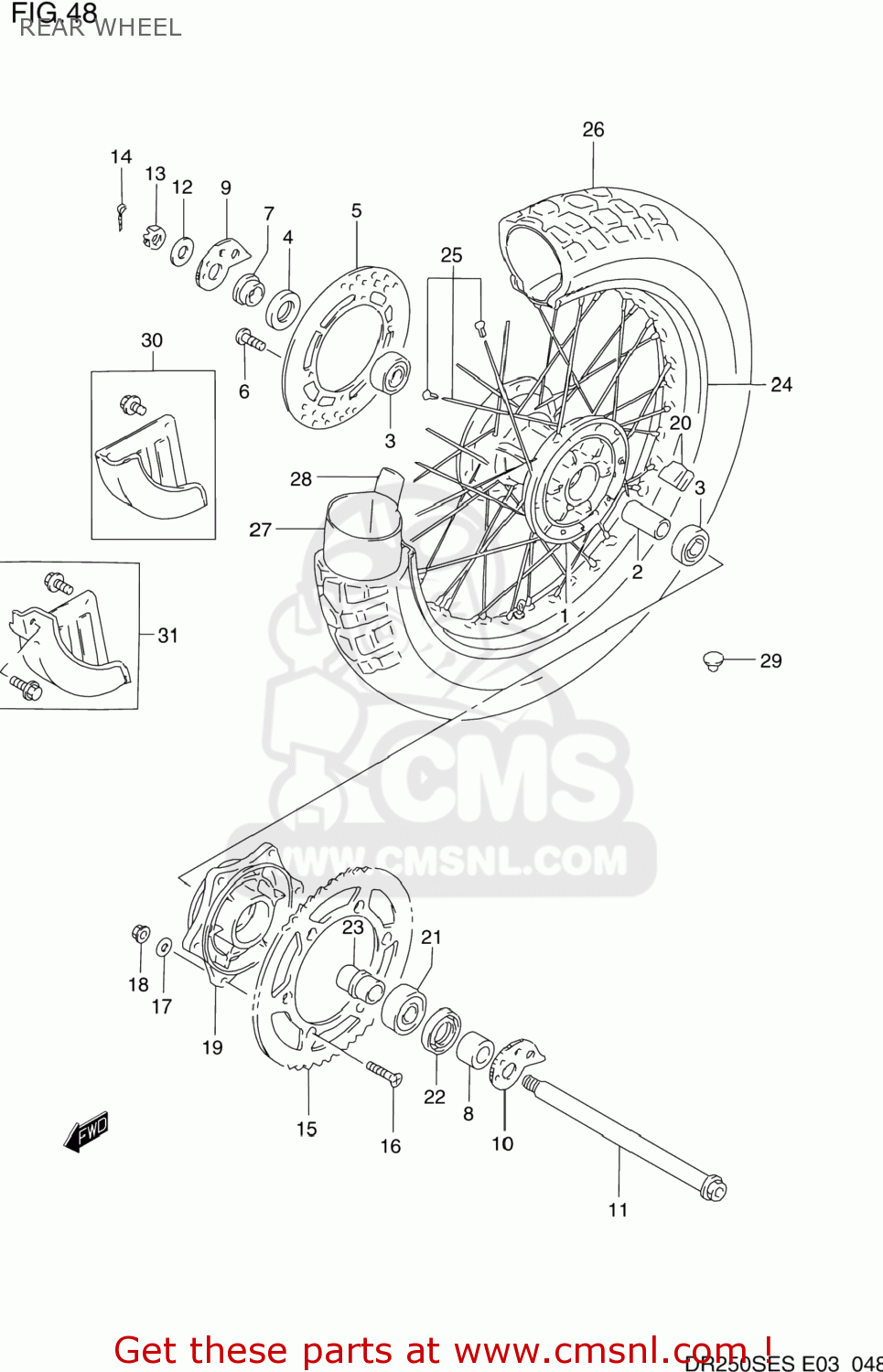

REAR WHEEL

ref

part #

description

quantity

1

6411115D00
ref: 1

HUB,RR WHEEL

€ 307.50

2

6473115D00
ref: 2

SPACER,RR HUB BEARING

€ 14.00

3

0812362047
ref: 3

BEARING

€ 17.00

4

0928326019
ref: 4

SEAL,OIL(26X47X5)

€ 9.50

5

6921103D01
ref: 5

DISC,RR BRAKE

€ 160.00

6-1

0910608091
ref: 6-1
09106-08128

BOLT

€ 4.00

6-2

0910608111
ref: 6-2
09106-08128

BOLT

€ 4.00

7

6474105D00
ref: 7

SPACER,RR AXLE,R

€ 9.00

8

6475115D00
ref: 8

SPACER,RR AXLE,L

€ 17.50

9-1

6141014D00
ref: 9-1
61420-05D00

ADJUSTER,CHAIN

€ 26.50

9-2

6141014D10
ref: 9-2

ADJUSTER,CHAIN,R

€ 31.50

10-1

6142114D00
ref: 10-1

ADJUSTER,CHAIN,LEFT

€ 12.00

10-2

6142114D10
ref: 10-2

ADJUSTER,CHAIN,L

€ 15.00

11-1

6471115D01
ref: 11-1
64710-14D20

AXLE,REAR

€ 72.00

11-2

6471115D50
ref: 11-2

AXLE,RR

€ 70.00

12-1

0916019010
ref: 12-1
09160-19022

WASHER (19X32X3.2)

€ 5.00

12-2

0916019022
ref: 12-2

WASHER(19X32X3.2)

€ 5.00

13-1

0831441188
ref: 13-1
08314-40187

NUT 18MM

€ 6.00

13-2

0831440183
ref: 13-2
08314-4018A

NUT

€ 4.50

14

0411140308
ref: 14
04111-4030A

PIN,COTTER

€ 1.50

15-1

6451115D10
ref: 15-1

SPROCKET,RR(NT:49)

€ 64.00

15-2

6451115D60
ref: 15-2

SPROCKET,RR(NT:42)

€ 0.00

16

0912008010
ref: 16

BOLT(8X30.5)

€ 2.50

17-1

0832211088
ref: 17-1
08322-01087

WASHER

€ 2.00

17-2

0832201083
ref: 17-2
08322-0108A

WASHER

€ 1.50

18

0831931087
ref: 18

NUT

€ 2.50

19

6461115D00
ref: 19
64611-15D01

DRUM,REAR SPROCKET MOUNT

€ 75.50

20

6465115D00
ref: 20

ABSORBER,RR HUB SHOCK

€ 9.00

21

0926225061
ref: 21

BEARING(25X52X15)

€ 27.50

22

0928334003
ref: 22

SEAL,OIL(34X52X6)

€ 9.00

23

6473315D00
ref: 23

RETAINER,RR SPROCKET DRUM

€ 23.00

24-1

6531115D00
ref: 24-1

RIM,REAR WHEEL (18X2.15)

€ 250.50

24-2

6531115D10
ref: 24-2

RIM,REAR WHEEL (18X2.15)

€ 340.00

25

6532015D00
ref: 25

SPOKE SET,RR WHEEL

€ 54.50

26-1

6511015D00
ref: 26-1
65110-08D10

TIRE

€ 201.00

26-1

6511015D00
ref: 26-1
65110-08D10

TIRE

€ 201.00

26-2

6511008D10
ref: 26-2

TIRE,REAR 110/90-18

€ 201.00

26-2

6511008D10
ref: 26-2

TIRE,REAR 110/90-18

€ 201.00

26-3

6511015D50
ref: 26-3

TIRE,RR(110/90 18)

€ 0.00

26-3

6511015D50
ref: 26-3

TIRE,RR(110/90 18)

€ 0.00

27

6520014540
ref: 27
65200-42AA0

TUBE ASSEMBLY,WHEEL,INNER

€ 34.00

28

6526115D00
ref: 28

PROTECTOR,WHL INR TUBE

€ 5.50

29

0925008013
ref: 29

CAP(OD:12)

€ 2.00

30

6920027C00
ref: 30

COVER SET,REAR BRAKE DRUM

€ 27.00

30

6920027C00
ref: 30

COVER SET,REAR BRAKE DRUM

€ 27.00

30

6920027C00
ref: 30

COVER SET,REAR BRAKE DRUM

€ 27.00

31

6920028C00
ref: 31

COVER SET,RR BRAKE DISC

€ 29.50

31

6920028C00
ref: 31

COVER SET,RR BRAKE DISC

€ 29.50

31

6920028C00
ref: 31

COVER SET,RR BRAKE DISC

€ 29.50

32

9901115D8103A
ref: 32

NO PRODUCT DESCRIPTION AVAILABLE

€ 9.50

all assemblies
