FRAME
DR250SE 1990 (L) USA (E03)

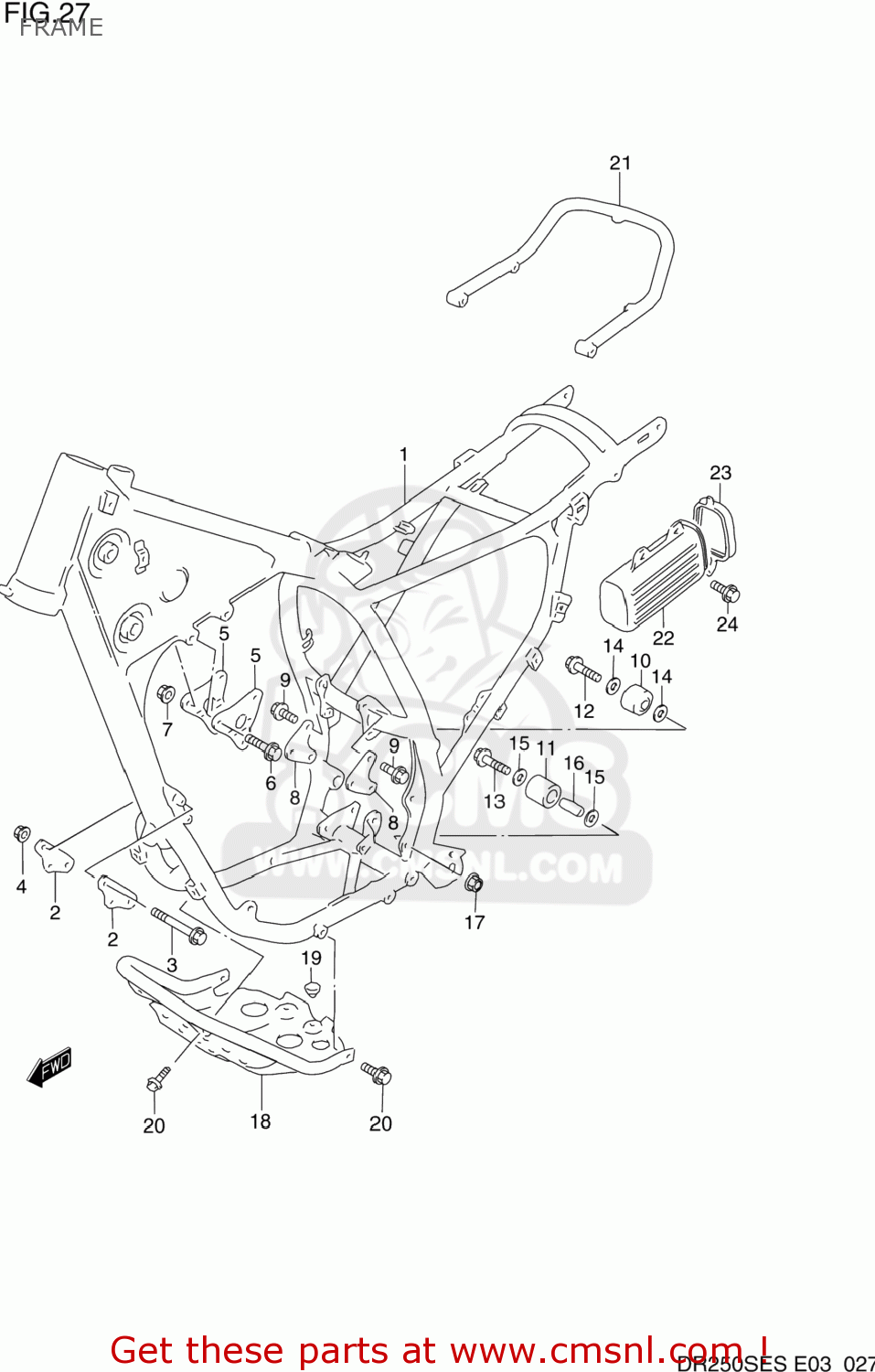

Frame diagram DR250SE 1990 (L) USA (E03)
FRAME DR250SE 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110014D200NF
ref: 1-1
41100-14D72-0NF
FRAME
€ 1,104.50
1-2
4110014D300NF
ref: 1-2
41100-14D72-0NF
FRAME
€ 1,104.50
1-3
4110014D310NF
ref: 1-3
41100-14D72-0NF
FRAME
€ 1,104.50
1-4
4110015D200NF
ref: 1-4
41100-15D22-0NF
FRAME
€ 731.50
1-5
4110015D220NF
ref: 1-5
FRAME
€ 731.50
2
4191114D01
ref: 2
PLATE,ENGINE MOUNT FR
€ 21.00
3
0910308294
ref: 3
BOLT(8X85)
€ 4.50
4
0915908034
ref: 4
NUT
€ 2.00
5
4199114D01
ref: 5
PLATE,ENGINE MOUNT UPR
€ 30.50
6
0910308293
ref: 6
BOLT(8X70)
€ 4.50
7
0915908034
ref: 7
NUT
€ 2.00
8
4197114D01
ref: 8
PLATE,ENGINE MOUNTING,REAR
€ 21.00
9
0910308283
ref: 9
09103-08283-A05
BOLT(8X16)
€ 2.50
10-1
4391027C10
ref: 10-1
43910-27C11
ROLLER,CHAIN
€ 36.50
10-2
4391027C10
ref: 10-2
43910-27C11
ROLLER,CHAIN
€ 36.50
10-3
4391027C11
ref: 10-3
ROLLER,CHAIN
€ 36.50
10-4
4391027C11
ref: 10-4
ROLLER,CHAIN
€ 36.50
11
4391101B10
ref: 11
ROLLER,CHAIN CONTROL
€ 14.50
12
0910308178
ref: 12
BOLT(8X38)
€ 5.00
13-1
0151708457
ref: 13-1
01550-08457
BOLT 8X45
€ 4.00
13-2
0910308068
ref: 13-2
09103-08043
BOLT 8X45
€ 4.50
14-1
0916008074
ref: 14-1
WASHER(8.5X13X1.6)
€ 2.50
14-2
0821108121
ref: 14-2
WASHER
€ 2.00
14-3
0821108221
ref: 14-3
WASHER
€ 2.50
15-1
0916008021
ref: 15-1
09160-08130
WASHER (8.2X24X1.6)
€ 2.00
15-2
0821108121
ref: 15-2
WASHER
€ 2.00
16
0918008136
ref: 16
09180-08206
SPACER (8.6X13.8X28)
€ 9.00
17-1
0831321087
ref: 17-1
08313-20087
NUT 8MM
€ 2.50
17-2
0831320083
ref: 17-2
08313-2008A
NUT
€ 2.50
18-1
4251014D0113L
ref: 18-1
42510-14D10-13L
PROTECTOR,ENGINE
€ 269.50
18-2
4251014D1013L
ref: 18-2
PROTECTOR,ENGINE(SILVER)
€ 269.50
19
0932110026
ref: 19
CUSHION
€ 9.00
20-1
0151708128
ref: 20-1
01550-08127
BOLT 8X12
€ 3.50
20-2
0155008123
ref: 20-2
01550-0812A
BOLT
€ 3.50
21-1
4398014D700NF
ref: 21-1
43980-15D30-0NF
GRIP COMP,REAR
€ 59.50
21-2
4398014D710NF
ref: 21-2
43980-15D30-0NF
GRIP COMP,REAR
€ 59.50
21-3
4398015D300NF
ref: 21-3
GRIP COMP,REAR
€ 59.50
21-4
4398015D301TS
ref: 21-4
GRIP,RR
€ 59.50
22
4743114D00
ref: 22
HOLDER,TOOL
€ 25.50
23
4743214D00
ref: 23
CAP,TOOL HOLDER
€ 8.50
24-1
0911606085
ref: 24-1
09116-06165
BOLT M6X16
€ 2.50
24-2
0911606144
ref: 24-2
09116-06165
BOLT 6X16
€ 2.50
