HEADLAMP
DR250SE 1990 (L) USA (E03)

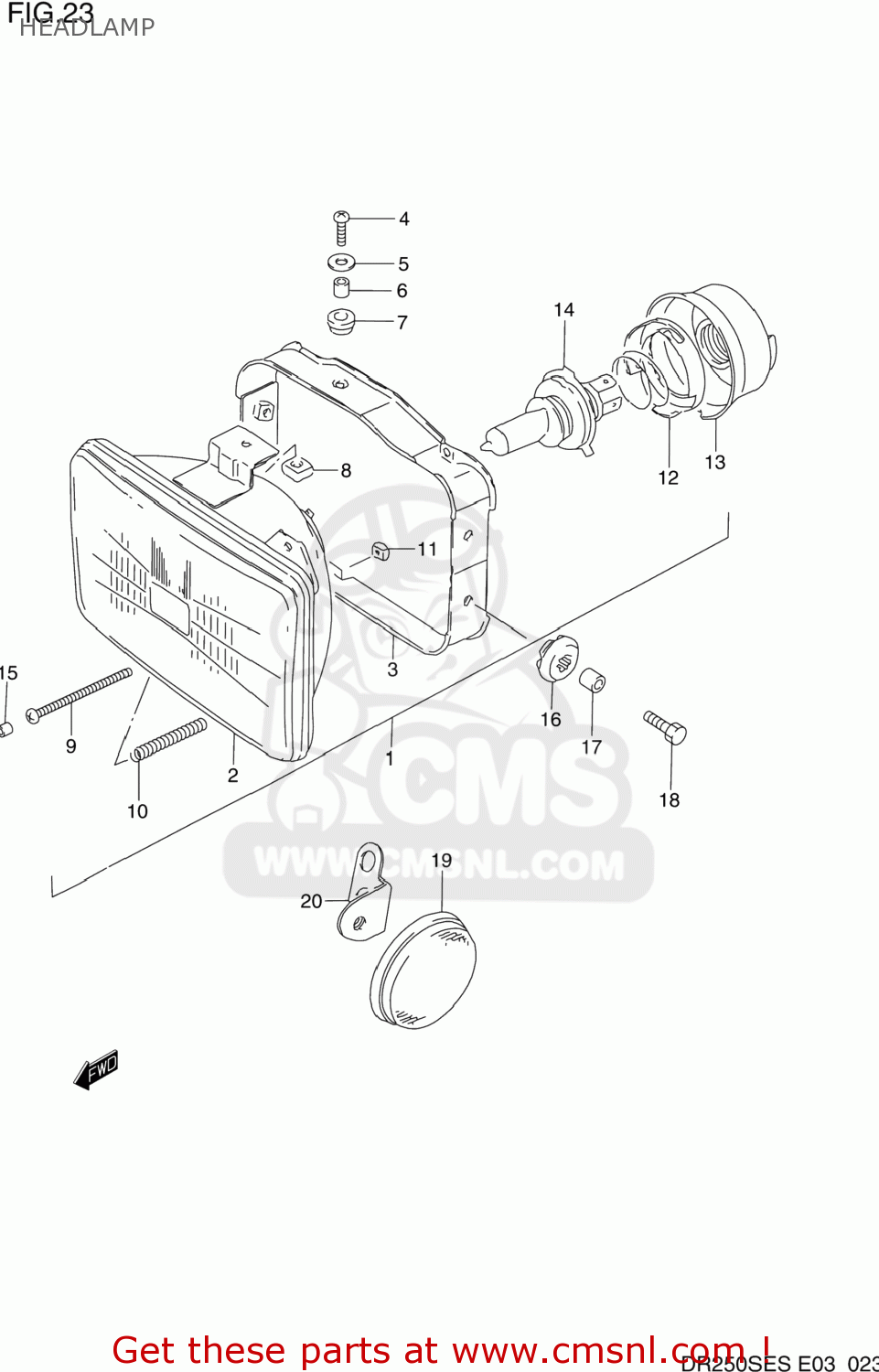

Headlamp diagram DR250SE 1990 (L) USA (E03)
HEADLAMP DR250SE 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3510014A30999
ref: 1-1
35100-14A32-999
HEADLAMP ASSEMBLY
€ 180.50
1-2
3510014A31999
ref: 1-2
35100-14A32-999
HEADLAMP ASSEMBLY
€ 180.50
2-1
3512114A30
ref: 2-1
35121-14A31
LAMP UNIT
€ 90.00
2-2
3512114A31
ref: 2-2
LAMP UNIT
€ 90.00
3
3514114A00
ref: 3
HOUSING
€ 31.00
4-1
0211205208
ref: 4-1
02112-05207
SCREW 5X20
€ 3.00
4-2
0211205207
ref: 4-2
SCREW
€ 3.00
5-1
3513845230
ref: 5-1
09160-05045
WASHER
€ 2.00
5-2
0916005003
ref: 5-2
09160-05045
WASHER (5.5X18X1)
€ 2.00
6
3513314A00
ref: 6
SPACER
€ 3.50
7
3513945230
ref: 7
CUSHION
€ 1.50
8
3513545900
ref: 8
NUT
€ 2.50
9-1
3515149200
ref: 9-1
35151-45900
SCREW,HEADLAMP ADJUST
€ 4.00
9-2
3515145900
ref: 9-2
SCREW
€ 4.00
10
3515449200
ref: 10
SPRING
€ 3.50
11
3513545600
ref: 11
NUT
€ 3.00
12
3513601A00
ref: 12
HOLDER,BULB
€ 6.00
13
3517301440
ref: 13
COVER,SOCKET
€ 10.00
14
0947112060
ref: 14
BULB(12V60/55W,H4)
€ 8.00
15
3515843400
ref: 15
CAP,SCREW
€ 2.00
16
0932009018
ref: 16
CUSHION
€ 2.00
17
0918006138
ref: 17
SPACER(6.3X9.1X11.5)
€ 1.00
18-1
0911606011
ref: 18-1
09116-06115
BOLT 6X20
€ 2.00
18-2
0911606167
ref: 18-2
BOLT(6X20)
€ 2.00
19
3595014A00
ref: 19
REFLECTOR,REFLEX FR
€ 15.00
20-1
3595614D00
ref: 20-1
35956-14D01
BRACKET,REFLECTOR
€ 0.00
20-2
3595614D01
ref: 20-2
BRACKET,FRONT SIDE REFLECTOR
€ 0.00
20-3
3595714D00
ref: 20-3
35957-14D01
BRACKET
€ 0.00
20-4
3595714D01
ref: 20-4
BRACKET,FR SIDE REFLECTOR,L
€ 0.00
