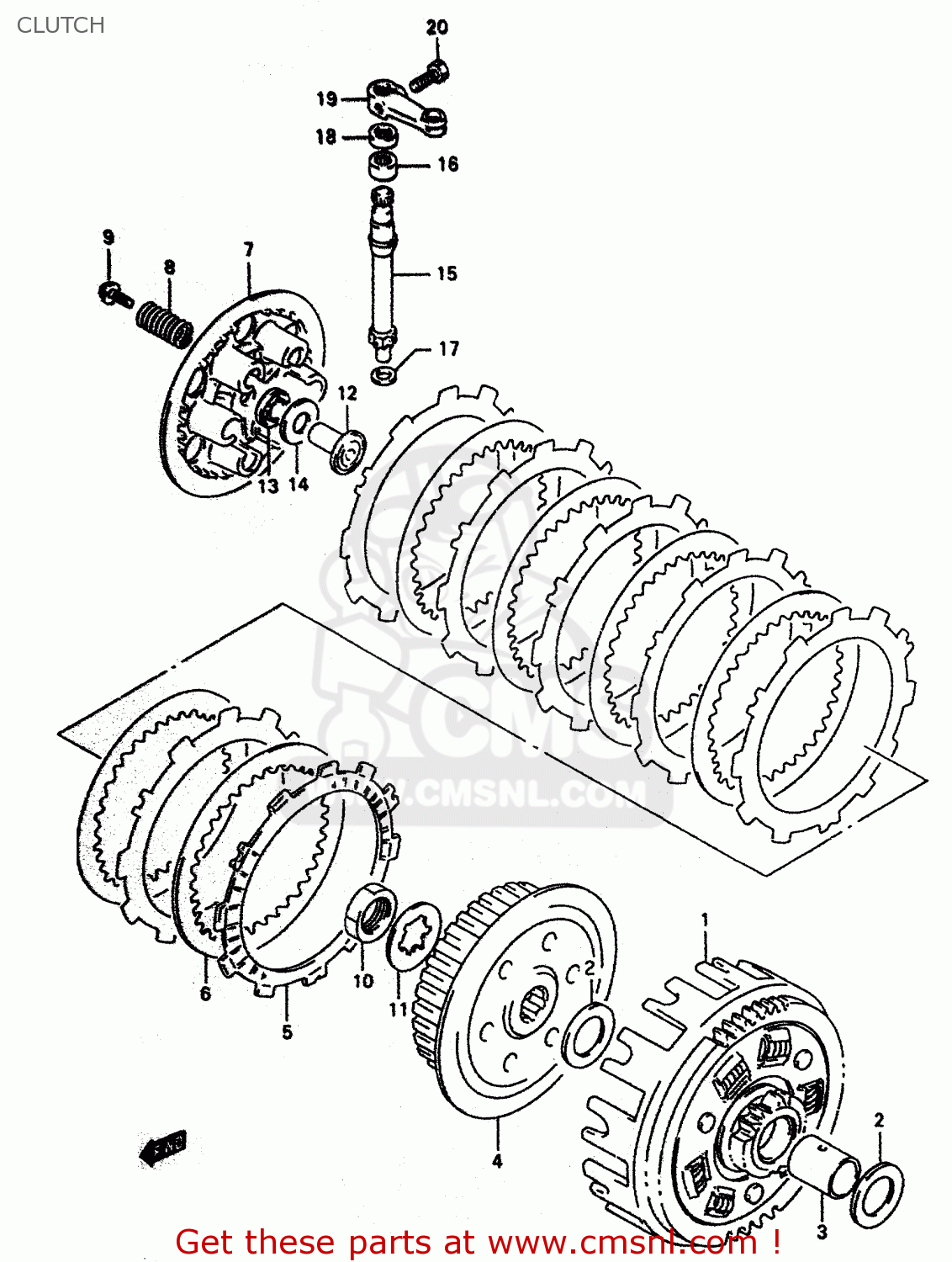

CLUTCH

ref

part #

description

quantity

1

2120015D21
ref: 1
NT:64/15

GEAR ASSY,PRI DRIVEN(64/15

€ 238.00

2

0821120363
ref: 2

WASHER

€ 3.50

3

0918020109
ref: 3

SPACER(20X25X29)

€ 15.50

4

2141014D00
ref: 4

HUB,CLUTCH SLEEVE

€ 114.00

5

2144112D01
ref: 5

PLATE,CLUTCH DRIVE (NAS)

€ 16.50

6

2145128C31
ref: 6

PLATE,CLUTCH DRIVEN(T:1.6) (NAS)

€ 10.50

7

2146200B02
ref: 7

DISC,CLUTCH PRESSURE

€ 40.00

8

0944015014
ref: 8

SPRING

€ 4.00

9

0911605003
ref: 9

BOLT 5X16

€ 2.50

10

0914020001
ref: 10

NUT

€ 3.50

11

0916720009
ref: 11

WASHER,LOCK

€ 3.00

12

2316500B01
ref: 12

RACK,CLUTCH RELEASE

€ 17.00

13

0926310016
ref: 13

BEARING(10X24X2)

€ 7.00

14

0821110241
ref: 14

WASHER

€ 2.50

15

2326114D02
ref: 15

PINION,CLUTCH RELEASE

€ 36.00

16

0926312024
ref: 16

BEARING(12X16X10)

€ 11.00

17

0918108139
ref: 17

SHIM(8.8X14X1)

€ 1.50

18

0928510004
ref: 18

SEAL,OIL(10X17X5)

€ 3.50

19

2327120901
ref: 19

ARM,CLUTCH RELEASE

€ 20.50

20

0150006163
ref: 20

BOLT

€ 2.00
