MAGNETO

DR350 1999 (X)

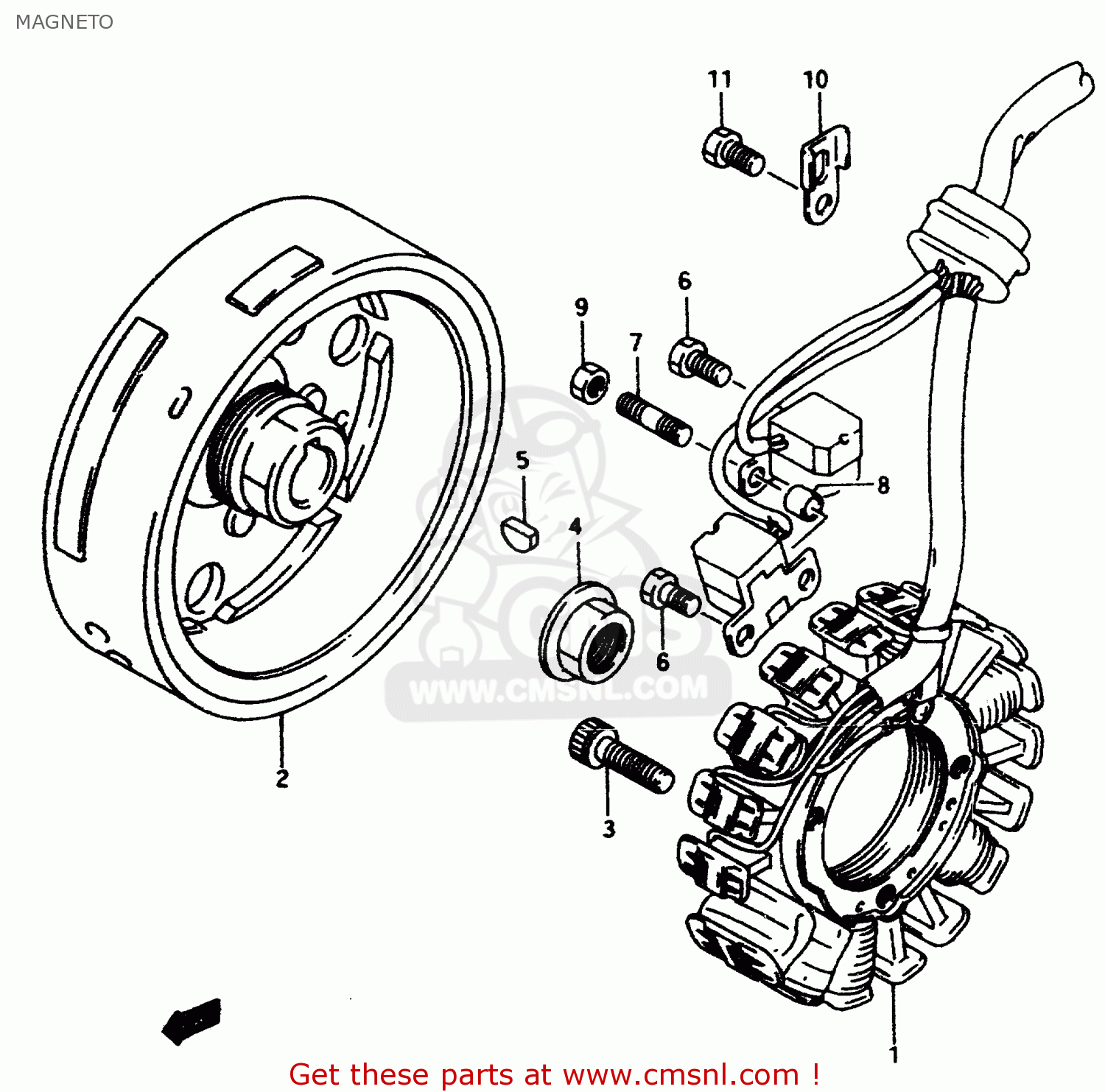

Magneto diagram DR350 1999 (X)

MAGNETO DR350 1999 (X)

MAGNETO DR350 1999 (X)

prices are in EUR

ref

part #

description

quantity

1

3210114D20
ref: 1

STARTER ASSY

€ 504.00

2

3210214D30
ref: 2

ROTOR

€ 621.00

3

0713006253
ref: 3

BOLT,CL.COVER

€ 3.00

4

0915914015
ref: 4

NUT

€ 3.00

5

0942004008
ref: 5

KEY

€ 3.50

6

0910005019
ref: 6

BOLT(5X10)

€ 1.50

7

0910805014
ref: 7

BOLT,STUD(5X18)

€ 2.00

8

0918005053
ref: 8

SPACER(5.5X9.5X6.5)

€ 2.00

9

0831000053
ref: 9

NUT

€ 2.50

10

3149745000
ref: 10

CLAMP,GENERATOR LEAD WIRE

€ 1.50

11

0910005019
ref: 11

BOLT(5X10)

€ 1.50
