FUEL COCK

DR350 1999 (X)

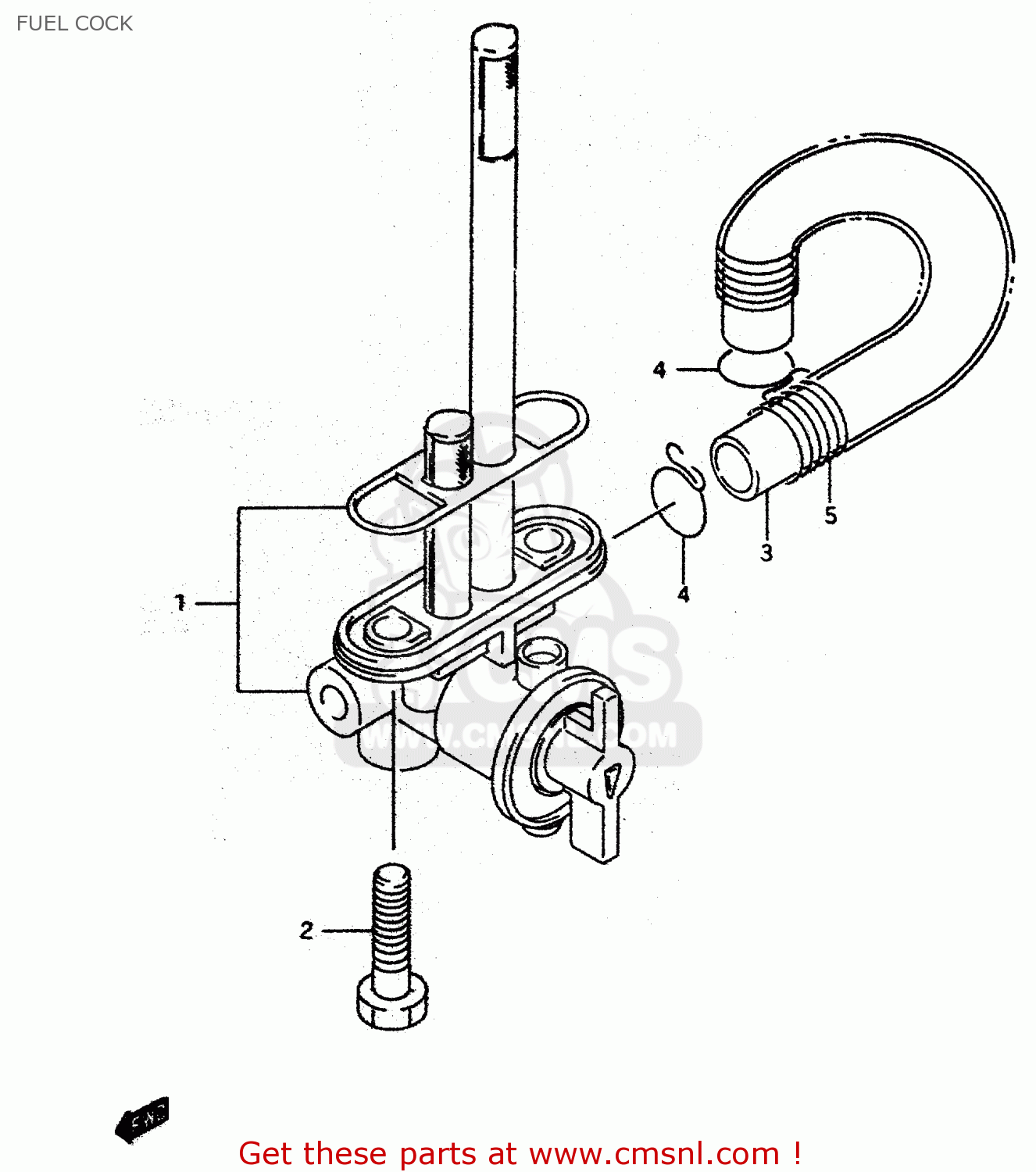

Fuel cock diagram DR350 1999 (X)

FUEL COCK DR350 1999 (X)

FUEL COCK DR350 1999 (X)

prices are in EUR

ref

part #

description

quantity

1

4430014D00
ref: 1

COCK ASSY,FUEL

€ 81.00

2

0211236163
ref: 2

SCREW

€ 2.50

3

0935270103600
ref: 3

HOSE(7X10.2X600)

€ 8.00

4

0940110401
ref: 4

CLIP

€ 1.50

5

0944013031
ref: 5

SPRING

€ 2.50
