STAND-REAR BRAKE

DR350 1999 (X)

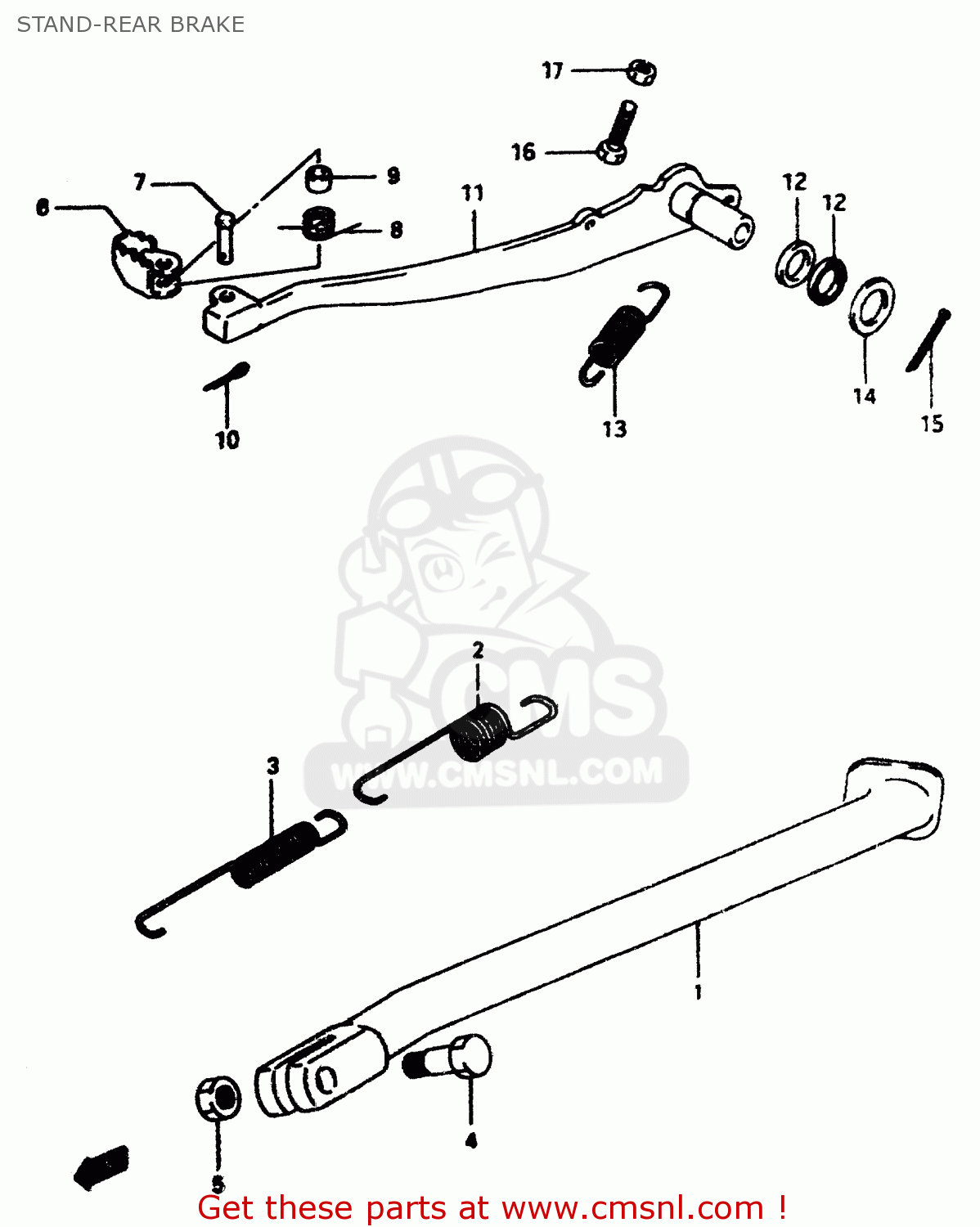

Stand-rear brake diagram DR350 1999 (X)

STAND-REAR BRAKE DR350 1999 (X)

STAND-REAR BRAKE DR350 1999 (X)

prices are in EUR

ref

part #

description

quantity

1

4231014D20019
ref: 1

STAND,PROP(BLACK)

€ 93.50

2

0944319010
ref: 2

SPRING

€ 6.00

3

0944312036
ref: 3

SPRING

€ 7.50

4

0911110047
ref: 4

BOLT(10X30)

€ 4.50

5

0915910097
ref: 5

NUT

€ 5.00

6

4311014130
ref: 6

PEDAL,BRAKE

€ 6.00

7

0922006038
ref: 7

PIN

€ 0.00

8

0944411005
ref: 8

SPRING

€ 3.00

9

0918006257
ref: 9

SPACER(6.5X9X6.5)

€ 2.50

10

0411120158
ref: 10

PIN

€ 1.50

11

4312015D00
ref: 11

ARM,BRAKE PEDAL

€ 54.00

12

0928415006
ref: 12

SEAL,OIL(15X21X3)

€ 3.50

13

0944314025
ref: 13

SPRING

€ 6.50

14

0916015002
ref: 14

WASHER(15.5X26X2.3)

€ 2.00

15

0411130308
ref: 15

COTTER PIN

€ 1.50

16

0910006009
ref: 16

BOLT(6X23)

€ 1.50

17

0831000063
ref: 17

NUT 6MM

€ 2.00
