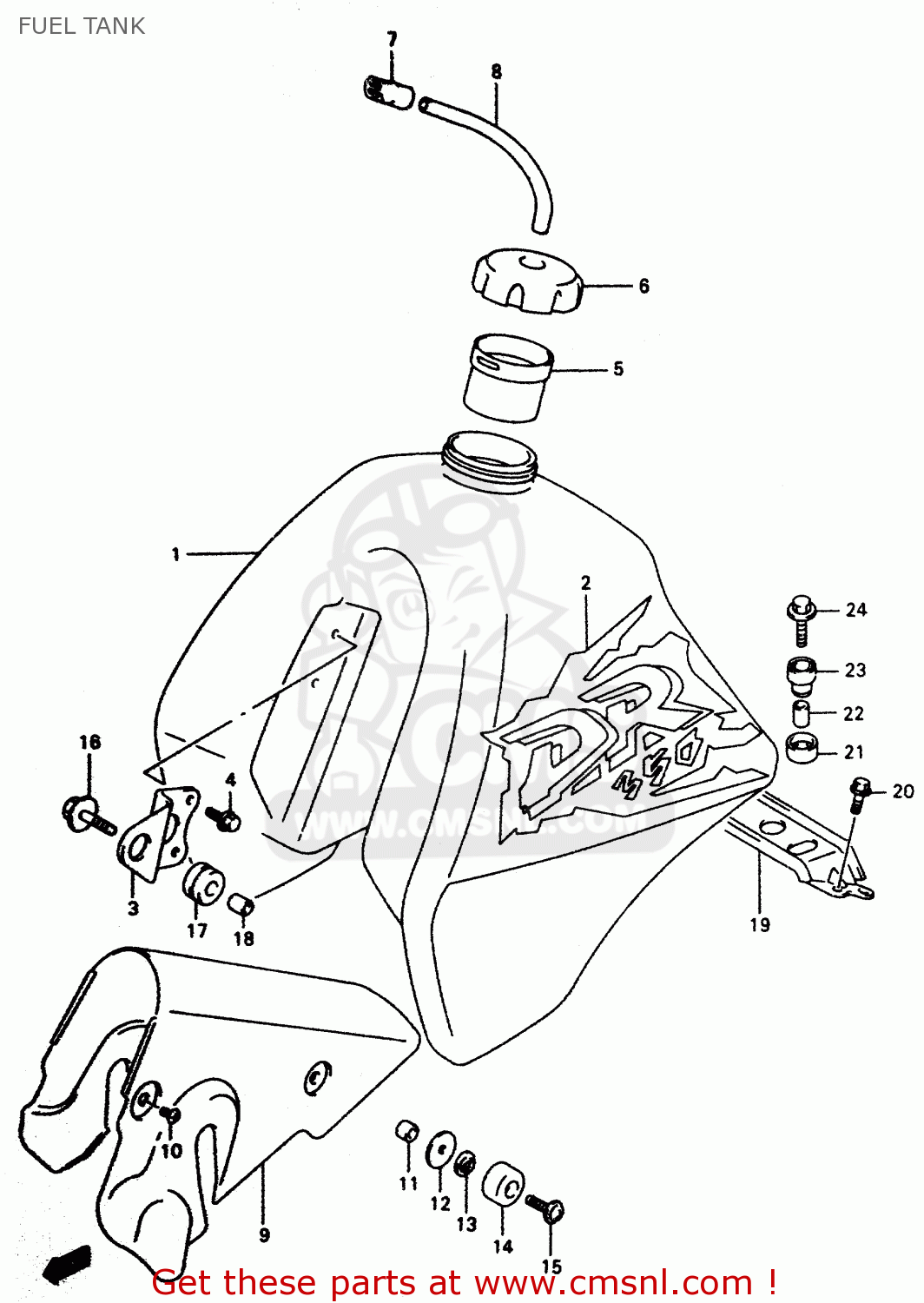

FUEL TANK

ref

part #

description

quantity

1

4410014EU030H
ref: 1

TANK ASSEMBLY,FUEL

€ 720.50

2

6811014E30Y2G
ref: 2

TAPE SET,FUEL TANK

€ 0.00

3

4413114D10
ref: 3

BRACKET,FUEL TANK,FRONT

€ 23.00

4

0154706123
ref: 4

BOLT

€ 2.00

5

4419919A00
ref: 5

TUBE,FILLER INLET

€ 4.00

6

4420019A01
ref: 6

CAP ASSY,FUEL TANK

€ 40.00

7

4448640200
ref: 7

CLAMP,BREATHER HOSE

€ 2.50

8

0935250823600
ref: 8

HOSE(5X8.2X600)

€ 13.00

9

4913114D00
ref: 9

HEAT SHIELD,FUEL TANK

€ 16.00

10

0156005103
ref: 10

BOLT

€ 0.00

11

0918006122
ref: 11

SPACER(6.1X14X7.2)

€ 3.00

12

0916006096
ref: 12

WASHER (6.5X26X2.3)

€ 1.50

13

0916906040
ref: 13

WASHER

€ 2.00

14

4514914D00
ref: 14

CUSHION

€ 3.00

15

0211216253
ref: 15

SCREW

€ 2.50

16

0911808119
ref: 16

BOLT(8X25)

€ 3.00

17

0932012053
ref: 17

CUSHION

€ 7.50

18

0918008190
ref: 18

SPACER(8.5X12X12.5)

€ 4.00

19

4415114D00
ref: 19

BRACKET,FUEL TANK RR

€ 8.00

20

0155006103
ref: 20

BOLT

€ 2.50

21

0932014013
ref: 21

CUSHION

€ 3.00

22

0918006271
ref: 22

SPACER(6.5X9X18)

€ 2.00

23

0932010020
ref: 23

CUSHION

€ 4.00

24

0911606172
ref: 24

BOLT(6X30)

€ 2.50
