CRANKCASE COVER
DR350SH 1992 (N) (E04 E18 E21 E22)

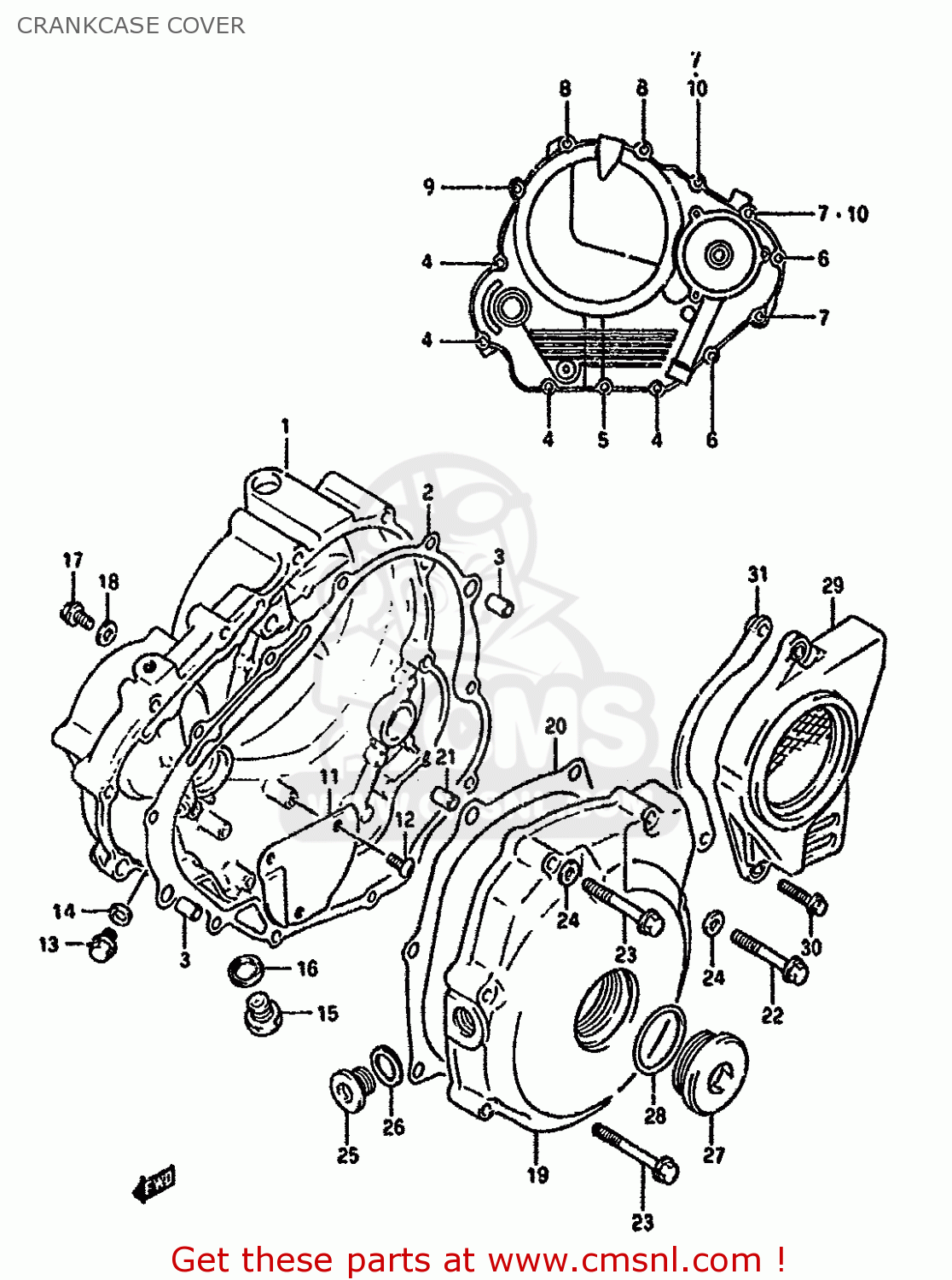

Crankcase cover diagram DR350SH 1992 (N) (E04 E18 E21 E22)
CRANKCASE COVER DR350SH 1992 (N) (E04 E18 E21 E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
1134114D03
ref: 1-1
MODEL L/M/N-11341-14
COVER,CLUTCH
€ 261.00
1-2
1134114D06
ref: 1-2
MODEL P/R
COVER,CLUTCH
€ 261.00
2
1148214D02
ref: 2
GASKET,CLUTCH COVER (NAS)
€ 24.50
3
0421109149
ref: 3
PIN
€ 2.00
4-1
0154706257
ref: 4-1
MODEL L/M/N/P
BOLT
€ 2.50
4-2
0154706253
ref: 4-2
MODEL R
SCREW
€ 2.50
5-1
0154706307
ref: 5-1
MODEL L/M/N/P
BOLT
€ 2.50
5-2
0154706303
ref: 5-2
MODEL R
BOLT,G/S SWITC
€ 3.00
6-1
0154706357
ref: 6-1
MODEL L/M/N/P
BOLT
€ 2.50
6-2
0154706353
ref: 6-2
MODEL R
BOLT
€ 3.00
7-1
0154706407
ref: 7-1
MODEL L/M/N/P
BOLT
€ 2.50
7-2
0154706403
ref: 7-2
MODEL R
BOLT
€ 3.00
8-1
0154706607
ref: 8-1
MODEL L/M/N/P
BOLT
€ 2.50
8-2
0154706603
ref: 8-2
MODEL R
BOLT
€ 3.50
9-1
0154706657
ref: 9-1
MODEL L/M/N/P
BOLT
€ 2.00
9-2
0154706653
ref: 9-2
MODEL R
BOLT
€ 2.00
10
0916806023
ref: 10
GASKET(5.8X13X1.2) (NAS)
€ 2.00
11
1134914D00
ref: 11
SEPARATOR,OIL RETURN
€ 4.50
12-1
0912505042
ref: 12-1
MODEL L/M/N/P
SCREW(5X10)
€ 2.50
12-2
0214205103
ref: 12-2
MODEL R
SCREW
€ 2.50
13
0910306078
ref: 13
BOLT(6X8)
€ 2.00
14
0916806004
ref: 14
GASKET(6.2X11X1).2 (NAS)
€ 1.50
15-1
0924814005
ref: 15-1
MODEL L/M/N
PLUG,14X12
€ 5.00
15-2
0924810007
ref: 15-2
MODEL P/R
PLUG(10X6.8)
€ 4.50
16-1
0916814004
ref: 16-1
MODEL L/M/N
GASKET(14X19.2X2) (NAS)
€ 2.50
16-2
0916810002
ref: 16-2
MODEL P/R
GASKET(10X14X3.6) (NAS)
€ 2.00
17
0912806043
ref: 17
SCREW (6X10)
€ 2.00
18
0916806023
ref: 18
GASKET(5.8X13X1.2) (NAS)
€ 2.00
19-1
1135114D02
ref: 19-1
MODEL L/M/N
COVER,MAGNETO
€ 92.00
19-2
1135114D10
ref: 19-2
MODEL P/R
COVER,MAGNETO
€ 189.00
20-1
1148314D01
ref: 20-1
MODEL L/M/N
GASKET,MAGNETO COVER (NAS)
€ 23.00
20-2
1148314D03
ref: 20-2
MODEL P/R
GASKET,MAGNETO COVER (NAS)
€ 23.00
21
0421109149
ref: 21
PIN
€ 2.00
22-1
0154706357
ref: 22-1
MODEL L/M/N
BOLT
€ 2.50
22-2
0154706357
ref: 22-2
MODEL P
BOLT
€ 2.50
22-3
0154706353
ref: 22-3
MODEL R
BOLT
€ 3.00
23-1
0154706457
ref: 23-1
MODEL L/M/N
BOLT
€ 2.50
23-2
0154706457
ref: 23-2
MODEL P
BOLT
€ 2.50
23-3
0154706453
ref: 23-3
MODEL R
BOLT
€ 3.00
24
0916806023
ref: 24
GASKET(5.8X13X1.2) (NAS)
€ 2.00
25
0924814005
ref: 25
PLUG,14X12
€ 5.00
26
0916814002
ref: 26
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
27
092593601620H
ref: 27
PLUG(SILVER)
€ 10.50
28
0928033004
ref: 28
O RING(D:3.1,ID:32.7)
€ 2.50
29
1136014D01
ref: 29
COVER,ENGINE SPROCKET
€ 84.00
30-1
0154706257
ref: 30-1
MODEL L/M/N/P
BOLT
€ 2.50
30-2
0154706253
ref: 30-2
MODEL R
SCREW
€ 2.50
31-1
2764014D01
ref: 31-1
MODEL L/M/N/P
PLATE,FR CHAIN GUIDE
€ 59.50
31-2
2764014D10
ref: 31-2
MODEL R
PLATE,FR CHAIN GUIDE
€ 14.50
