SEAT (MODEL R)
DR350SH 1992 (N) (E04 E18 E21 E22)

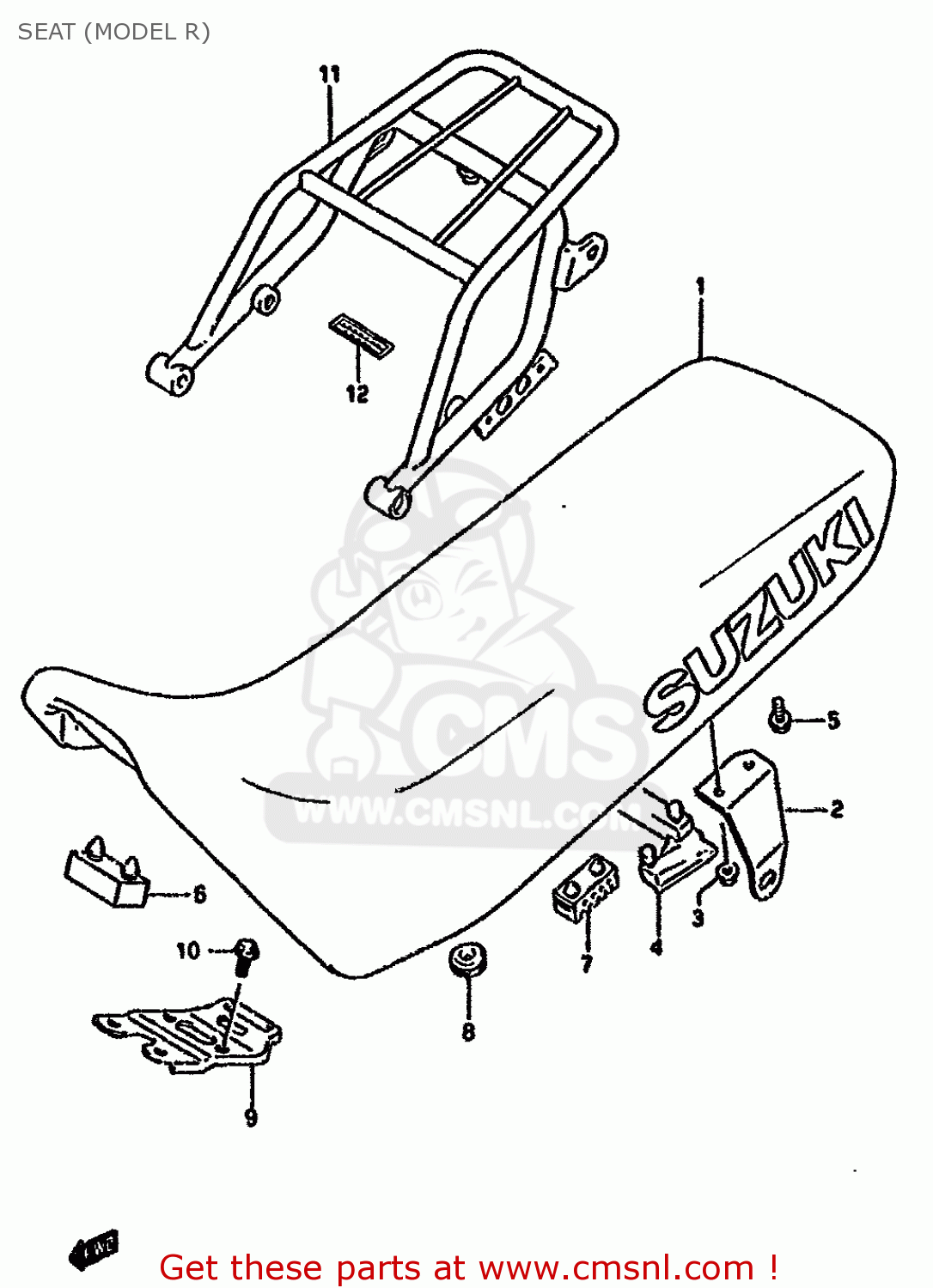

Seat (model r) diagram DR350SH 1992 (N) (E04 E18 E21 E22)
SEAT (MODEL R) DR350SH 1992 (N) (E04 E18 E21 E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510015D00G56
ref: 1-1
FOR C3P
SEAT SET
€ 279.50
1-2
4510015D0090D
ref: 1-2
FOR C3K
SEAT ASSY
€ 0.00
1-3
4510015D10G56
ref: 1-3
E4,E18,E21,E24,E34,E
SEAT SET
€ 279.50
1-4
4510015D1090D
ref: 1-4
E4,E18,E21,E24,E34,E
SEAT ASSY
€ 0.00
2-1
4511614D00
ref: 2-1
BRACKET,SEAT,R
€ 8.00
2-2
4511714D00
ref: 2-2
BRACKET,SEAT,L
€ 8.00
3
0831610063
ref: 3
NUT
€ 2.50
4
4525514D00
ref: 4
CUSHION
€ 30.00
5
0155006103
ref: 5
BOLT
€ 2.50
6
0932108006
ref: 6
CUSHION
€ 3.00
7
4514931300
ref: 7
CUSHION,SEAT(40X20X15)
€ 2.00
8
0932008013
ref: 8
CUSHION
€ 4.00
9-1
4512015D01
ref: 9-1
PLATE,SEAT FR HOOK
€ 16.50
9-2
4512014D00
ref: 9-2
E24
PLATE,SEAT FR HOOK
€ 12.00
10
0155008123
ref: 10
BOLT
€ 3.50
11
46310150131TS
ref: 11
OPT
CARRIER,SPORT (WHITE)
€ 0.00
12
6839114D00
ref: 12
OPT
LABEL,WARNING
€ 0.00
9-2
4512015D01
ref: 9-2
MODEL N/P
PLATE,SEAT FR HOOK
€ 16.50
9-3
4512014D00
ref: 9-3
E24
PLATE,SEAT FR HOOK
€ 12.00
10
0151708126
ref: 10
BOLT
€ 3.50
11-1
0110708125
ref: 11-1
MODEL L/M/N
BOLT
€ 1.50
11-2
0192408125
ref: 11-2
MODEL P
BOLT
€ 2.50
12
0832211084
ref: 12
WASHER
€ 1.50
13-1
4631015D110NF
ref: 13-1
OPT,MODEL L
CARRIER
€ 142.50
13-2
4631015D110RP
ref: 13-2
OPT,MODEL L
CARRIER
€ 154.50
13-3
4631015D130NF
ref: 13-3
OPT,MODEL M/N/P
CARRIER
€ 114.50
13-4
4631015D131AZ
ref: 13-4
OPT,MODEL M/N,DR350S
CARRIER,SPORT (YELLOW)
€ 618.00
13-5
46310150131TS
ref: 13-5
OPT,MODEL P
CARRIER,SPORT (WHITE)
€ 0.00
