FUEL COCK
DR350SH 1992 (N) (E04 E18 E21 E22)

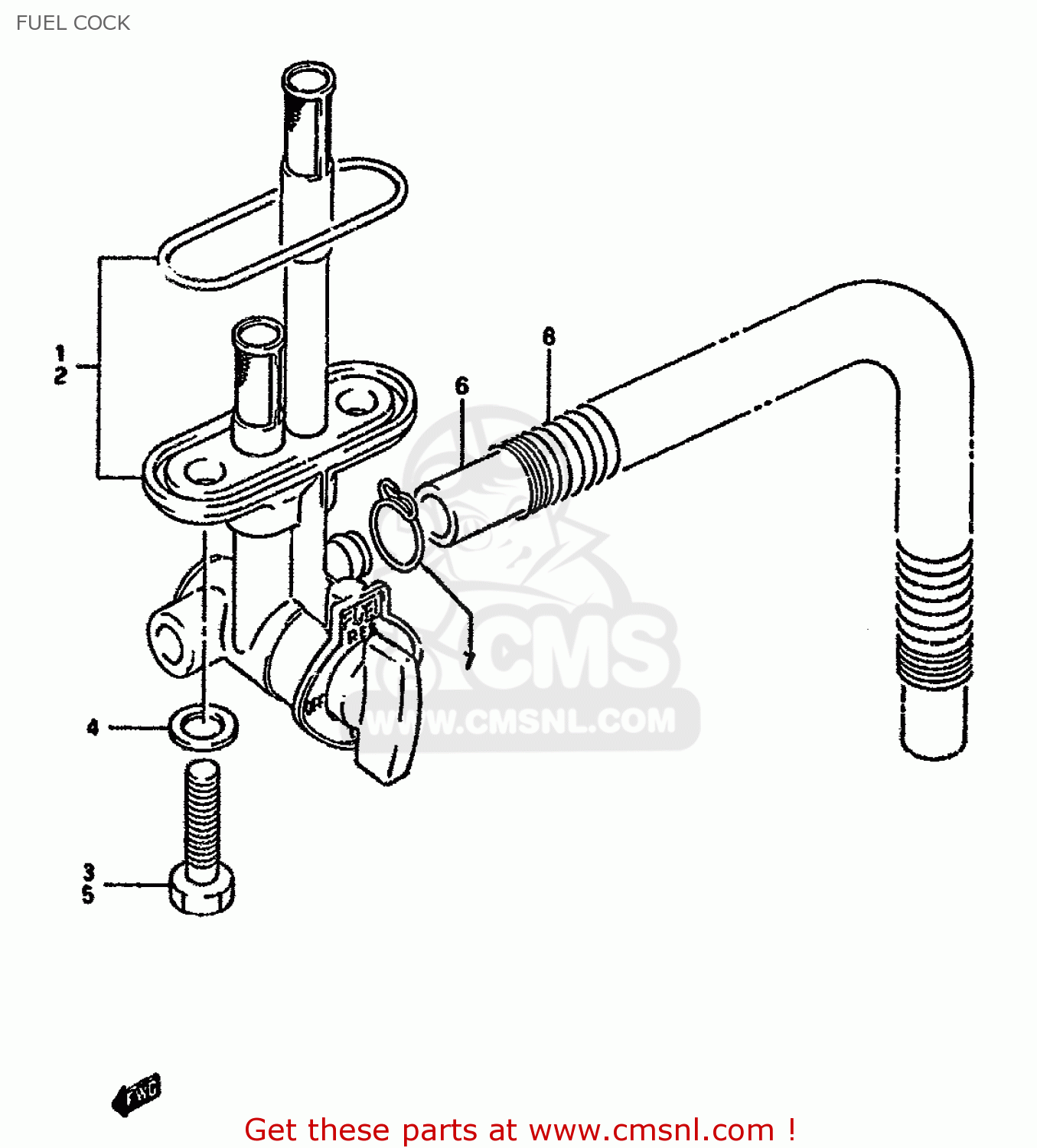

Fuel cock diagram DR350SH 1992 (N) (E04 E18 E21 E22)
FUEL COCK DR350SH 1992 (N) (E04 E18 E21 E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
4430015D00
ref: 1-1
MODEL L/M/N
COCK ASSY,FUEL
€ 79.00
1-2
4430015D20
ref: 1-2
MODEL P/R
COCK ASSY,FUEL
€ 79.00
2
4430014D00
ref: 2
E24
COCK ASSY,FUEL
€ 81.00
3
0912806006
ref: 3
BOLT(6X20)
€ 2.00
4
0916806026
ref: 4
GASKET(6.4X11.5X0.8) (NAS)
€ 3.50
5
0211236168
ref: 5
E24
SCREW
€ 2.00
6-1
0935270103300
ref: 6-1
HOSE
€ 8.00
6-2
0935270103300
ref: 6-2
E24
HOSE
€ 8.00
7
0940110401
ref: 7
CLIP
€ 1.50
8-1
0944013016
ref: 8-1
SPRING
€ 14.50
8-2
0944013031
ref: 8-2
E24
SPRING
€ 2.50
