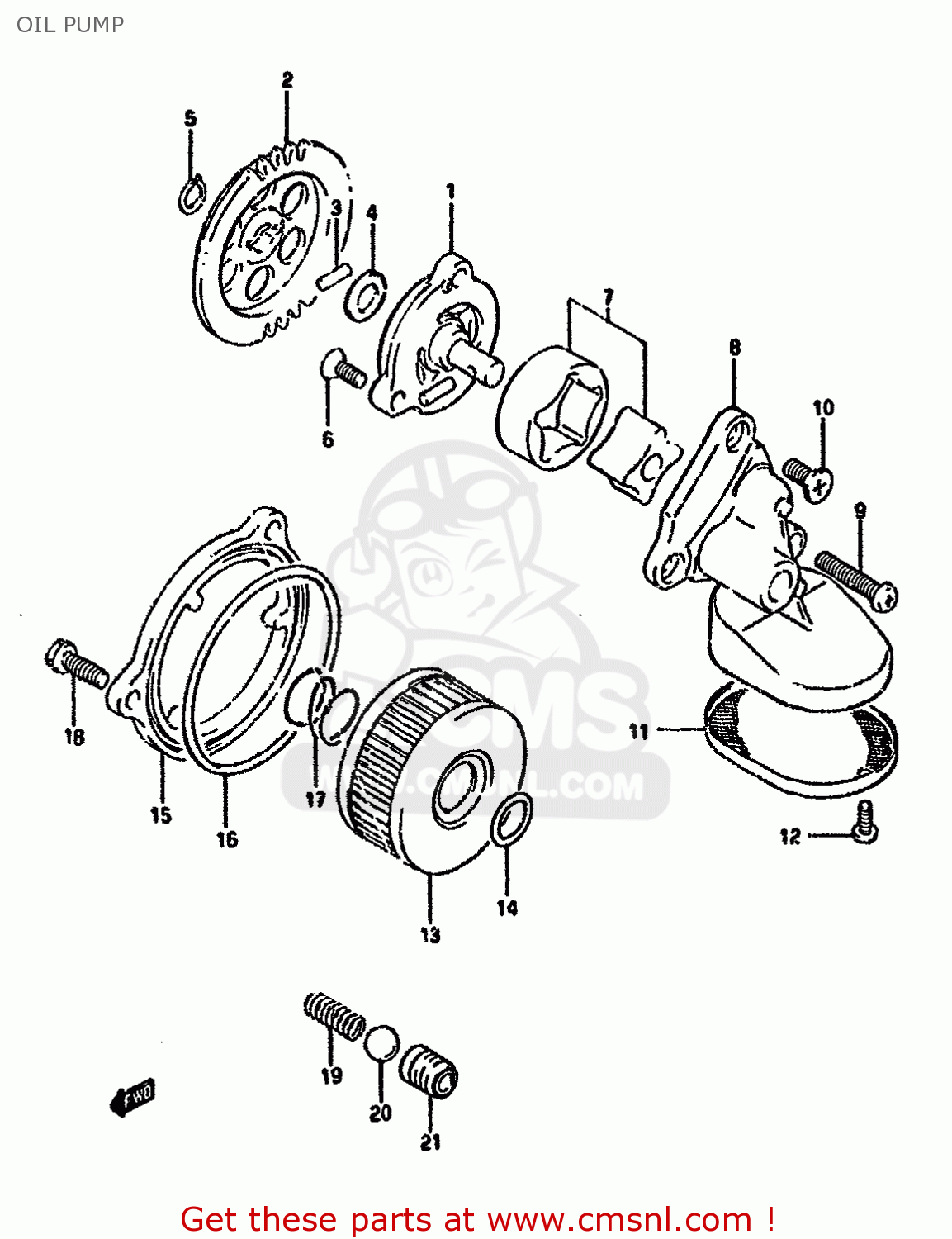

OIL PUMP

ref

part #

description

quantity

1

1640014D01
ref: 1

PUMP ASSY,ENGINE OIL NO.1

€ 164.50

2

1633114D01
ref: 2

GEAR,OIL PUMP DRIVEN (N

€ 30.00

3

0926104009
ref: 3

PIN(4X15.8)

€ 1.50

4

0822110185
ref: 4

SHIM

€ 2.00

5

0833131106
ref: 5

CIRCLIP,10MM

€ 2.00

6

0212206166
ref: 6

SCREW M6X1X16

€ 2.00

7

1641014D00
ref: 7

ROTOR SET,OIL PUMP,NO.2

€ 45.00

8

1643114D01
ref: 8

COVER,OIL PUMP NO.2

€ 73.50

9

0211206306
ref: 9

SCREW,6X30

€ 2.50

10

0212206166
ref: 10

SCREW M6X1X16

€ 2.00

11

1652014D00
ref: 11

STRAINER,OIL PUMP NO.2

€ 11.00

12-1

0211205106
ref: 12-1
MODEL L/M/N/P

SCREW 5X10

€ 2.00

12-2

0211205103
ref: 12-2
MODEL R

SCREW

€ 2.00

13

1651038240
ref: 13

FILTER ASSY,ENGINE OIL

€ 7.50

14

0928016005
ref: 14

O RING(D:2.4,ID:15.8)

€ 1.50

15

1651214D00
ref: 15

CAP,OIL FILTER

€ 23.50

16

0928072001
ref: 16

O RING(D:2.4,ID:73)

€ 5.00

17

0944021004
ref: 17

SPRING

€ 13.00

18-1

0154706207
ref: 18-1
MODEL L/M/N/P

BOLT

€ 2.50

18-2

0154706203
ref: 18-2
MODEL R

SCREW

€ 2.50

19

0944007073
ref: 19
MODEL P/R

SPRING

€ 4.00

20

0611112004
ref: 20
MODEL P/R

BALL

€ 1.50

21

1644214D00
ref: 21
MODEL P/R

SEAT,OIL CHECK VALVE

€ 28.50

all assemblies
