FRONT MASTER CYLINDER (DR350SHN/SHP/SHR)

DR350SH 1992 (N) (E04 E18 E21 E22)

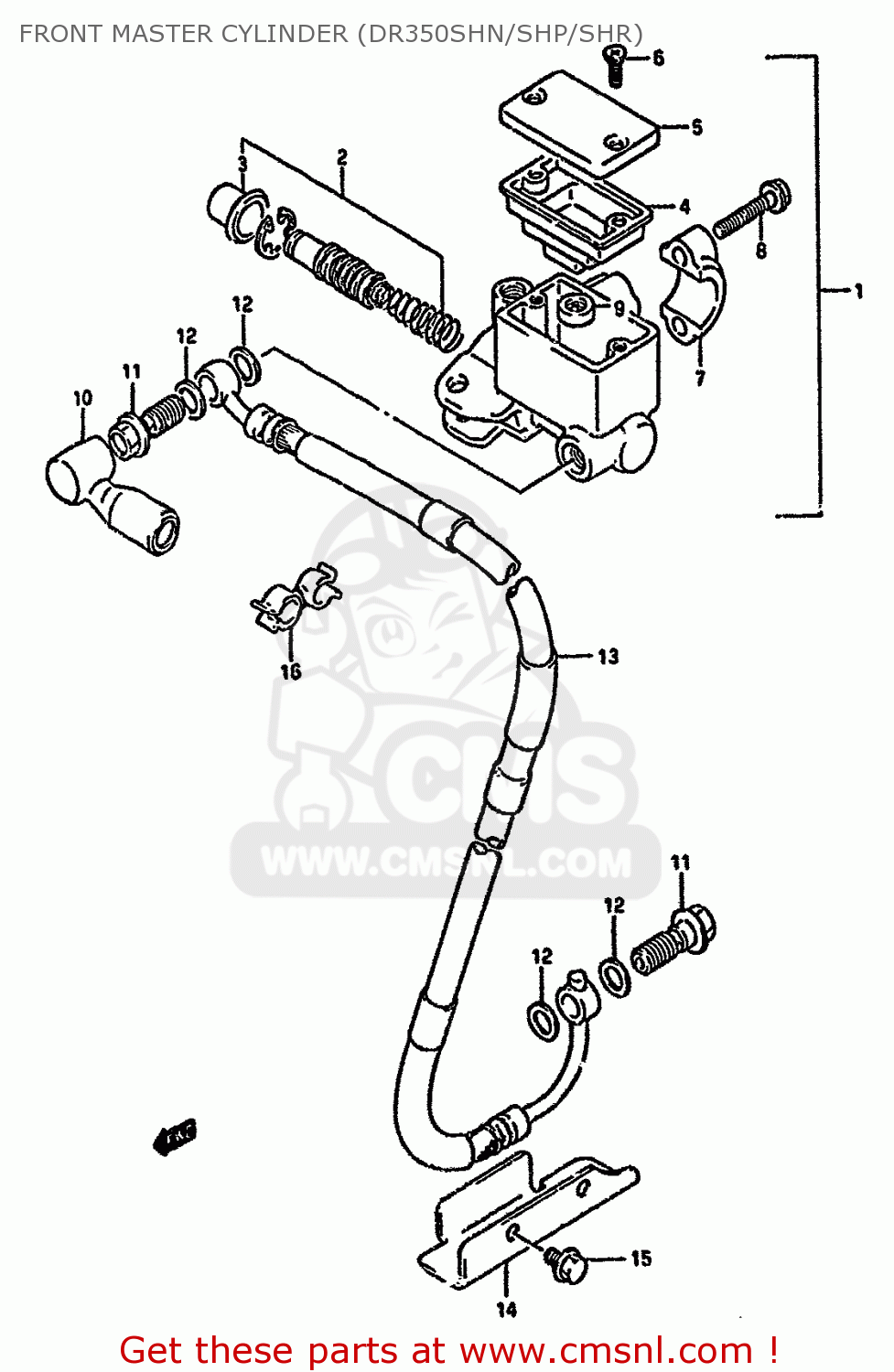

Front master cylinder (dr350shn/shp/shr) diagram DR350SH 1992 (N) (E04 E18 E21 E22)

prices are in EUR

ref

part #

description

quantity

5960003D00
ref: 1

CYLINDER ASSEMBLY,FRONT MASTER

€ 175.50

6960038810
ref: 2

PISTON/CUP SET

€ 42.50

5966644300
ref: 3

BOOT

€ 6.00

5966744B00
ref: 4

DIAPHRAGM

€ 8.00

5966903D00
ref: 5

CAP

€ 14.00

0212204128
ref: 6

SCREW 4X12

€ 2.00

5967103D00
ref: 7

HOLDER

€ 13.00

5967527C00
ref: 8

BOLT

€ 2.50

5974814500
ref: 9

SEPARATOR

€ 6.00

5971104700
ref: 10
DR350SHN/SHP

BOOT,MASTER CYLINDER

€ 14.50

11-1

0936010017
ref: 11-1
DR350SHN/SHP

BOLT UNION

€ 6.50

11-2

0936010039
ref: 11-2
DR350SHR

BOLT UNION

€ 6.50

0916110009
ref: 12

WASHER(10X15X1.5)

€ 2.00

5948014D10
ref: 13

HOSE,FRONT BRAKE

€ 162.50

5928108D00
ref: 14

PROTECTOR,FRONT BRAKE HOSE

€ 0.00

15-1

0151706108
ref: 15-1
DR350SHN/SHP

BOLT

€ 2.50

15-2

0155006103
ref: 15-2
DR350SHR

BOLT

€ 2.50

0940800145
ref: 16

CLIP

€ 3.50
