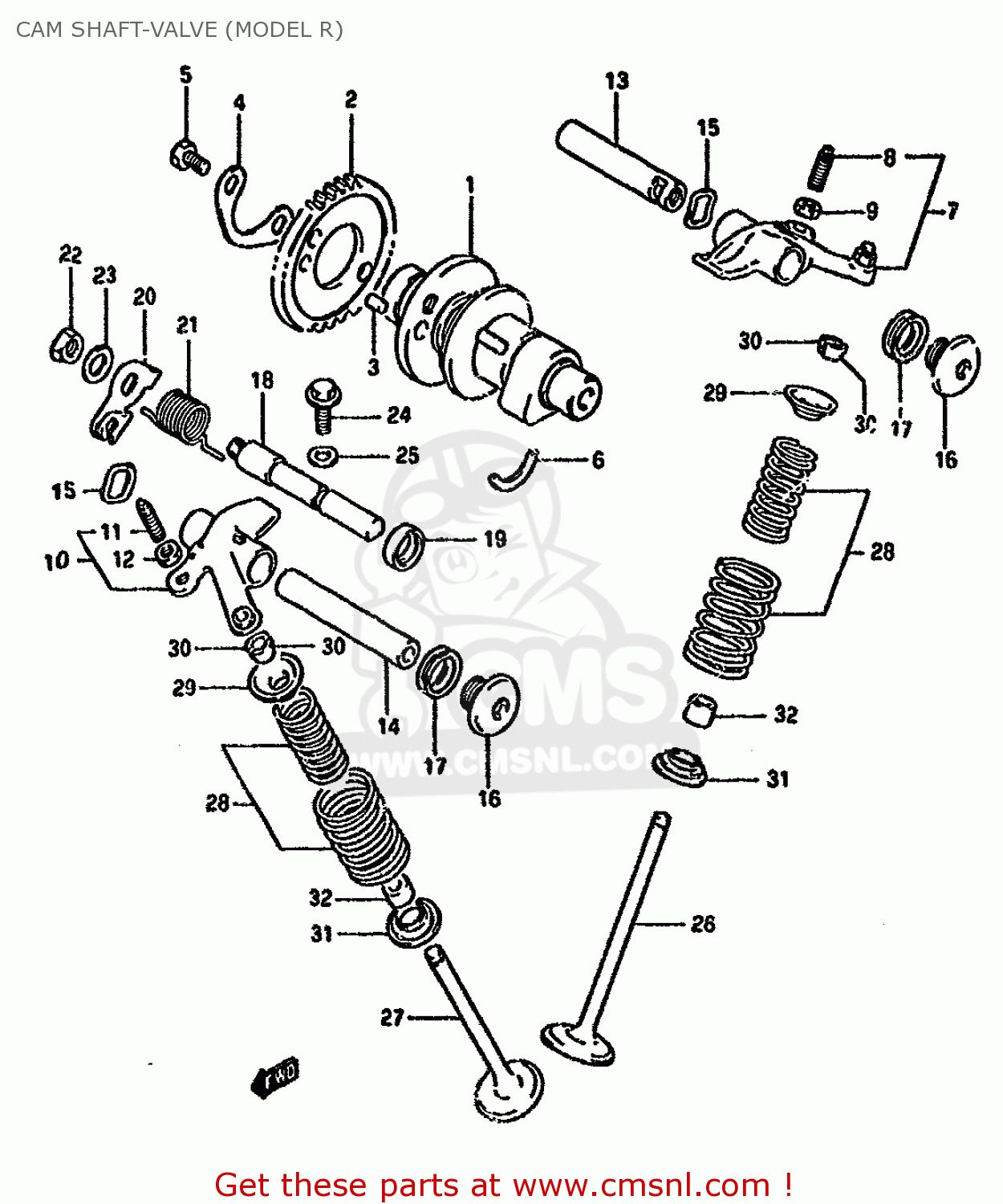

CAM SHAFT-VALVE (MODEL R)

ref

part #

description

quantity

1

1271014D50
ref: 1

SHAFT COMP,CAM

€ 589.50

2

1274114D50
ref: 2

SPROCKET,CAMSHAFT

€ 37.50

3

0926105005
ref: 3

PIN(5X8)

€ 1.50

4

1274744B00
ref: 4

WASHER,SPROCKET

€ 2.00

5

0911106032
ref: 5

BOLT(6X10.5)

€ 2.00

6

0939022002
ref: 6

C RING

€ 2.00

7

1284014D50
ref: 7

ARM,VALVE ROCKER,INTAKE

€ 93.00

8

1284217C50
ref: 8

SCREW,TAPPET ADJUSTING

€ 13.50

9

1284327A00
ref: 9

NUT,TAPPET ADJUSTING

€ 3.00

10

1285014D50
ref: 10

ARM,VALVE ROCKER EXHAUST

€ 101.50

11

1284217C50
ref: 11

SCREW,TAPPET ADJUSTING

€ 13.50

12

1284327A00
ref: 12

NUT,TAPPET ADJUSTING

€ 3.00

13

1286114D50
ref: 13

SHAFT,VALVE ROCKER ARM INTAKE

€ 20.00

14

1287114D50
ref: 14

SHAFT,VALVE ROCKER ARM EXHAUST

€ 18.00

15

0916412018
ref: 15

WASHER

€ 1.50

16

0924814005
ref: 16

PLUG,14X12

€ 5.00

17

0916814002
ref: 17

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

18

1294114D02
ref: 18

SHAFT,DECOMP

€ 26.00

19

0928210014
ref: 19

SEAL,OIL(10X17X6)

€ 6.50

20

1294214D00
ref: 20

LEVER,DECOMPRESSION SHAFT

€ 3.00

21

0944818028
ref: 21

SPRING

€ 3.00

22

0831000083
ref: 22

NUT

€ 1.50

23

0832201083
ref: 23

WASHER

€ 1.50

24

0155006163
ref: 24

BOLT

€ 2.50

25

0916806026
ref: 25

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

26

1291114D01
ref: 26

VALVE,INTAKE

€ 25.00

27

1291214D01
ref: 27

VALVE,EXHAUST

€ 45.50

28

1292006B00
ref: 28

SPRING SET,VALVE

€ 14.00

29

1293127A01
ref: 29

RETAINER,VALVE SPRING

€ 5.50

30

1293227A00
ref: 30

COTTER VALVE

€ 2.50

31

1293381400
ref: 31

SEAT,VALVE SPRING

€ 4.00

32

0928905011
ref: 32

SEAL,OIL(5X10X9.7)

€ 6.00

32

0928905011
ref: 32

SEAL,OIL(5X10X9.7)

€ 6.00
