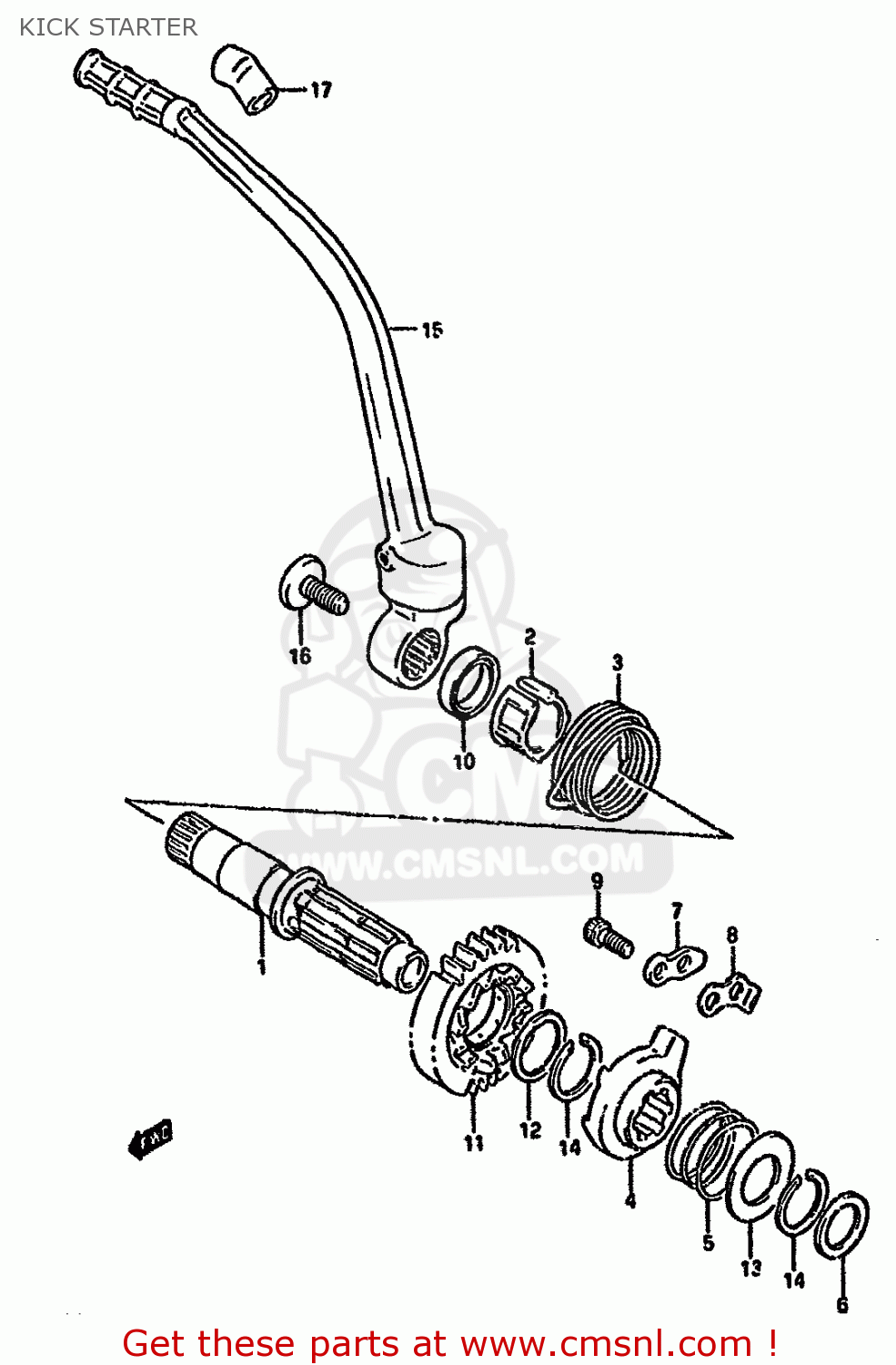

KICK STARTER

ref

part #

description

quantity

1

2621114D02
ref: 1

SHAFT,KICK STARTER

€ 85.50

2

2622122A00
ref: 2

GUIDE,KICK STARTER SFT SPRING

€ 7.00

3

0944850001
ref: 3

SPRING

€ 10.00

4-1

2623122A10
ref: 4-1
MODEL L/M

STARTER,KICK

€ 47.50

4-2

2623114D20
ref: 4-2
MODEL N/P/R

STARTER,KICK

€ 41.50

5

0944032002
ref: 5

SPRING

€ 2.00

6

0821117261
ref: 6

WASHER,THRUST

€ 3.00

7

2623214500
ref: 7

GUIDE,KICK STARTER

€ 6.00

8

2623314500
ref: 8

STOPPER,KICK STARTER

€ 3.50

9

0910606071
ref: 9

BOLT,KICK START STOPPER

€ 2.50

10

0928320044
ref: 10

SEAL,OIL(20X27X6)

€ 8.00

11-1

2624014D10
ref: 11-1
MODEL L/M,-26240-14D

GEAR,KICK STARTER NO.2

€ 90.00

11-2

2624014D20
ref: 11-2
MODEL N/P/R

GEAR,KICK STARTER(NT:23)

€ 90.00

12

0821122281
ref: 12

SHIM

€ 4.00

13

0821122361
ref: 13

WASHER,THRUST

€ 3.50

14

0938022006
ref: 14

CIRCLIP

€ 3.00

15

2630014D10
ref: 15

LEVER ASSEMBLY,KICK STARTER

€ 350.00

16

0910608102
ref: 16

BOLT(8X14)

€ 7.00

17

2631214D00
ref: 17
MODEL M/N/P/R

COVER,KICK STARTER LEVER

€ 8.00

all assemblies
