FUEL TANK (MODEL R E24)

DR350SH 1993 (P) (E04 E18 E21 E22)

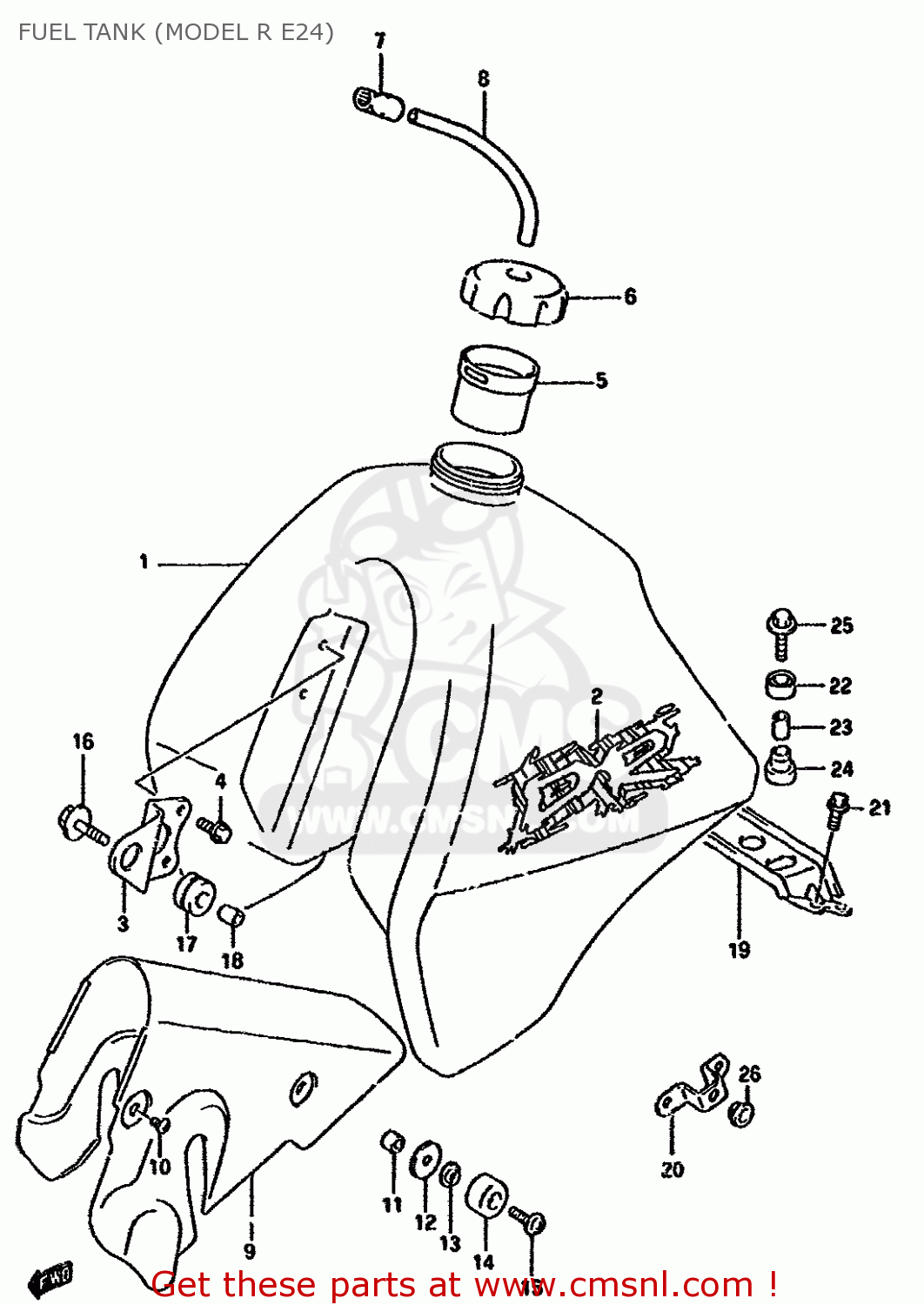

Fuel tank (model r e24) diagram DR350SH 1993 (P) (E04 E18 E21 E22)

FUEL TANK (MODEL R E24) DR350SH 1993 (P) (E04 E18 E21 E22)
FUEL TANK (MODEL R E24) DR350SH 1993 (P) (E04 E18 E21 E22)
FUEL TANK (MODEL R E24) DR350SH 1993 (P) (E04 E18 E21 E22)
prices are in EUR
ref
part #
description
quantity
1-1
4410014EA030H
ref: 1-1
FOR C3P
TANK ASSY,FUEL(WHITE)
€ 573.50
1-2
4410014EA028X
ref: 1-2
FOR C3K
TANK ASSY,FUEL (WHITE)
€ 0.00
2-1
6811015E30C58
ref: 2-1
FOR 30H
TAPE SET,FUEL TANK
€ 0.00
2-2
6811015E301WN
ref: 2-2
FOR 28X
TAPE SET,FUEL TANK
€ 0.00
3
4413114D10
ref: 3
BRACKET,FUEL TANK,FRONT
4413114D10
€ 23.00
4
0154706123
ref: 4
BOLT
0154706123
€ 2.00
5
4419919A00
ref: 5
TUBE,FILLER INLET
4419919A00
€ 4.00
6
4420019A01
ref: 6
CAP ASSY,FUEL TANK
4420019A01
€ 40.00
7
4448632101
ref: 7
CLAMP,FUEL TANK BREATHER HOSE
4448632101
€ 3.50
8
0935250823300
ref: 8
HOSE
0935250823300
€ 13.00
9
4913114D00
ref: 9
HEAT SHIELD,FUEL TANK
4913114D00
€ 16.00
10
0156005103
ref: 10
BOLT
€ 0.00
11
0918006122
ref: 11
SPACER(6.1X14X7.2)
0918006122
€ 3.00
12
0916006096
ref: 12
WASHER (6.5X26X2.3)
€ 1.50
13
0916906040
ref: 13
WASHER
0916906040
€ 2.00
14
4514914D00
ref: 14
CUSHION
4514914D00
€ 3.00
15
0211206303
ref: 15
SCREW 6X30
0211206303
€ 2.50
16
0911808119
ref: 16
BOLT(8X25)
0911808119
€ 3.00
17
0932012053
ref: 17
CUSHION
0932012053
€ 7.50
18
0918008147
ref: 18
SPACER (8.8X12X12.5)
0918008147
€ 4.00
19
4415114D00
ref: 19
BRACKET,FUEL TANK RR
4415114D00
€ 8.00
20
4416414D00
ref: 20
PLATE,FUEL TANK STOPPER
4416414D00
€ 3.50
21
0155006103
ref: 21
BOLT
0155006103
€ 2.50
22
0932014013
ref: 22
CUSHION
0932014013
€ 3.00
23
0918006072
ref: 23
SPACER
0918006072
€ 2.00
24
0932010020
ref: 24
CUSHION
0932010020
€ 4.00
25
0911606078
ref: 25
BOLT
0911606078
€ 2.50
26
0932110018
ref: 26
CUSHION
0932110018
€ 5.00
25
0932014013
ref: 25
CUSHION
0932014013
€ 3.00
26
0918006072
ref: 26
SPACER
0918006072
€ 2.00
27
0932010020
ref: 27
CUSHION
0932010020
€ 4.00
28
0911606078
ref: 28
BOLT
0911606078
€ 2.50
29
0932110018
ref: 29
CUSHION
0932110018
€ 5.00
