REAR MASTER CYLINDER
DR350SH 1993 (P) (E04 E18 E21 E22)

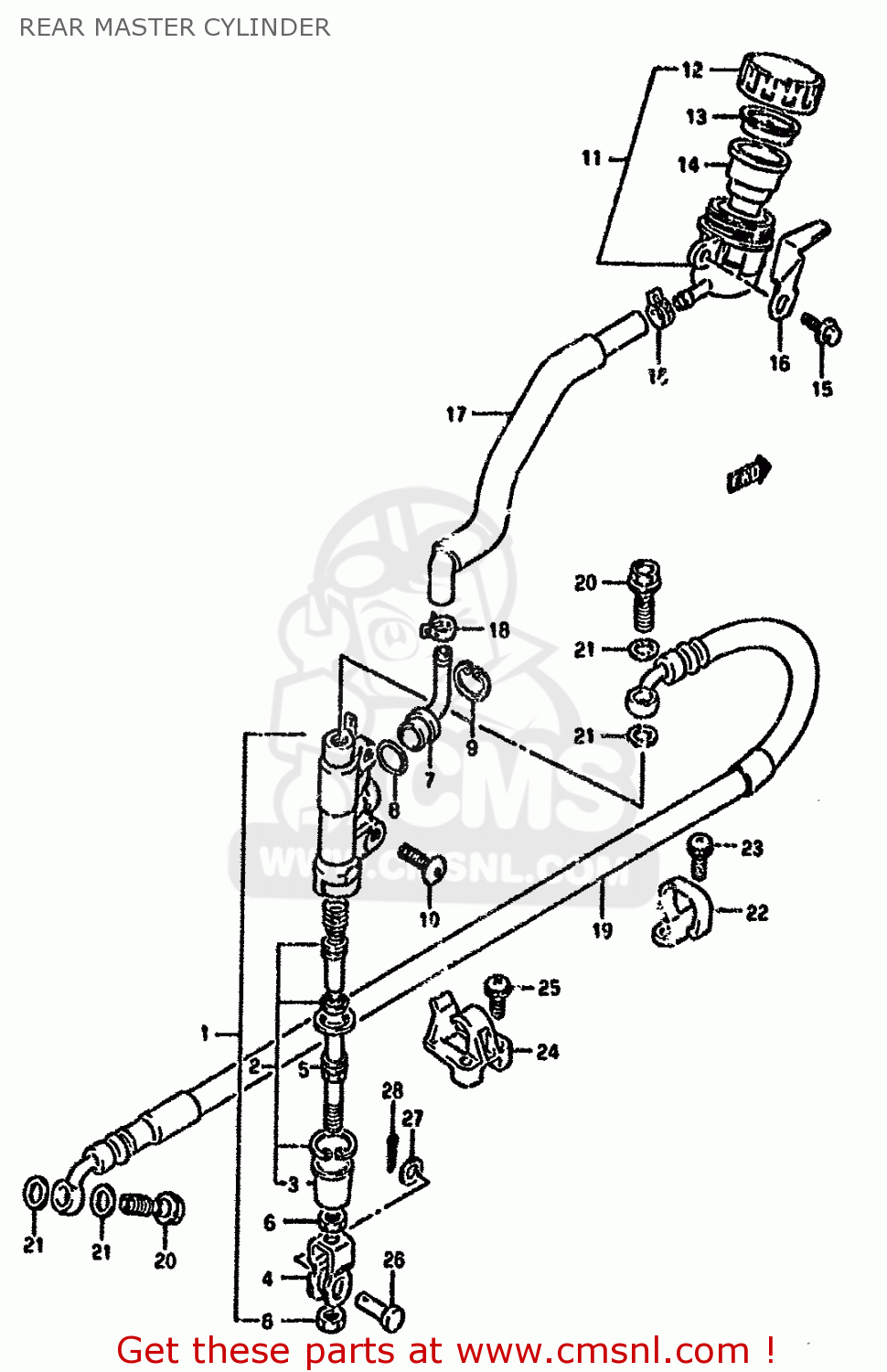

Rear master cylinder diagram DR350SH 1993 (P) (E04 E18 E21 E22)
REAR MASTER CYLINDER DR350SH 1993 (P) (E04 E18 E21 E22)
×
prices are in EUR
ref
part #
description
quantity
1
6960014D00
ref: 1
CYLINDER ASSEMBLY,REAR MASTER
€ 167.00
2
6960004820
ref: 2
PISTON/CUP SET
€ 31.00
3
6969100A00
ref: 3
BOOT
€ 3.50
4
6969200B21
ref: 4
YOKE
€ 13.50
5
6967048B00
ref: 5
ROD,PUSH
€ 20.50
6
6969305A00
ref: 6
NUT
€ 1.50
7
5967217C00
ref: 7
CONNECTOR
€ 8.00
8
6968634200
ref: 8
O RING
€ 3.50
9
6967400B20
ref: 9
CIRCLIP
€ 3.00
10-1
0913906024
ref: 10-1
-09139-06067
SCREW
€ 3.00
10-2
0913906067
ref: 10-2
SCREW(6X16)
€ 3.00
11
6974003D00
ref: 11
TANK ASSY,RR BRAKE RESERVOIR
€ 40.50
12
6966903D00
ref: 12
CAP
€ 11.00
13
6966800B20
ref: 13
PLATE
€ 4.00
14
6966700B20
ref: 14
DIAPHRAGM
€ 9.50
15-1
0151706164
ref: 15-1
MODEL L/M/N/P
BOLT
€ 2.50
15-2
0155006163
ref: 15-2
MODEL R
BOLT
€ 2.50
16
6974314D10
ref: 16
GUARD,RSVR TANK CAP
€ 4.50
17
6973014D00
ref: 17
HOSE COMP,RESERVOIR TANK
€ 26.00
18-1
0940112402
ref: 18-1
MODEL L/M/N/P
CLAMP
€ 2.50
18-2
0940112404
ref: 18-2
MODEL R
CLIP
€ 2.50
19
6948014D00
ref: 19
HOSE,RR BRAKE
€ 65.00
20-1
0936010017
ref: 20-1
MODEL L/M/N/P
BOLT UNION
€ 6.50
20-2
0936010039
ref: 20-2
MODEL R
BOLT UNION
€ 6.50
20-3
0936010040
ref: 20-3
MODEL R
BOLT UNION
€ 5.00
21
0916110009
ref: 21
WASHER(10X15X1.5)
€ 2.00
22
6119600B21
ref: 22
GUIDE,RR BRAKE HOSE
€ 6.00
23-1
0912505042
ref: 23-1
MODEL L/M/N/P
SCREW(5X10)
€ 2.50
23-2
0214205103
ref: 23-2
MODEL R
SCREW
€ 2.50
24
6119603D00
ref: 24
GUIDE,RR BRAKE HOSE
€ 3.00
25-1
0211235168
ref: 25-1
MODEL L/M/N/P
SCREW
€ 2.50
25-2
0211235163
ref: 25-2
MODEL R
SCREW
€ 2.50
26
0920008048
ref: 26
PIN(8X20)
€ 3.00
27
0916008074
ref: 27
WASHER(8.5X13X1.6)
€ 2.50
28
0411125158
ref: 28
PIN 20X15
€ 1.50
