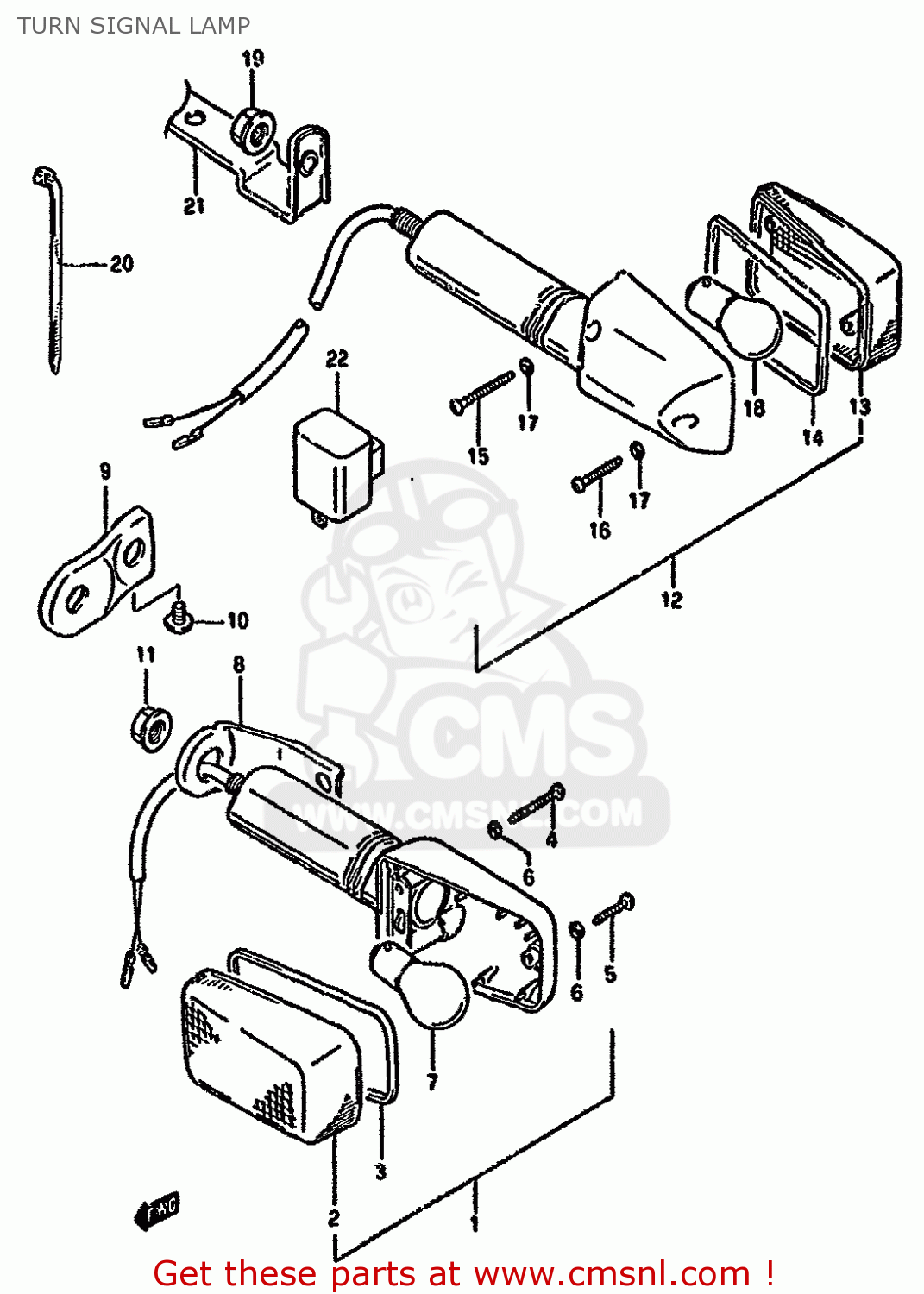

TURN SIGNAL LAMP

ref

part #

description

quantity

1

3560101D10
ref: 1

LAMP ASSY,FR TURN SIGNAL

€ 70.50

2

3561217C20
ref: 2

LENS

€ 6.50

3

3561327A00
ref: 3

GASKET (NAS)

€ 3.00

4

3562327A00
ref: 4

SCREW(3X30)

€ 1.50

5

3572540511
ref: 5

SCREW

€ 1.50

6

3562727A02
ref: 6

GASKET (NAS)

€ 1.50

7

0947112045
ref: 7

BULB(12V21W)

€ 5.00

8-1

3567014D11
ref: 8-1
MODEL L/M/N/P

BRACKET,FRONT TURN SIGNAL

€ 11.00

8-2

3567014D12
ref: 8-2
MODEL R

BRACKET,FR TURNSIGNAL,R

€ 11.00

8-3

3568014D11
ref: 8-3
MODEL L/M/N/P

BRACKET,FRONT TURN SIGNAL

€ 11.00

8-4

3568014D12
ref: 8-4
MODEL R

BRACKET,FR TURNSIGNAL,L

€ 11.00

9-1

3567003D20
ref: 9-1
DR350SHN/SHP/SHR

BRACKET,FR TURN,R

€ 9.00

9-2

3568003D20
ref: 9-2
DR350SHN/SHP/SHR

BRACKET,FR TURN,L

€ 9.00

10-1

0214205084
ref: 10-1
DR350SHN/SHP

SCREW

€ 2.00

10-2

0214205083
ref: 10-2
DR350SHR

SCREW

€ 2.00

11-1

0831616105
ref: 11-1
MODEL L/M N/P

NUT

€ 2.00

11-2

0831610103
ref: 11-2
MODEL R

NUT

€ 2.00

12-1

3560317C21
ref: 12-1
MODEL L/M

LAMP ASSEMBLY,REAR TURN SIGNAL

€ 88.00

12-2

3560314D10
ref: 12-2
MODEL L/M E15

LAMP ASSY,RR TURNSIGNAL

€ 88.00

12-3

3560314D10
ref: 12-3
MODEL N/P/R

LAMP ASSY,RR TURNSIGNAL

€ 88.00

12-4

3560314D20
ref: 12-4
E24,MODEL N E15

LAMP ASSY,RR TURNSIGNAL

€ 74.00

13

3565217C20
ref: 13

LENS

€ 6.50

14

3561327A00
ref: 14

GASKET (NAS)

€ 3.00

15

3562327A00
ref: 15

SCREW(3X30)

€ 1.50

16

3572540511
ref: 16

SCREW

€ 1.50

17

3562727A02
ref: 17

GASKET (NAS)

€ 1.50

18

0947112045
ref: 18

BULB(12V21W)

€ 5.00

19-1

0831616105
ref: 19-1
MODEL L/M/N/P

NUT

€ 2.00

19-2

0831610103
ref: 19-2
MODEL R

NUT

€ 2.00

20

0940702401
ref: 20

CLAMP

€ 2.50

21

3562014D00
ref: 21
E15,E24

BRACKET,REAR TURN SIGNAL

€ 14.00

22-1

3861031310
ref: 22-1

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50

22-2

3861045091
ref: 22-2
E22

RELAY ASSY,TUR

€ 67.50
