FRAME
DR370 1978 (C) USA (E03)

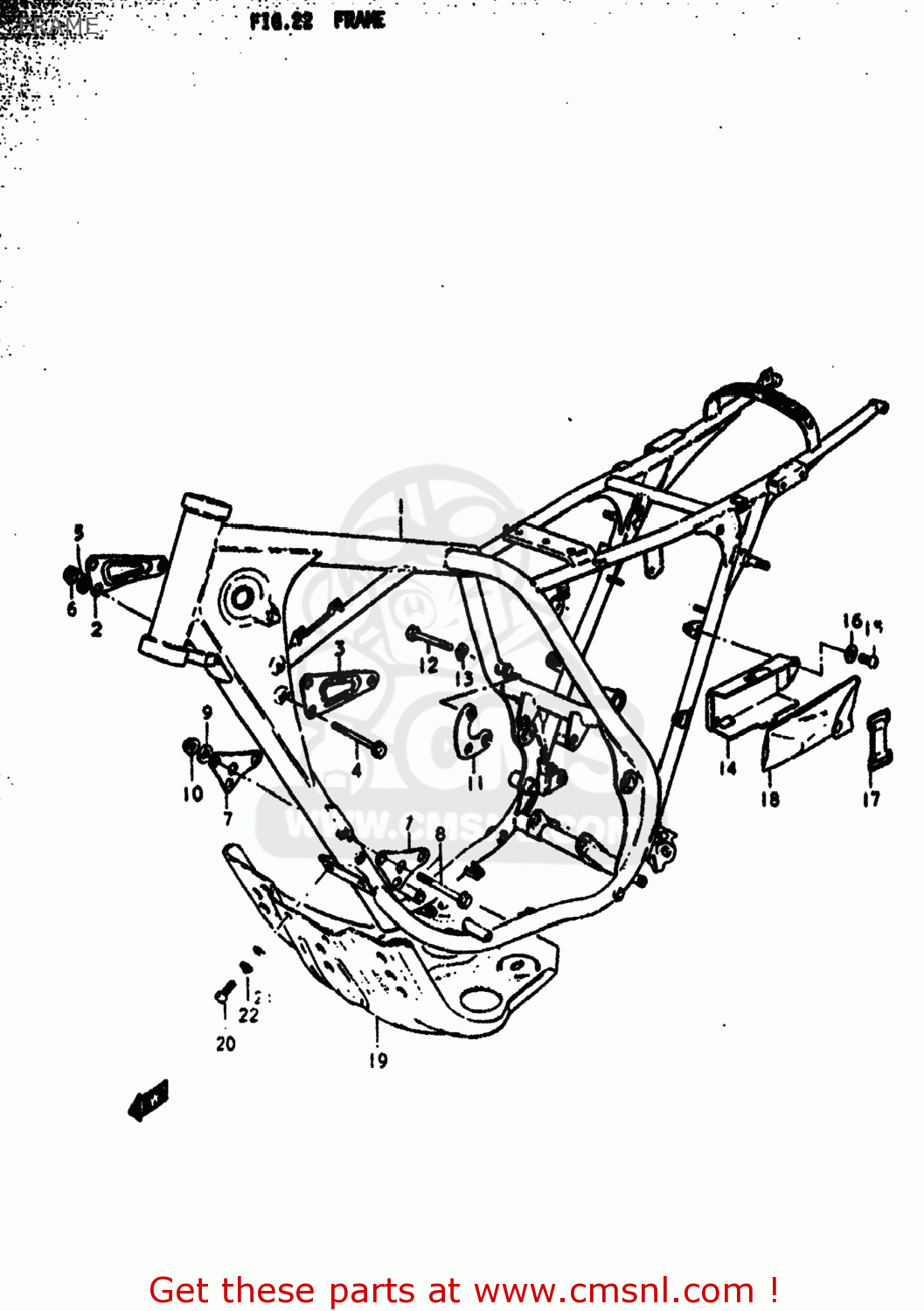

Frame diagram DR370 1978 (C) USA (E03)
FRAME DR370 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110032500019
ref: 1-1
FRAME
€ 0.00
1-2
4110032501019
ref: 1-2
FRAME
€ 236.00
2
4199132400
ref: 2
PLATE,ENGINE MOUNTING
€ 0.00
2
4199132400
ref: 2
PLATE,ENGINE MOUNTING
€ 0.00
3
4199232400
ref: 3
PLATE,ENGINE MOUNTING
€ 0.00
3
4199232400
ref: 3
PLATE,ENGINE MOUNTING
€ 0.00
4
0151706708
ref: 4
01550-06707
BOLT (6X70)
€ 3.00
5
0832221068
ref: 5
08322-01067
WASHER
€ 2.00
6
0831931068
ref: 6
08319-31067
NUT
€ 2.50
7
4199332400
ref: 7
PLATE,ENGINE MOUNTING
€ 6.50
8
0151708708
ref: 8
01550-08707
BOLT (8X70)
€ 2.00
9
0832211088
ref: 9
08322-01087
WASHER
€ 2.00
10
0831931088
ref: 10
08319-3108A
NUT
€ 2.50
11
4199032400
ref: 11
PLATE,ENGINE MOUNTING
€ 0.00
12
0110708608
ref: 12
01500-0860B
BOLT
€ 2.50
13
0832121088
ref: 13
08321-01087
LOCK WASHER
€ 2.00
14
4155032400
ref: 14
HOLDER,TOOL
€ 0.00
15
0211206108
ref: 15
02112-06107
SCREW
€ 1.50
16
0832211068
ref: 16
08322-0106B
WASHER 6MM
€ 2.00
17
0946200017
ref: 17
BAND
€ 13.50
18
0980000185
ref: 18
09800-21028
TOOL SET
€ 43.50
19
1191132500
ref: 19
11911-32501
PROTECTOR,ENGINE
€ 101.00
20
0110706168
ref: 20
01500-06167
BOLT, UPPER
€ 3.00
21
0832221068
ref: 21
08322-01067
WASHER
€ 2.00
22
0832121068
ref: 22
08321-01067
LOCK WASHER
€ 2.50
