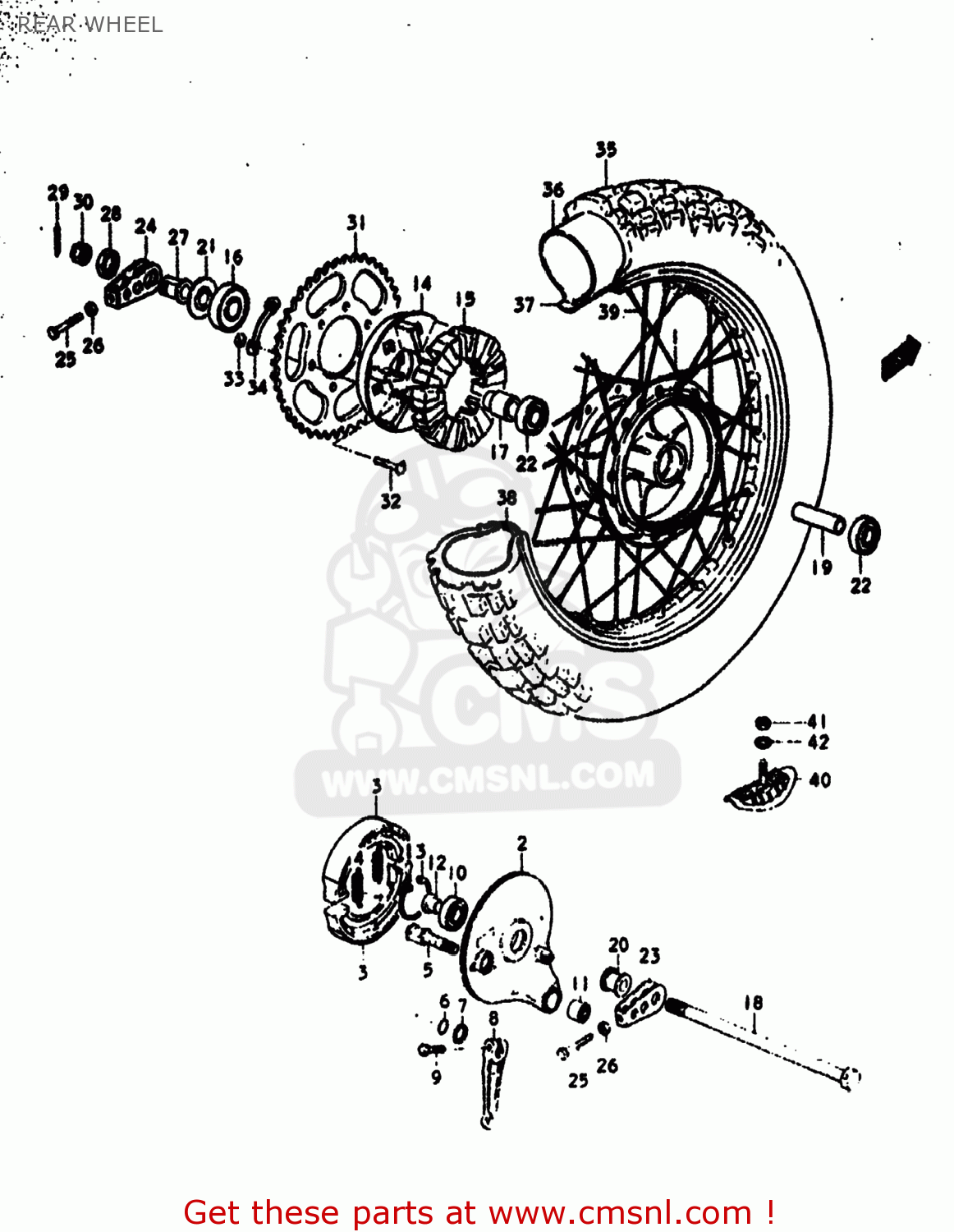

REAR WHEEL

ref

part #

description

quantity

1

6411032420
ref: 1

DRUM,REAR HUB

€ 0.00

2

6421032421
ref: 2

PANEL,REAR HUB

€ 134.50

3-1

5441008002
ref: 3-1
64400-02830

SHOE,BRAKE

€ 35.00

3-2

5441032400
ref: 3-2
64400-02830

SHOE,BRAKE (MCA)

€ 35.00

4

5542041100
ref: 4

SPRING

€ 5.50

5-1

5444008001
ref: 5-1
54440-08004

CAM,FRONT BRAKE

€ 19.00

5-2

5444008002
ref: 5-2
54440-08004

CAM,FRONT BRAKE

€ 19.00

6

0928015001
ref: 6
09280-15003

O-RING,BOSS

€ 2.00

7

0916015001
ref: 7
09160-15048

WASHER (15X24X1.6)

€ 2.50

8

6445132400
ref: 8

LEVER,REAR BRAKE CAM

€ 15.00

9

0110706258
ref: 9
01500-06257

BOLT

€ 2.00

10-1

0812360040
ref: 10-1

BEARING

€ 21.00

10-2

0812360047
ref: 10-2
08133-60047

BALL BEARING

€ 21.00

11

0931910008
ref: 11

BUSH

€ 8.00

12

6421332400
ref: 12

SPACER,REAR HUB PANEL

€ 17.50

13

0833141428
ref: 13
08331-4142A

CIRCLIP,42MM

€ 1.50

14

6461132420
ref: 14

DRUM,REAR SPROCKET MOUNT

€ 0.00

15

6465032400
ref: 15

CUSHION,REAR DRUM

€ 7.50

16-1

0812363040
ref: 16-1
08123-63047

BEARING

€ 14.00

16-2

0812363047
ref: 16-2

BEARING

€ 14.00

17

6473332400
ref: 17

SPACER,REAR HUB BEARING

€ 11.50

18

6471116500
ref: 18

AXLE,REAR

€ 41.00

19

0918015043
ref: 19

SPACER (15.3X21.7X82)

€ 6.00

20

6474132400
ref: 20

SPACER,AXLE,RIGHT

€ 9.00

21

6475032400
ref: 21

SPACER,REAR AXLE,RIGHT

€ 9.00

22-1

0814363020
ref: 22-1

BEARING

€ 12.00

22-2

0814363027
ref: 22-2
08153-63027

BEARING, RH

€ 12.00

23

6141032400
ref: 23

ADJUSTER,CHAIN

€ 22.00

24

6141041100
ref: 24

ADJUSTER,CHAIN

€ 10.00

25

0910408006
ref: 25
09104-08034

BOLT

€ 3.00

26

0831012088
ref: 26
08310-00087

NUT

€ 2.00

27

6479141100
ref: 27

SPACER,CHAIN ADJUSTER

€ 14.50

28

0914022003
ref: 28

NUT

€ 10.00

29

0411130408
ref: 29
04111-3040A

PIN 30X40

€ 1.50

30

0914114001
ref: 30

NUT

€ 4.50

31-1

6451132400
ref: 31-1
64511-32401

SPROCKET,REAR

€ 101.50

31-2

6451132410
ref: 31-2

SPROCKET,REAR (NT:41)(AL)

€ 51.50

31-3

6451132420
ref: 31-3
64511-32421

SPROCKET,REAR

€ 45.00

32

0910508001
ref: 32

BOLT(8X33.5)

€ 2.50

33

0831012088
ref: 33
08310-00087

NUT

€ 2.00

34

0916908011
ref: 34

WASHER

€ 2.50

35

6510041110
ref: 35
65100-14230

TIRE

€ 0.00

36

6520041110
ref: 36
65200-16510

TUBE ASSEMBLY,WHEEL,INNER

€ 16.00

37

6526116510
ref: 37
65261-33030

PROTECTOR,WHEEL,INNER

€ 5.50

38

6531130600
ref: 38

RIM,REAR WHEEL

€ 75.00

39

6530016828
ref: 39
65320-16520

SPOKE SET,REAR

€ 54.00

40

6527030001
ref: 40
65270-43D00

STOPPER,BEAD

€ 30.50

41

0831012088
ref: 41
08310-00087

NUT

€ 2.00

42

0832211088
ref: 42
08322-01087

WASHER

€ 2.00
