REAR COMBINATION LAMP
DR370 1978 (C) USA (E03)

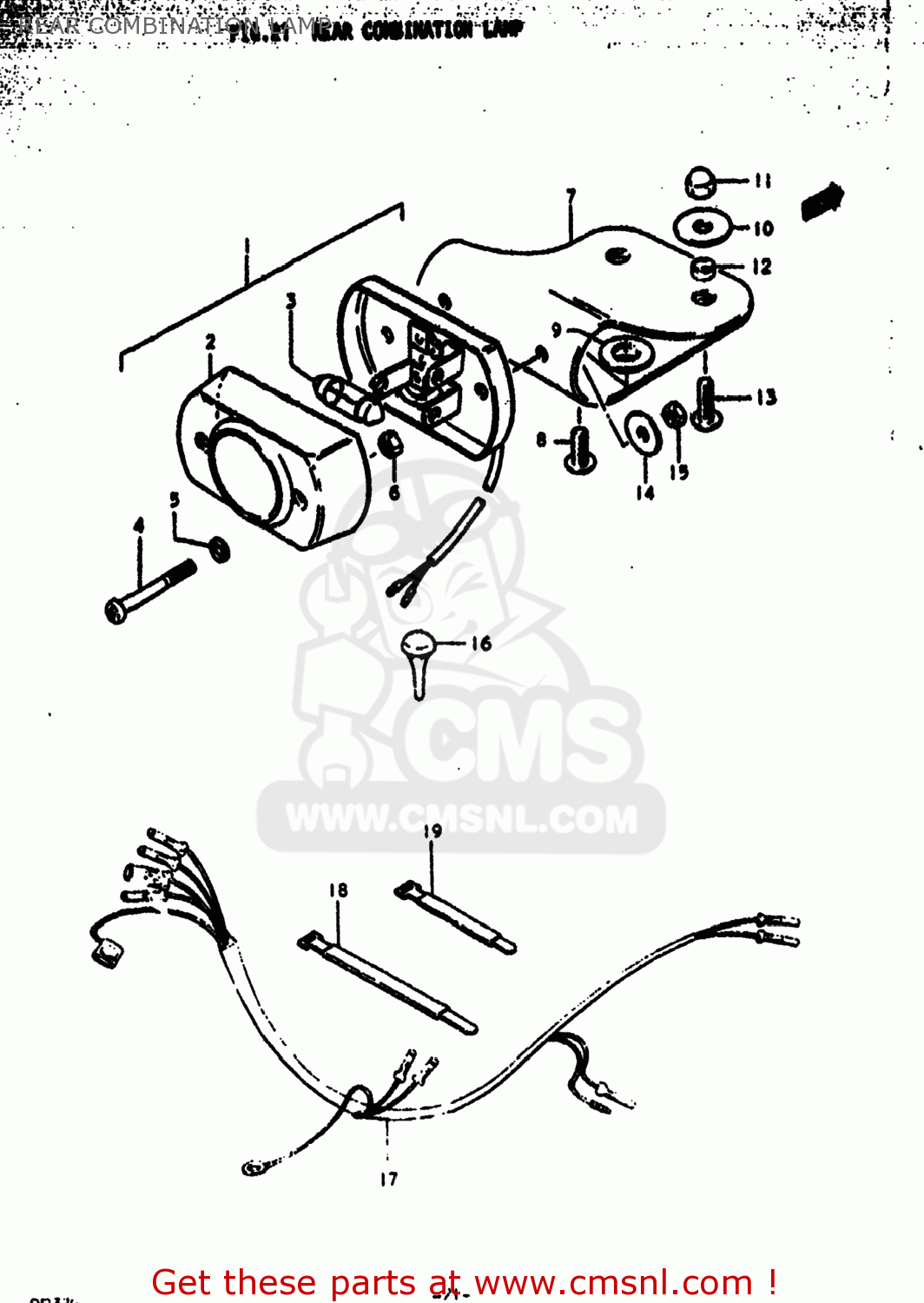

Rear combination lamp diagram DR370 1978 (C) USA (E03)
REAR COMBINATION LAMP DR370 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571046410
ref: 1
LAMP ASSEMBLY,REAR COMBINATION
€ 20.50
2
3571241410
ref: 2
LENS,REAR COMBINATION LAMP
€ 19.50
3
0947106012
ref: 3
BULB
€ 2.00
4
3572303621
ref: 4
SCREW,REAR COMBINATION LAMP LENS
€ 3.00
5
3572703010
ref: 5
WASHER,REAR COMBINATION LAMP
€ 1.50
6
0831022048
ref: 6
08310-00047
NUT 4MM
€ 2.00
7-1
3576432500
ref: 7-1
35764-32501
CUSHION,REAR COMBINATION LAMP
€ 6.00
7-2
3576432501
ref: 7-2
CUSHION,REAR COMBINATION LAMP
€ 6.00
8
0214206127
ref: 8
SCREW 6X12
€ 1.50
9-1
0916906011
ref: 9-1
WASHER
€ 6.50
9-2
0916906022
ref: 9-2
09169-06037
WASHER
€ 6.50
10
0916006027
ref: 10
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
11
0831311068
ref: 11
08313-10067
NUT
€ 2.00
12
0918006001
ref: 12
SPACER(6.2X8.3X5.7)
€ 2.00
13
0214206127
ref: 13
SCREW 6X12
€ 1.50
14
0916005013
ref: 14
WASHER(5.2X16X1)
€ 1.50
15
0831011048
ref: 15
08310-00047
NUT
€ 2.00
16
0932106008
ref: 16
CUSHION
€ 2.00
17-1
3661032500
ref: 17-1
HARNESS,WIRING
€ 29.50
17-2
3661032510
ref: 17-2
HARNESS,WIRING
€ 23.50
18
0940718301
ref: 18
CLAMP
€ 6.00
19
0940711302
ref: 19
09407-18301
CLAMP
€ 6.00
