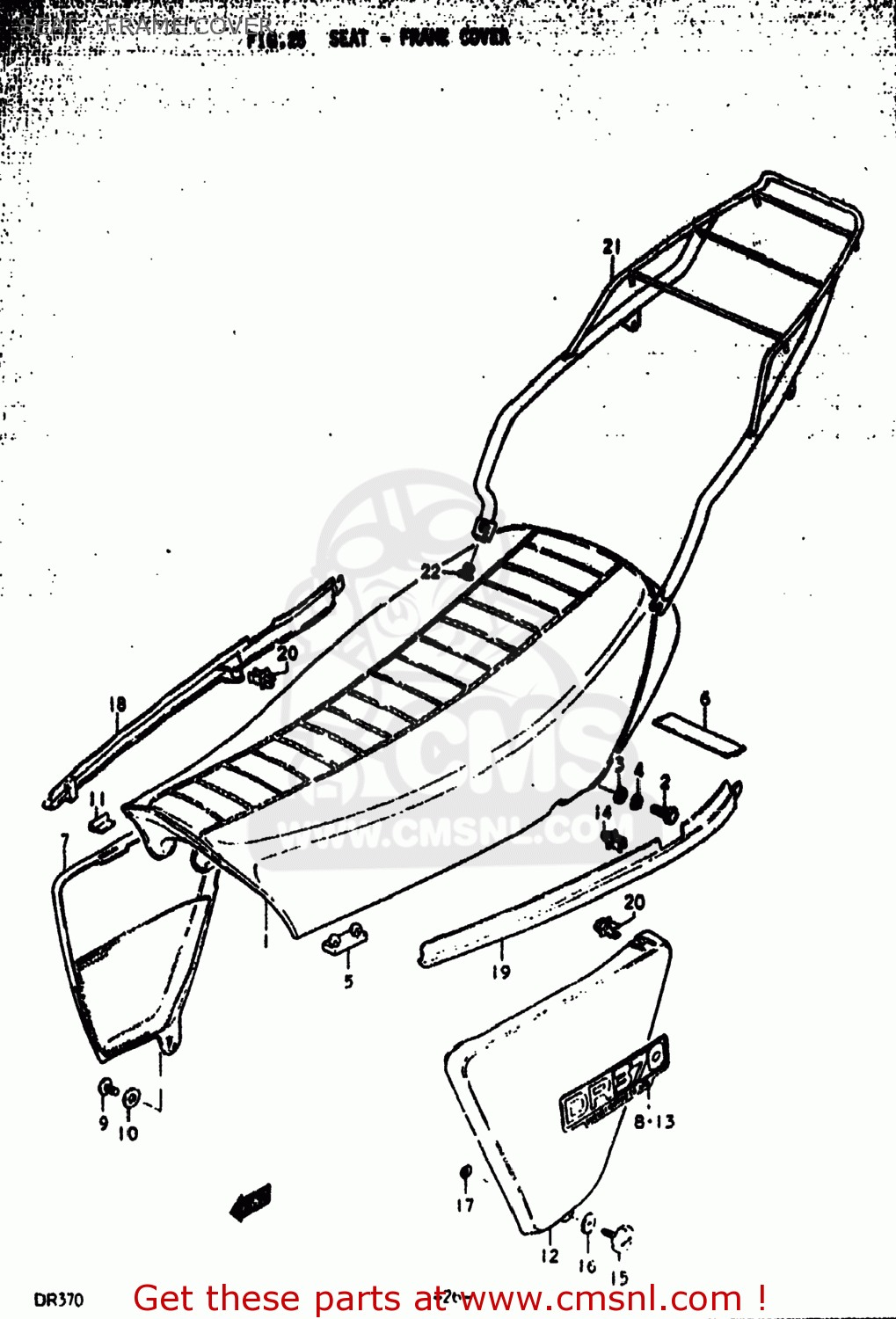

SEAT - FRAME COVER - DR370 1978 (C) USA (E03)

ref

part #

description

quantity

1

4510032500865
ref: 1
45100-32400-48F

SEAT ASSEMBLY

€ 97.00

2

0110708168
ref: 2
01500-0816B

BOLT

€ 2.00

3

0832211088
ref: 3
08322-01087

WASHER

€ 2.00

4

0832121088
ref: 4
08321-01087

LOCK WASHER

€ 2.00

5

0932108009
ref: 5

CUSHION

€ 4.00

6

4529941000
ref: 6

CUSHION,FRAME

€ 1.50

7

4711032400291
ref: 7
47110-32401-291

COVER,FRAME,RIGHT

€ 106.00

8

6813132500
ref: 8

EMBLEM

€ 4.00

9-1

0214206127
ref: 9-1

SCREW 6X12

€ 1.50

9-2

0214206167
ref: 9-2

SCREW

€ 2.00

10

0916006007
ref: 10
09160-06084

WASHER

€ 2.00

11

4711745000
ref: 11

CUSHION,FRAME COVER

€ 1.50

12

4721132400291
ref: 12
47211-32400

COVER,FRAME,LEFT

€ 36.50

13

6813132500
ref: 13

EMBLEM

€ 4.00

14

0940307306
ref: 14

CLAMP

€ 2.50

15

4713033101
ref: 15

KNOB,FRAME COVER,R

€ 7.50

16-1

0916105008
ref: 16-1

WASHER

€ 2.00

16-2

0916106015
ref: 16-2
09161-06023

WASHER

€ 3.50

17-1

0915206002
ref: 17-1

NUT

€ 2.00

17-2

0915206001
ref: 17-2

NUT

€ 1.50

18-1

4718132500737
ref: 18-1

COVER,FRAME

€ 99.50

18-2

471813250003K
ref: 18-2
47181-32500

COVER,FRAME

€ 99.50

19-1

4728132500737
ref: 19-1

COVER,SEAT,LOWER,LEFT

€ 99.50

19-2

472813250003K
ref: 19-2
47281-32500

COVER,SEAT,LOWER,LEFT

€ 99.50

20

0940307306
ref: 20

CLAMP

€ 2.50

21

4631032400
ref: 21

CARRIER

€ 110.50

22

0925011003
ref: 22

CAP(OD:17)

€ 2.50
