REAR SWINGING ARM
DR370 1978 (C) USA (E03)

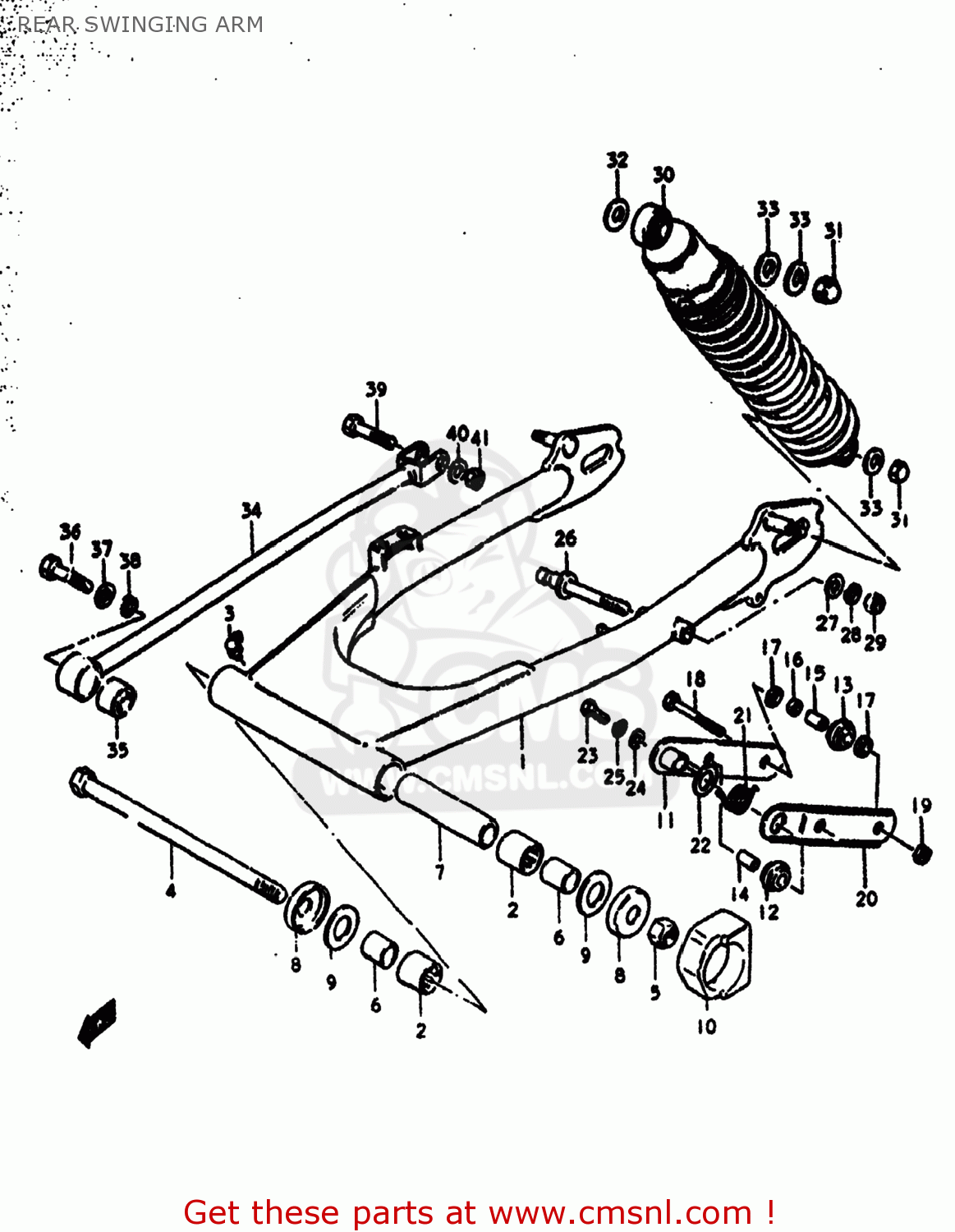

Rear swinging arm diagram DR370 1978 (C) USA (E03)
REAR SWINGING ARM DR370 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6110032840019
ref: 1-1
61100-32842-019
SWING ARM ASSEMBLY,REAR
€ 0.00
1-2
6110032842019
ref: 1-2
SWING ARM ASSEMBLY,REAR
€ 0.00
2
0926322022
ref: 2
BEARING(22X29X20)
€ 27.00
3
0835131008
ref: 3
08351-3100A
NIPPLE,GREASE
€ 10.50
4-1
6121138001
ref: 4-1
61211-38004
SHAFT,REAR SWING ARM
€ 22.50
4-2
6121132410
ref: 4-2
SHAFT,REAR SWING ARM
€ 31.50
5-1
0831921148
ref: 5-1
08319-2114A
NUT 14MM
€ 3.00
5-2
0831921168
ref: 5-2
08319-2116A
NUT 16MM
€ 5.00
6-1
6125132400
ref: 6-1
SPACER,RR SWGARM PIVOT
€ 12.50
6-2
6125132410
ref: 6-2
SPACER,RR SWGARM PIVOT
€ 8.50
7-1
0918015044
ref: 7-1
SPACER
€ 6.00
7-2
0918016018
ref: 7-2
SPACER (16.2X21.7X142)
€ 12.50
8-1
6126245002
ref: 8-1
CVR,RR SWGARM DUST SEAL(OD:40)
€ 4.50
8-2
6126232410
ref: 8-2
COVER,RR SWGARM DUST SEAL
€ 10.00
9-1
0916014020
ref: 9-1
WASHER(14.2X34X1)
€ 2.50
9-2
0821116341
ref: 9-2
WASHER
€ 2.00
10
6127341110
ref: 10
BUFFER,CHAIN TOUCH DEFENSE
€ 19.00
11-1
6135041300
ref: 11-1
61350-41301
TENSIONER,CHAIN
€ 25.00
11-2
6135041301
ref: 11-2
TENSIONER,CHAIN
€ 25.00
12
6134541100
ref: 12
RUBBER,CHAIN GUARD
€ 4.50
12
6134541100
ref: 12
RUBBER,CHAIN GUARD
€ 4.50
13
6134541501
ref: 13
ROLLER,CHAIN TENSIONER LWR
€ 6.00
14
0918006067
ref: 14
SPACER(6.5X10.5X22.5)
€ 2.50
14
0918006067
ref: 14
SPACER(6.5X10.5X22.5)
€ 2.50
15
0918006075
ref: 15
SPACER(6.2X10X22.5)
€ 4.00
16
0926310007
ref: 16
BEARING(10X14X15)
€ 21.00
16
0926310007
ref: 16
BEARING(10X14X15)
€ 21.00
17
0928410004
ref: 17
SEAL,OIL(10X14.4X3.5)
€ 2.50
17
0928410004
ref: 17
SEAL,OIL(10X14.4X3.5)
€ 2.50
18
0110706358
ref: 18
09100-06033
BOLT
€ 2.50
19
0831921068
ref: 19
08319-2106A
NUT 6MM
€ 2.00
20-1
6135241300
ref: 20-1
61352-41301
PLATE,CHAIN TENSIONER
€ 8.00
20-2
6135241301
ref: 20-2
PLATE,CHAIN TENSIONER OUTER
€ 8.00
21
0944825003
ref: 21
SPRING
€ 3.00
22
0832211168
ref: 22
08322-01167
WASHER
€ 2.00
23
0110706128
ref: 23
01500-06127
BOLT
€ 2.00
24
0916006007
ref: 24
09160-06084
WASHER
€ 2.00
25
0832121068
ref: 25
08321-01067
LOCK WASHER
€ 2.50
26
6136132501
ref: 26
HOLDER,CABLE TENSIONER
€ 15.50
27
0832211108
ref: 27
08322-01107
WASHER
€ 2.50
28
0832121108
ref: 28
08321-01107
LOCK WASHER
€ 2.00
29
0831012108
ref: 29
08310-00107
NUT
€ 2.50
30
6210032500
ref: 30
ABSORBER ASSEMBLY,REAR SHOCK
€ 139.00
31
0831311108
ref: 31
08313-10107
NUT, LOWER LH
€ 2.50
32
0832211128
ref: 32
08322-01127
WASHER
€ 2.00
33
0916010001
ref: 33
09160-10093
WASHER
€ 2.00
34
6431032400
ref: 34
64310-32400-019
TORQUE LINK,REAR
€ 11.50
35
0931910008
ref: 35
BUSH
€ 8.00
36
0110710408
ref: 36
01500-10407
BOLT 10X40
€ 3.00
37
0832211108
ref: 37
08322-01107
WASHER
€ 2.50
38
0832121108
ref: 38
08321-01107
LOCK WASHER
€ 2.00
39
0110710408
ref: 39
01500-10407
BOLT 10X40
€ 3.00
40
0832211108
ref: 40
08322-01107
WASHER
€ 2.50
41
0831921108
ref: 41
09159-10027
NUT
€ 3.00
