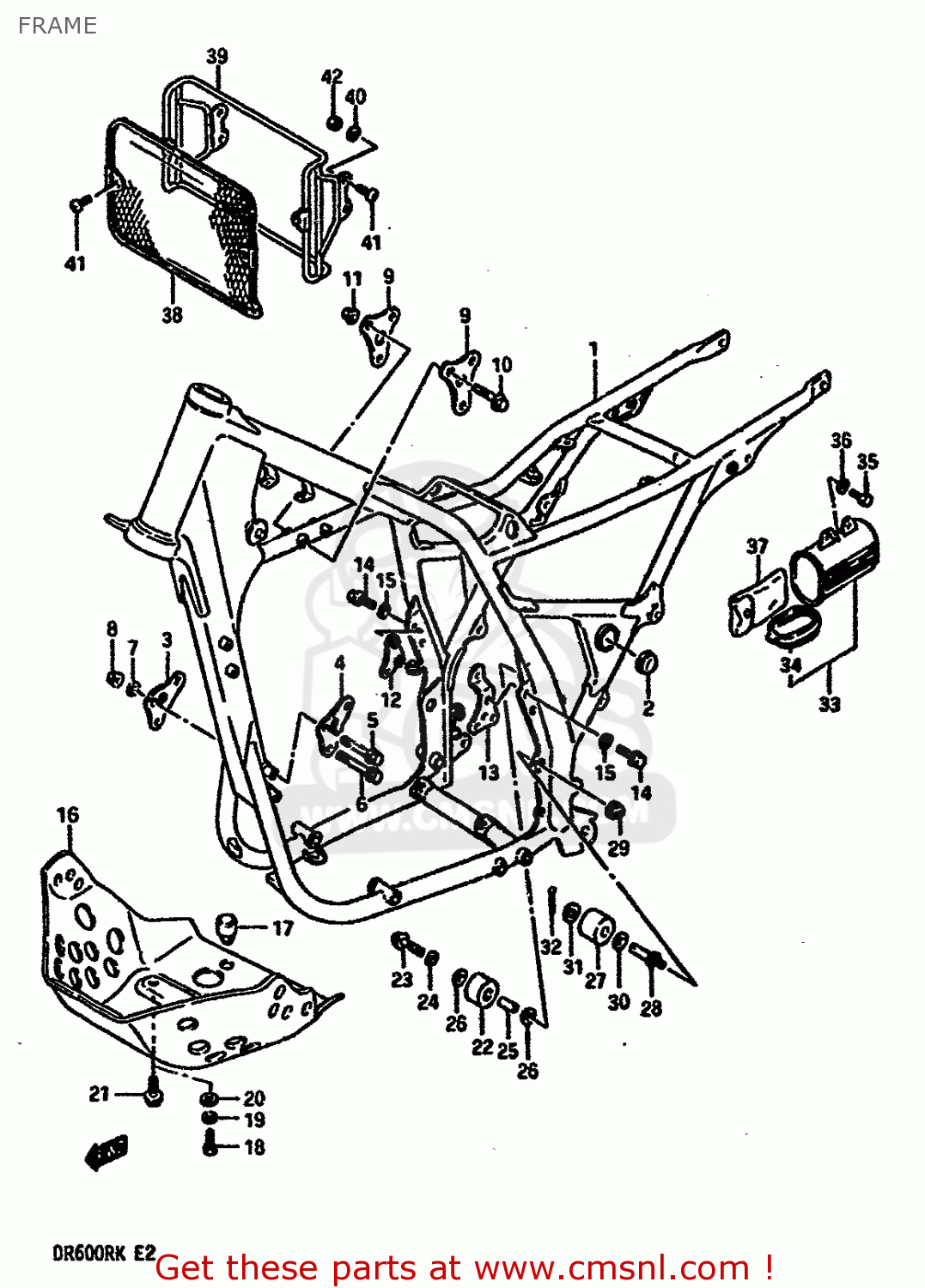

FRAME

ref

part #

description

quantity

1-1

4110015A0010V
ref: 1-1
MODEL G E4,E21,E24,E

FRAME (WHITE)

€ 0.00

1-2

4110015A3010V
ref: 1-2
MODEL G

FRAME (WHITE)

€ 195.00

1-3

4110015A7010V
ref: 1-3
MODEL G E22

FRAME (WHITE)

€ 0.00

1-4

4110015A3034S
ref: 1-4
MODEL H

FRAME (BLUE)

€ 195.00

1-5

4110015A8034S
ref: 1-5
MODEL J

FRAME (BLUE)

€ 0.00

1-6

4110015A0034S
ref: 1-6
MODEL H E4,E6,E24

FRAME (BLUE)

€ 0.00

1-7

4110015A7034S
ref: 1-7
MODEL H E22

FRAME (BLUE)

€ 0.00

1-8

4110015C2034S
ref: 1-8
MODEL J E15,E17,E22

FRAME (BLUE)

€ 0.00

1-9

4110015A1034S
ref: 1-9
MODEL H E34,E53

FRAME (BLUE)

€ 0.00

1-10

4110015C1034S
ref: 1-10
MODEL J E34

FRARM (BLUE)

€ 0.00

1-11

4110014C3134S
ref: 1-11
MODEL K

FRAME (BLUE)

€ 1,069.00

1-12

4110014C4134S
ref: 1-12
MODEL K E15,E17,E22

FRAME (BLUE)

€ 0.00

1-13

4110014C5134S
ref: 1-13
MODEL K E34

FRAME (BLUE)

€ 1,069.00

2-1

4149914A0010V
ref: 2-1
MODEL G

CAP, CUSHION LEVER (WHITE)

€ 3.00

2-2

4149914A0034S
ref: 2-2
MODEL H/J/K

CAP, CUSHION LEVER (BLUE)

€ 3.00

3

4191114A00291
ref: 3

PLATE,ENGINE MOUNTING,FRONT

€ 6.00

4

4192114A00291
ref: 4

PLATE,ENGINE MOUNTING,FRONT

€ 6.00

5

0910308037
ref: 5

BOLT(8X67)

€ 6.50

6

0910308063
ref: 6

BOLT(8X75)

€ 79.50

7

0832131087
ref: 7

WASHER,LOCK

€ 2.00

8

0831921088
ref: 8

NUT

€ 1.50

9

4199114A00291
ref: 9

PLATE,ENGINE MOUNTING,UPPER

€ 7.50

10

0151708508
ref: 10

BOLT

€ 3.50

11

0831931087
ref: 11

NUT

€ 2.50

12

4194014A00291
ref: 12

PLATE,ENGINE MOUNTING,REAR

€ 0.00

13

4195014A00291
ref: 13

PLATE,ENGINE MOUNTING,REAR

€ 0.00

14

0151708207
ref: 14

BOLT

€ 3.00

15

0832131087
ref: 15

WASHER,LOCK

€ 2.00

16-1

4251114A10
ref: 16-1
MODEL G

PROTECTOR, ENGINE

€ 257.00

16-2

4251114A20
ref: 16-2
MODEL H/J/K

PROTECTOR,ENGINE

€ 257.00

17

0932110017
ref: 17

CUSHION

€ 5.50

18

0110706167
ref: 18
MODEL G

BOLT

€ 3.00

19

0832131067
ref: 19
MODEL G

WASHER,LOCK

€ 2.50

20

0916006002
ref: 20
MODEL G

WASHER (6.5X24X1.2)

€ 2.00

21

0151708167
ref: 21
MODEL H/J/K

BOLT 8X16

€ 3.00

22

4391001B00
ref: 22

ROLLER,CHAIN CONTROL

€ 36.50

23

0110708408
ref: 23

BOLT 8X40

€ 3.00

24

0832131087
ref: 24

WASHER,LOCK

€ 2.00

25

0918008119
ref: 25

SPACER(8.6X12X25.5)

€ 6.50

26

0821108161
ref: 26

WASHER

€ 2.00

27

4391114200
ref: 27

ROLLER,CHAIN LENGTH CONTROL

€ 18.50

28

4391514A00
ref: 28

BOLT,CHAIN LENGTH CONT LWR

€ 30.50

29

0831931107
ref: 29

NUT

€ 3.00

30

0832221128
ref: 30

WASHER

€ 2.00

31

4931715A00
ref: 31

WASHER

€ 4.50

32

0411125208
ref: 32

PIN 25X20

€ 2.00

33

4155037210
ref: 33

HOLDER,TOOL

€ 20.50

34

4155237210
ref: 34

CAP,HOLDER

€ 5.00

35

0110706165
ref: 35

BOLT 6X16

€ 2.00

36

0916006039
ref: 36

WASHER (6.5X18X1.6)

€ 2.00

37

0980000242
ref: 37

TOOL ASSY

€ 55.00

38

4851014A01
ref: 38

GUARD, HEADLAMP

€ 26.00

39

4852014A00
ref: 39

BRACE, HEADLAMP GUARD

€ 49.00

40

0916006069
ref: 40

WASHER

€ 2.00

41

0214206125
ref: 41

SCREW 6X12

€ 2.00

42

0831921065
ref: 42

NUT

€ 2.50
