REAR CUSHION LEVER
DR600RU 1988 (J)

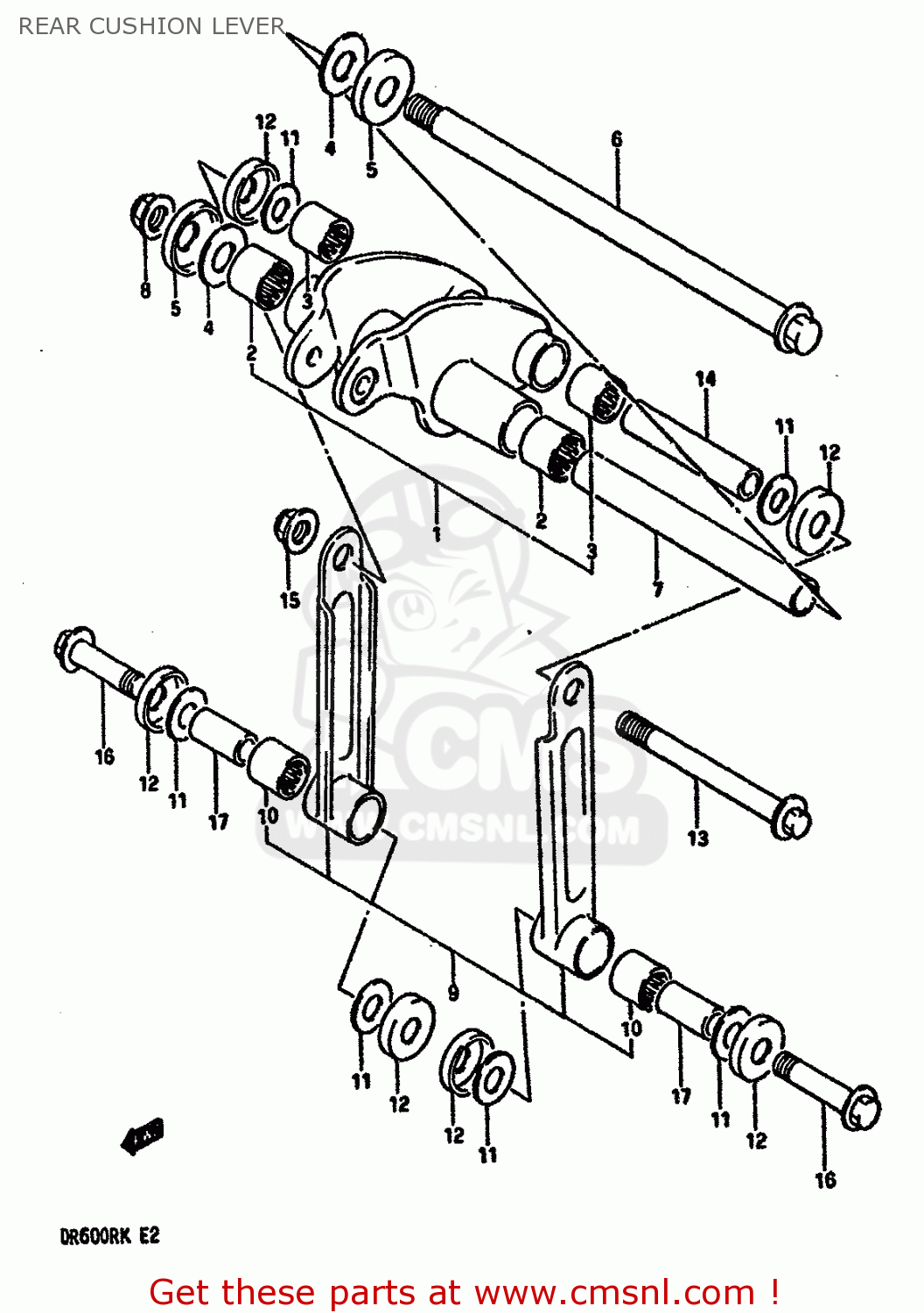

Rear cushion lever diagram DR600RU 1988 (J)
REAR CUSHION LEVER DR600RU 1988 (J)
×
prices are in EUR
ref
part #
description
quantity
1
6260214810
ref: 1
LEVER SET,REAR CUSHION
€ 182.50
2
0926320053
ref: 2
BEARING(20X27X25)
€ 15.50
3
0926317020
ref: 3
ROLLER BEARING (17X24X25)
€ 19.00
4
0821114323
ref: 4
WASHER
€ 3.50
5
6262414A00
ref: 5
SEAL,REAR CUSHION LEVER
€ 19.50
6
6262114A00
ref: 6
SHAFT,REAR CUSHION LEVER
€ 22.00
7
6262314A00
ref: 7
SPACER,RR CUSHION LEVER
€ 60.00
8
0831931128
ref: 8
NUT 12MM
€ 4.00
9
6260214820
ref: 9
ROD SET,REAR CUSHION
€ 45.50
10
0926317020
ref: 10
ROLLER BEARING (17X24X25)
€ 19.00
11
0821112283
ref: 11
WASHER
€ 3.00
12
6126241500
ref: 12
COVER,RR SWGARM DUST SEAL
€ 7.50
13
6264814A00
ref: 13
BOLT,REAR CUSHION ROD
€ 11.00
14
6264614A00
ref: 14
SPACER,RR CUSHION ROD UPR
€ 14.00
15
0831931128
ref: 15
NUT 12MM
€ 4.00
16
6265714A00
ref: 16
RING,BEARING STOPPER
€ 7.00
17
6265614A00
ref: 17
SPACER,RR CUSHION ROD LWR
€ 17.50
