SPEEDOMETER (MODEL H/J/K)
DR600RU 1988 (J)

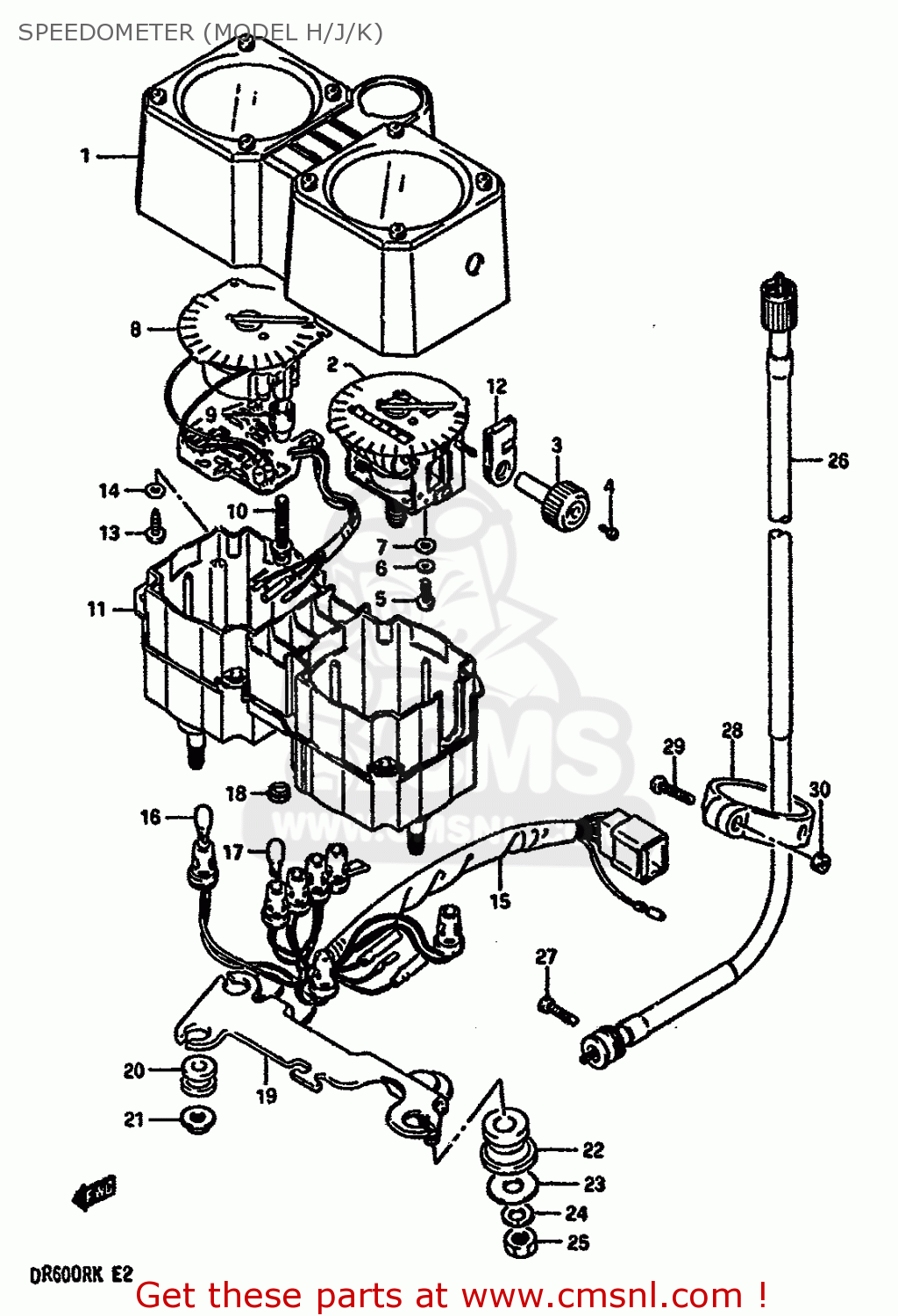

Speedometer (model h/j/k) diagram DR600RU 1988 (J)
SPEEDOMETER (MODEL H/J/K) DR600RU 1988 (J)
×
prices are in EUR
ref
part #
description
quantity
1-1
3415014A00
ref: 1-1
MODEL H,MODEL J E2,T
HOOD,METER
€ 99.50
1-2
3415014A60
ref: 1-2
E17,MODEL J/K E4,E15
HOOD,METER
€ 99.50
2-1
3412014A50
ref: 2-1
E2
SPEEDOMETER
€ 0.00
2-2
3412014A00
ref: 2-2
E4,E6,E15,E16,E18,E2
SPEEDOMETER (KILO)
€ 349.00
3
3412414A00
ref: 3
KNOB,TRIP
€ 7.00
4
3418414A00
ref: 4
SCREW,TRIP KNOB
€ 2.00
5
0211203106
ref: 5
SCREW
€ 1.50
6
0832121036
ref: 6
LOCK WASHER
€ 1.50
7
0832221036
ref: 7
WASHER 3.3X8X0
€ 1.50
8-1
3422014A00
ref: 8-1
TACHOMETER
€ 225.50
8-2
3422014A40
ref: 8-2
MODEL H E24
TACHOMETER
€ 225.50
9
3418714A00
ref: 9
SPACER
€ 4.50
10
3428314A00
ref: 10
SCREW
€ 2.00
11
3411114A01
ref: 11
FROM 34111-14A00
CASE,METER
€ 54.00
12
3419614A00
ref: 12
CUSHION,METER
€ 11.50
13
0311205129
ref: 13
SCREW
€ 1.50
14
0832121057
ref: 14
LOCK WASHER
€ 2.00
15
3417014A00
ref: 15
SOCKET,METER
€ 74.50
16
0947112100
ref: 16
BULB(12V1.7W,WB372,T7)
€ 2.00
17
0947112085
ref: 17
BULB(12V3W,WB371,T7)
€ 3.00
18
3419414A00
ref: 18
CAP
€ 8.00
19
3495014A00
ref: 19
BRACKET,METER
€ 47.00
20
3499643410
ref: 20
CUSHION,METER
€ 3.00
21
3418514A00
ref: 21
NUT
€ 5.50
22
3495631001
ref: 22
CUSHION,METER BRACKET
€ 4.50
23
0916008057
ref: 23
WASHER (8.5X20X1.6)
€ 2.00
24
0832121084
ref: 24
WASHER,LOCK,8.
€ 2.50
25
0831011085
ref: 25
NUT
€ 1.50
26
3491014A10
ref: 26
CABLE ASSEMBLY,SPEEDOMETER
€ 66.00
27
0110705167
ref: 27
BOLT
€ 1.50
28
3493814A01
ref: 28
CLAMP,SPEEDOMETER CABLE
€ 10.00
29
0211205208
ref: 29
SCREW 5X20
€ 3.00
30
0831011058
ref: 30
NUT
€ 2.50
