FRONT FENDER (MODEL G)

DR600RU 1989 (K)

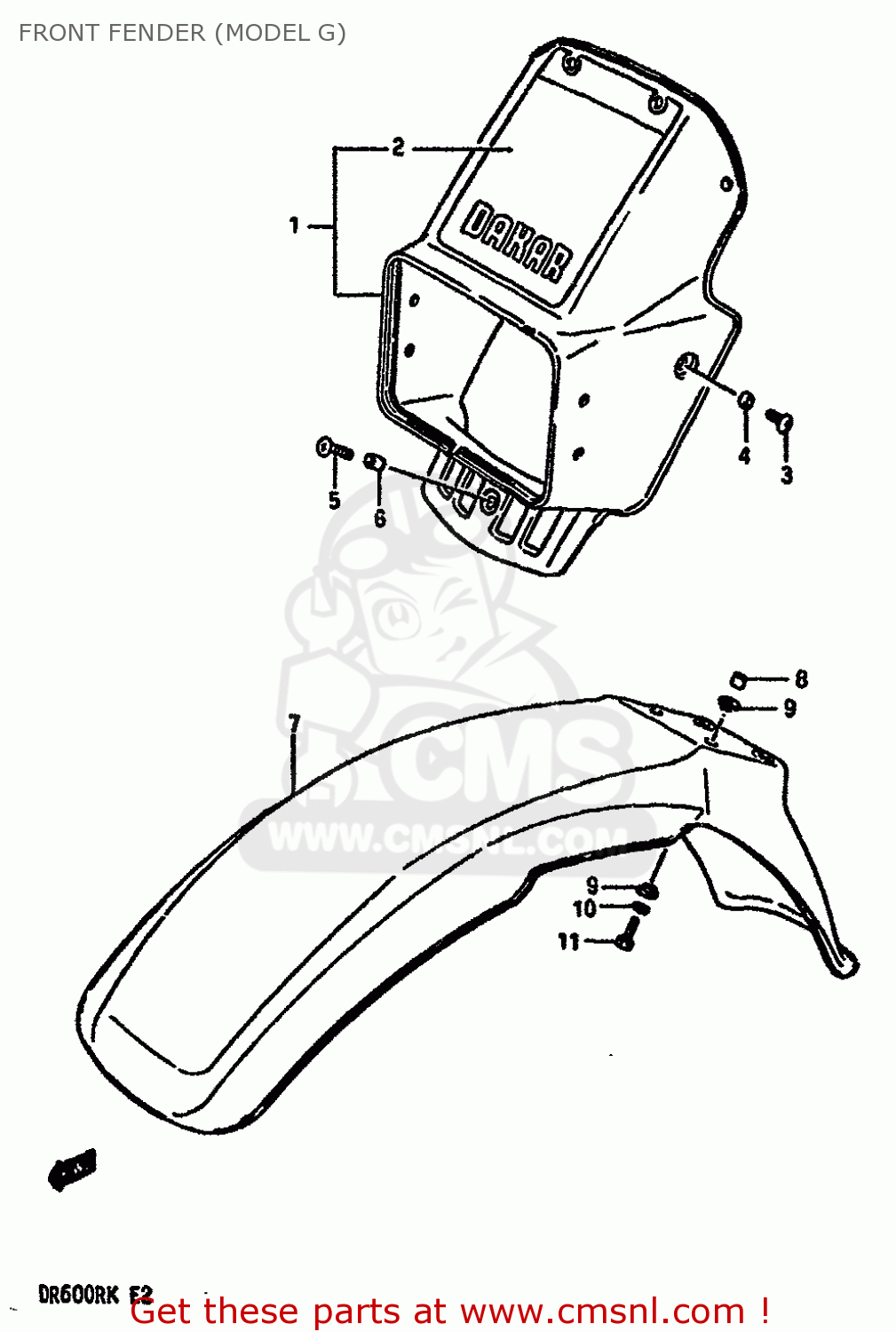

Front fender (model g) diagram DR600RU 1989 (K)

FRONT FENDER (MODEL G) DR600RU 1989 (K)

FRONT FENDER (MODEL G) DR600RU 1989 (K)

prices are in EUR

ref

part #

description

quantity

1-1

5181014A2010V
ref: 1-1

COVER, HEADLAMP (WHITE)

€ 132.50

1-2

5181014A3010V
ref: 1-2
E4

COVER,HEADLAMP (WHITE)

€ 87.50

2-1

6825014A208LD
ref: 2-1

TAPE SET

€ 0.00

2-2

6825014A308GY
ref: 2-2
E4

TAPE SET

€ 0.00

3

0214206125
ref: 3

SCREW 6X12

€ 2.00

4

0918006098
ref: 4

SPACER (6.1X8X3.5)

€ 3.00

5

0214206205
ref: 5

SCREW, CENTER

€ 2.00

6

0918006035
ref: 6

SPACER (6.1X8X12)

€ 2.50

7

5311114A2010V
ref: 7

FENDER, FRONT (WHITE)

€ 70.50

8

0918006038
ref: 8

SPACER(6.1X9X7.5)

€ 2.00

9

0916906053
ref: 9

WASHER

€ 2.00

10

0832121067
ref: 10

WASHER,LOCK

€ 2.50

11

0110706257
ref: 11

BOLT

€ 2.00
