FRONT WHEEL
DR600RU 1989 (K)

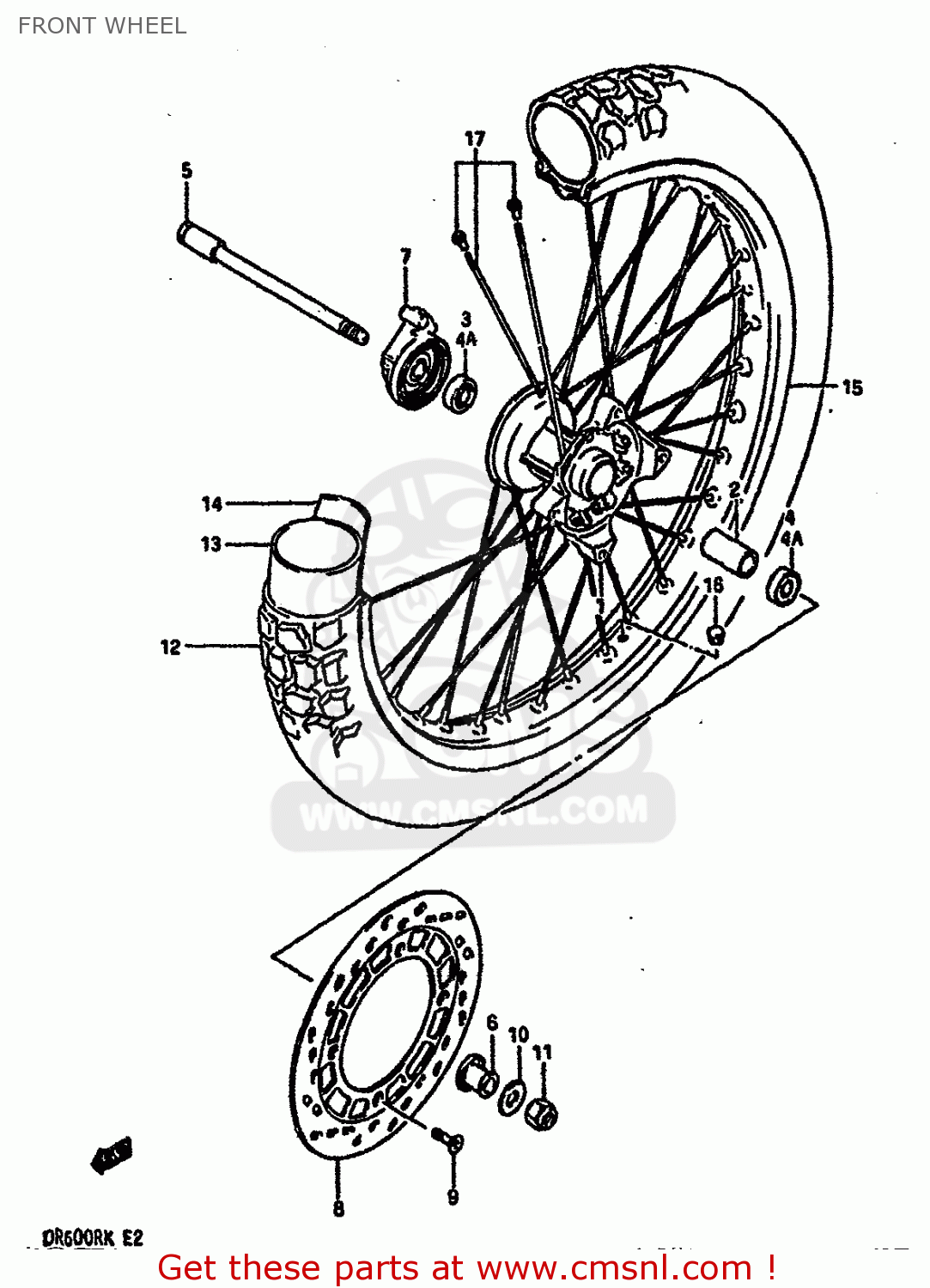

Front wheel diagram DR600RU 1989 (K)
FRONT WHEEL DR600RU 1989 (K)
×
prices are in EUR
ref
part #
description
quantity
1-1
5411114A00
ref: 1-1
MODEL G/H/J
HUB,FRONT
€ 133.50
1-2
5411114A02
ref: 1-2
MODEL K
HUB,FRONT WHEEL
€ 133.50
2
0918015074
ref: 2
SPACER(15.3X21.7X56)
€ 8.50
3
0811362027
ref: 3
MODEL G/H
BEARING
€ 14.50
4
0812362027
ref: 4
MODEL G/H
BEARING
€ 14.50
4A
0812362027
ref: 4A
MODEL J/K
BEARING
€ 14.50
5
5471114A00
ref: 5
AXLE,FRONT
€ 49.00
6
5475014A00
ref: 6
SPACER,FRONT AXLE,LEFT
€ 10.00
7
5460014A00
ref: 7
BOX ASSEMBLY,SPEEDOMETER GEAR
€ 77.50
8-1
5922114A00
ref: 8-1
DISC,FR BRAKE
€ 180.00
8-2
5922114A10
ref: 8-2
MODEL J/K E4,E15,E16
DISC,FR BRAKE
€ 177.00
9
5942103A01
ref: 9
BOLT,BRAKE DISC
€ 4.00
10
0832211128
ref: 10
WASHER
€ 2.00
11
0915912006
ref: 11
NUT
€ 3.00
12-1
5510014A10
ref: 12-1
IRC,MODEL G/H/J
TIRE 100/80-21
€ 0.00
12-2
5510044B00
ref: 12-2
MODEL K
TIRE,FRONT (90/90-21) 54S
€ 86.50
13
5520016520
ref: 13
TUBE,INNER
€ 32.50
14
5526116510
ref: 14
PROTECTOR,WHEEL,INNER
€ 5.00
15-1
5531114A00
ref: 15-1
MODEL G
RIM,FRONT WHEEL
€ 309.00
15-2
5531114A10
ref: 15-2
MODEL H/J/K
RIM,FRONT WHEEL (1.85X21)(
€ 309.00
16
0925008013
ref: 16
CAP(OD:12)
€ 2.00
17-1
5532014A00
ref: 17-1
MODEL G
SPOKE SET,FRONT
€ 49.50
17-2
5532013A00
ref: 17-2
MODEL H/J
SPOKE SET,FRONT
€ 49.50
17-3
5532044B00
ref: 17-3
MODEL K
SPOKE SET,FR WHEEL
€ 47.50
