REAR WHEEL (MODEL K)
DR600RU 1989 (K)

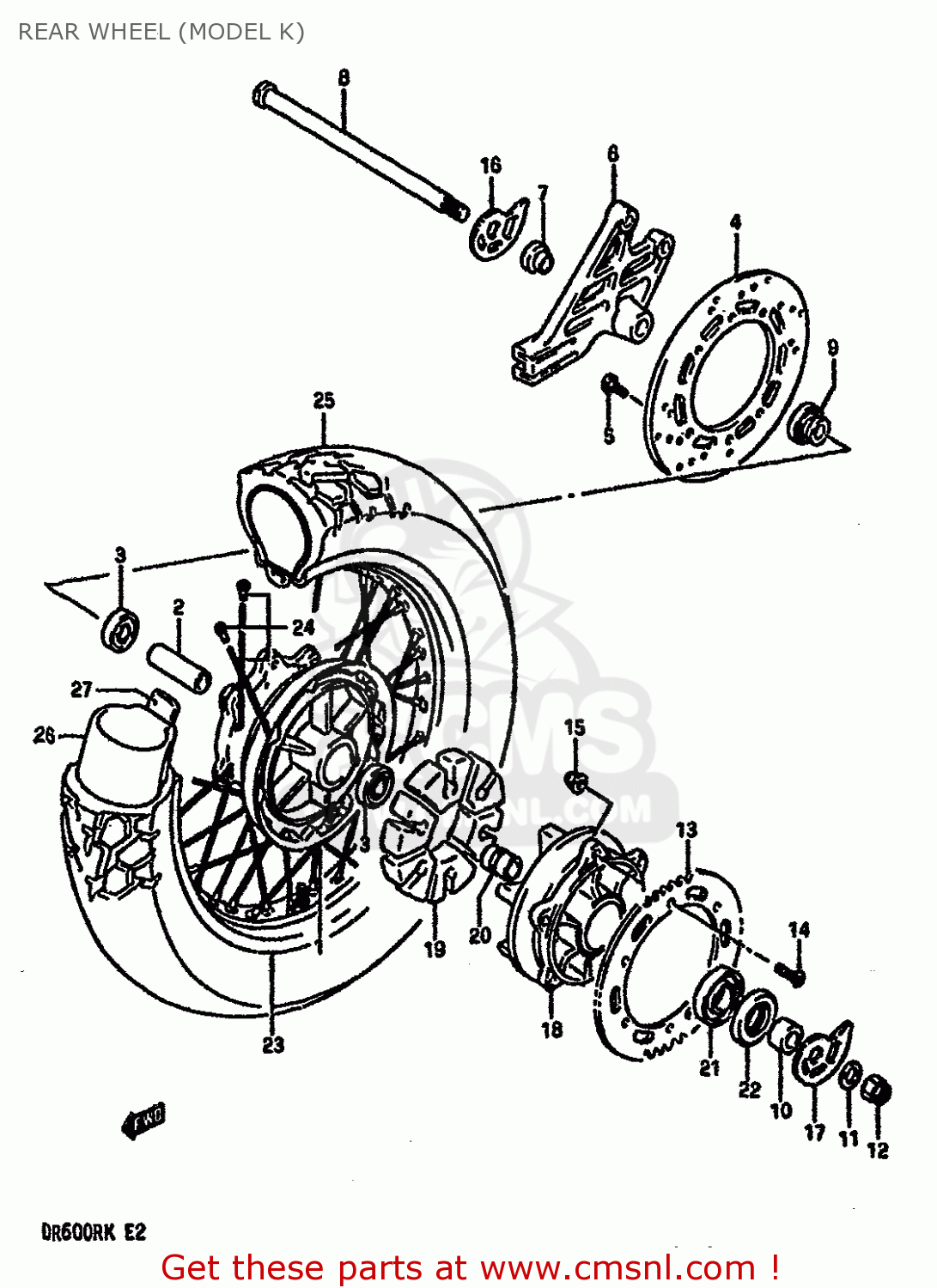

Rear wheel (model k) diagram DR600RU 1989 (K)
REAR WHEEL (MODEL K) DR600RU 1989 (K)
×
prices are in EUR
ref
part #
description
quantity
1
6411044B10
ref: 1
HUB COMP,REAR WHEEL
€ 358.00
2
0918017071
ref: 2
SPACER(17.5X25X78)
€ 20.00
3
0812463037
ref: 3
BEARING
€ 18.50
4
6921144B00
ref: 4
DISC,RR BRAKE
€ 370.00
5
5942103A01
ref: 5
BOLT,BRAKE DISC
€ 4.00
6
6972144B00
ref: 6
BRACKET,RR CALIPER
€ 103.00
7
0918017096
ref: 7
SPACER (17X21X10)
€ 14.00
8
6471144B10
ref: 8
AXLE,RR
€ 55.00
9
6475038211
ref: 9
SPACER,RR AXLE,L
€ 12.00
10
0918017090
ref: 10
SPACER(17X33X22.4)
€ 14.50
11
0916017013
ref: 11
WASHER (17X30X3.2)
€ 2.00
12
0915916002
ref: 12
NUT
€ 5.00
13
6451114A00
ref: 13
SPROCKET,REAR
€ 99.00
14
0912008010
ref: 14
BOLT(8X30.5)
€ 2.50
15
0831931087
ref: 15
NUT
€ 2.50
16
6141144B00
ref: 16
ADJUSTER,CHAIN,RH
€ 15.00
17
6142144B00
ref: 17
ADJUSTER,CHAIN,LH
€ 13.50
18
6461144B10
ref: 18
DRUM,REAR SPROCKET
€ 127.50
19
6465144B01
ref: 19
ABSORBER,RR HUB SHOCK
€ 10.50
20
6473331300
ref: 20
RETAINER,RR SPROCKET DRUM
€ 16.50
21
0926225073
ref: 21
BEARING(25X62X17)
€ 21.50
22
0928533001
ref: 22
SEAL,OIL(33X62X7)
€ 20.00
23
6531144B20
ref: 23
RIM,REAR WHEEL (MT2.50X17) (GOLD)
€ 377.50
24
6532044B10
ref: 24
SPOKE SET,RR
€ 79.00
25
6510044B00
ref: 25
IRC
TIRE
€ 133.00
26
6520044300
ref: 26
TUBE ASSEMBLY,WHEEL,INNER
€ 43.50
27
6526149010
ref: 27
PROTECTOR,INNER TUBE
€ 2.00
27
0831931087
ref: 27
NUT
€ 2.50
28
6141114A00
ref: 28
ADJUSTER,CHAIN RH
€ 13.00
29
6142114A00
ref: 29
ADJUSTER,CHAIN LH
€ 13.00
30
6461114A00
ref: 30
DRUM,RR SPROCKET MOUNTING
€ 468.50
31
6465114A00
ref: 31
CUSHION,REAR DRUM
€ 11.50
32
6473314A00
ref: 32
RETAINER,RR SPROCKET DRUM
€ 19.00
33
0926225061
ref: 33
BEARING(25X52X15)
€ 27.50
34-1
6531114A00
ref: 34-1
MODEL G
RIM,REAR WHEEL
€ 312.00
34-2
6531114A10
ref: 34-2
MODEL H/J
RIM,REAR WHEEL (2.50-17)(
€ 312.00
35
6532014A00
ref: 35
SPOKE SET,REAR WHEEL
€ 51.50
36
6510014A10
ref: 36
IRC
TIRE
€ 133.00
37
6520044300
ref: 37
TUBE ASSEMBLY,WHEEL,INNER
€ 43.50
38
6526149010
ref: 38
PROTECTOR,INNER TUBE
€ 2.00
