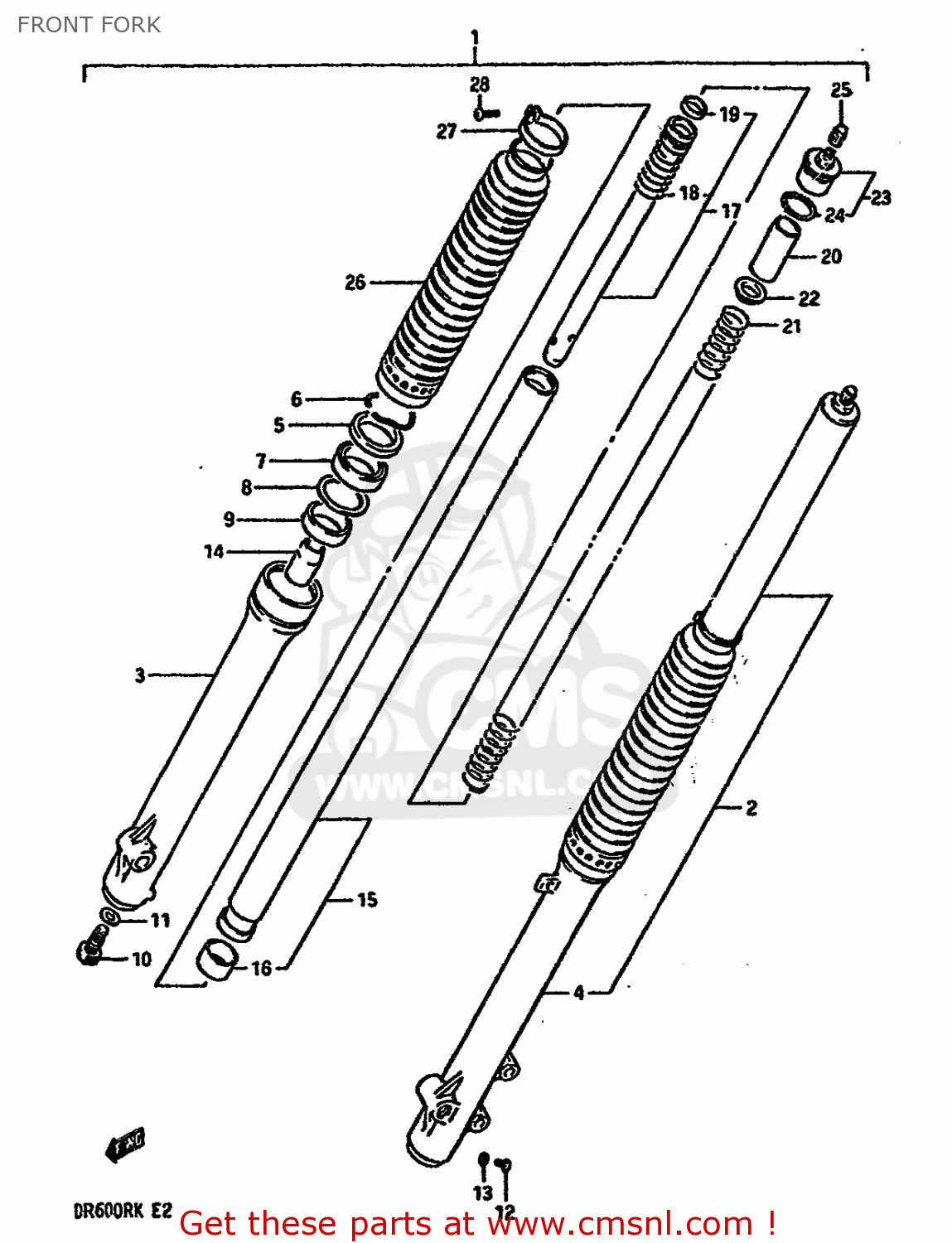

FRONT FORK

ref

part #

description

quantity

1

5110314A00
ref: 1

DAMPER ASSEMBLY,FRONT FORK,RIGHT

€ 0.00

2

5110414A00
ref: 2

DAMPER ASSEMBLY,FRONT FORK,LEFT

€ 0.00

3

5113014A00
ref: 3

TUBE,FORK,OUTER,RIGHT

€ 162.50

4

5114014A00
ref: 4

TUBE,FORK,LEFT,OUTER

€ 71.50

5

5117314A00
ref: 5

SEAL,DUST

€ 10.00

6

5115649440
ref: 6

RING,OIL SEAL STOPPER

€ 5.50

7

5115314A00
ref: 7

SEAL,OIL

€ 11.50

8

5115807A00
ref: 8

WASHER,FORK OIL SEAL

€ 4.00

9

5116707A00
ref: 9

METAL,FR FORK SLIDE

€ 9.00

10

5114740300
ref: 10

BOLT,CYLINDER

€ 5.50

11

5114840300
ref: 11

GASKET,CYLINDER (NAS)

€ 2.50

12

0211204068
ref: 12

SCREW 4X6

€ 2.00

13

5118303010
ref: 13

GASKET,DRAIN,PLUG (NAS)

€ 3.00

14

5119513A00
ref: 14

PIECE,FRONT FORK OIL LOCK

€ 0.00

15

5111014A00
ref: 15

TUBE,FORK,INNER

€ 240.50

16

5112107A00
ref: 16

METAL,SLIDE FR FORK

€ 18.50

17

5114614A00
ref: 17

CYLINDER,FRONT FORK

€ 0.00

18

5117714A00
ref: 18

SPRING,REBOUND

€ 0.00

19

5119614A00
ref: 19

RING,FRONT FORK PISTON

€ 6.50

20

5117614A00
ref: 20

SPACER,FRONT FORK SPRING

€ 6.00

21

5117114A00
ref: 21

SPRING,FRONT FORK

€ 61.00

22

5117214A00
ref: 22

GUIDE,FR FORK SPRING

€ 6.00

23

5135114A00
ref: 23

CAP,FORK INNER TUBE

€ 28.00

24

5111714A00
ref: 24

O RING

€ 3.00

25

5129420400
ref: 25

CAP

€ 3.50

26-1

5157114A0019F
ref: 26-1
MODEL G

BOOT

€ 51.00

26-2

5157114A0034S
ref: 26-2
MODEL H/J/K

BOOT

€ 51.00

27

5157540300
ref: 27

BAND,BOOT

€ 9.00

28

0211204108
ref: 28

SCREW 4X10

€ 2.00

all assemblies
