FRONT MASTER CYLINDER

DR600RU 1989 (K)

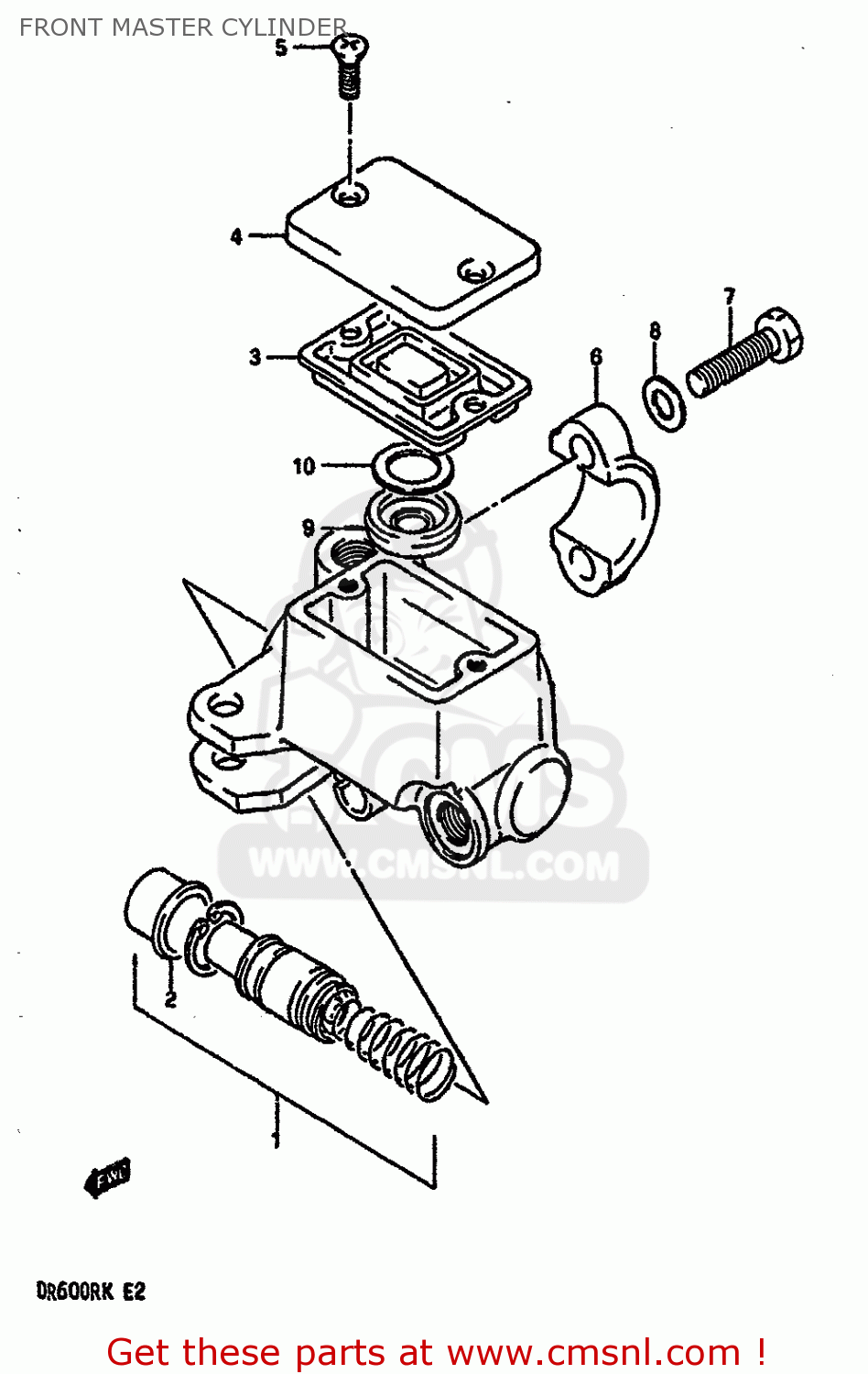

Front master cylinder diagram DR600RU 1989 (K)

FRONT MASTER CYLINDER DR600RU 1989 (K)

FRONT MASTER CYLINDER DR600RU 1989 (K)

prices are in EUR

ref

part #

description

quantity

0

5960014A01
ref: 0
MODEL G/H/J

CYLINDER ASSEMBLY,FRONT MASTER

€ 206.50

0

5960014A20
ref: 0
MODEL K

CYLINDER ASSY,FR MASTER

€ 206.50

0

5960013A20
ref: 0
MODEL G/H/J E22

CYLINDER ASSEMBLY,FRONT MASTER

€ 191.50

0

5960013A60
ref: 0
MODEL K E22

CYLINDER ASSY,FR MASTER

€ 191.50

1-1

5960003810
ref: 1-1

PISTON & CUP SET

€ 32.00

1-2

5960013820
ref: 1-2
E22

PISTON/CUP SET

€ 40.50

2

5966644300
ref: 2

BOOT

€ 6.00

3

5966704700
ref: 3

DIAPHRAGM

€ 8.00

4-1

5966904710
ref: 4-1
MODEL G/H/J

CAP

€ 12.00

4-2

6966924A00
ref: 4-2
MODEL K

CAP

€ 12.00

5

6968949300
ref: 5

SCREW

€ 1.50

6

5967136500
ref: 6

HOLDER

€ 10.00

7

0110706255
ref: 7

BOLT

€ 2.50

8

0832221064
ref: 8

WASHER

€ 2.00

9

5974815400
ref: 9

SEPERATOR

€ 7.50

10

5974915400
ref: 10

PLATE

€ 2.00
