BALANCER CHAIN

DR600S 1988 (J) (E02 E04 E15 E16 E17 E18 E21 E22 E34 E53)

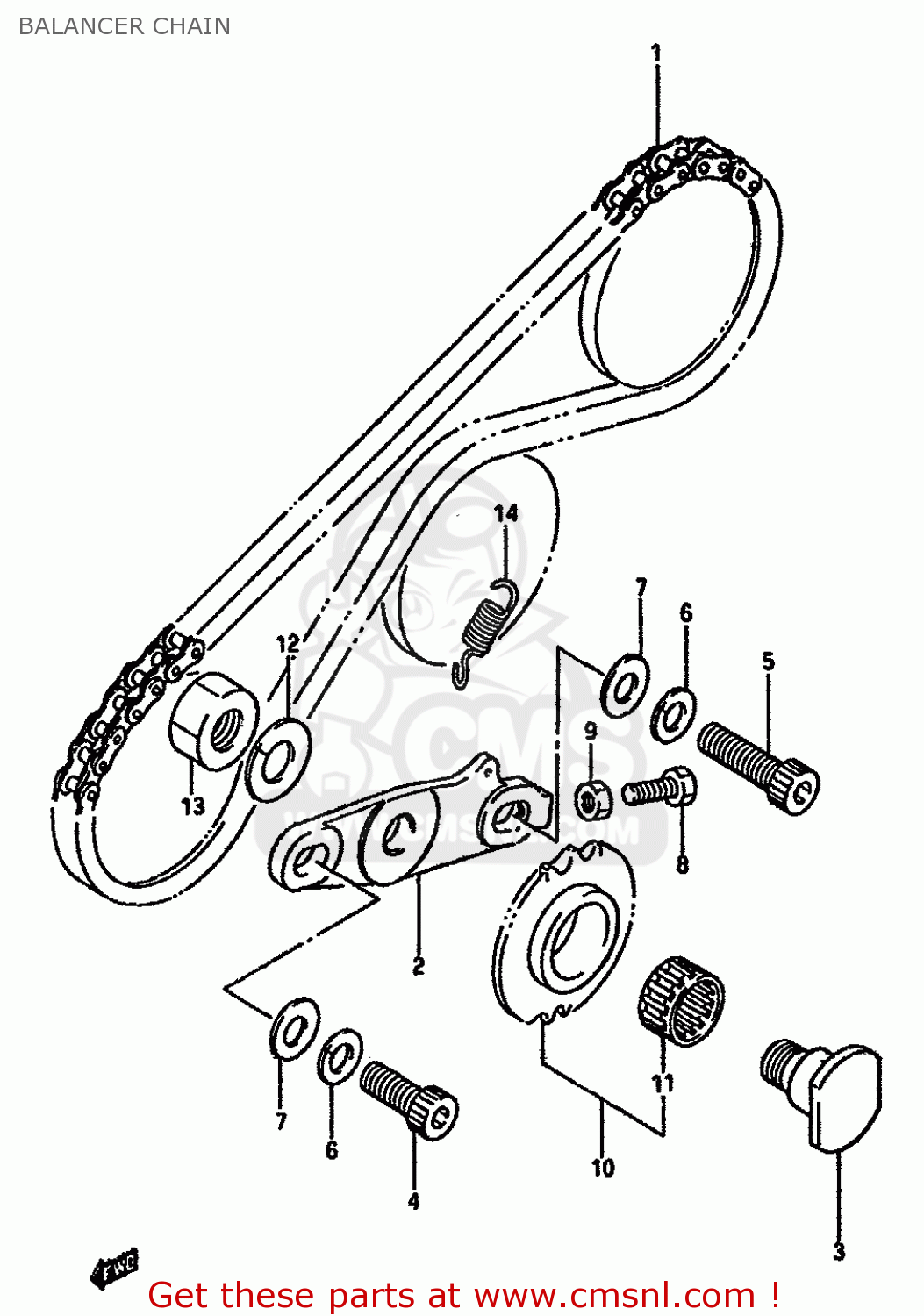

Balancer chain diagram DR600S 1988 (J) (E02 E04 E15 E16 E17 E18 E21 E22 E34 E53)

prices are in EUR

ref

part #

description

quantity

1267014A00
ref: 1

CHAIN,BALANCER

€ 89.50

1268114A02
ref: 2

BRACKET,BALANCER CHAIN

€ 56.50

1268214A01
ref: 3

SHAFT,BALANCER CHAIN TENSIONER

€ 29.00

0910608005
ref: 4

BOLT(8X22)

€ 2.00

0711008305
ref: 5

BOLT, REAR (8X30)

€ 3.00

0832121088
ref: 6

LOCK WASHER

€ 2.00

0832221088
ref: 7

WASHER

€ 2.00

0910005006
ref: 8

BOLT 5X20

€ 1.50

0831022058
ref: 9

NUT

€ 2.50

1268514A10
ref: 10

SPROCKET,BALANCER CHAIN

€ 44.00

0926317007
ref: 11

BEARING(17X23X12)

€ 13.00

0832121128
ref: 12

WASHER,LOCK 12

€ 2.50

0914012021
ref: 13

NUT

€ 2.50

0944310022
ref: 14

SPRING

€ 4.00
