STEERING STEM

DR600S 1988 (J) (E02 E04 E15 E16 E17 E18 E21 E22 E34 E53)

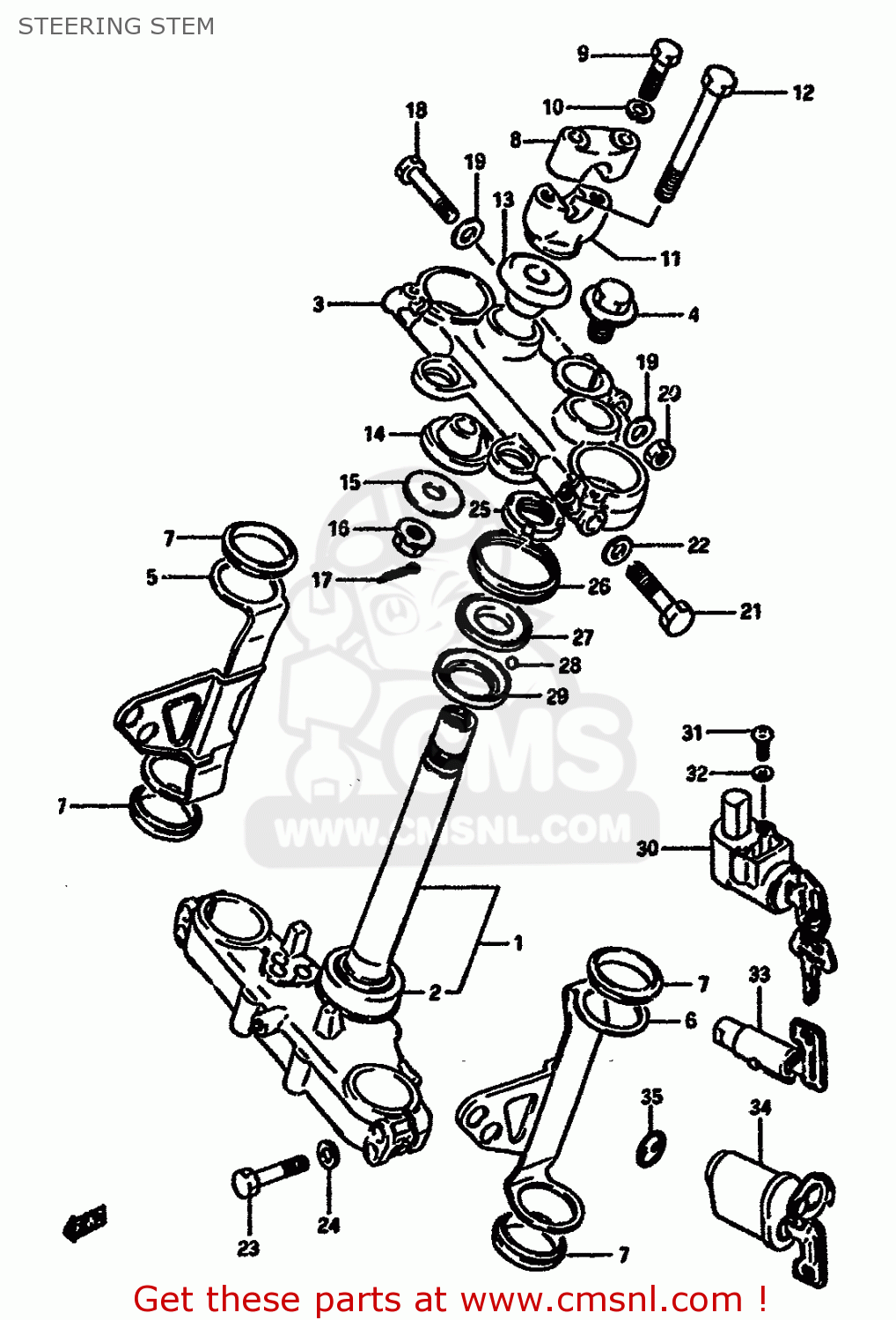

Steering stem diagram DR600S 1988 (J) (E02 E04 E15 E16 E17 E18 E21 E22 E34 E53)

STEERING STEM DR600S 1988 (J) (E02 E04 E15 E16 E17 E18 E21 E22 E34 E53)
STEERING STEM DR600S 1988 (J) (E02 E04 E15 E16 E17 E18 E21 E22 E34 E53)
STEERING STEM DR600S 1988 (J) (E02 E04 E15 E16 E17 E18 E21 E22 E34 E53)
prices are in EUR
ref
part #
description
quantity
1
5141014A10
ref: 1
STEM,STEERING
5141014A10
€ 259.50
2
0926530005
ref: 2
BEARING
0926530005
€ 49.50
3
5131114A00
ref: 3
HEAD,STEERING STEM
5131114A00
€ 108.00
4
5135314A00
ref: 4
BOLT,STEERING STEM
5135314A00
€ 9.50
5
5153014A00
ref: 5
COVER,FORK,RIGHT
5153014A00
€ 33.00
6
5154014A00
ref: 6
BRACKET,HEADLAMP,LEFT
5154014A00
€ 30.50
7
5155314A00
ref: 7
CUSHION,HEAD LAMP BRACKET
€ 4.50
8
5621127210019
ref: 8
HOLDER,HANDLEBAR
5621127210019
€ 12.00
9
0110708355
ref: 9
BOLT
€ 3.50
10
0832131084
ref: 10
LOCK WASHER
€ 2.50
11
5622114330291
ref: 11
HOLDER,HANDLE LWR
5622114330291
€ 25.50
12
5132114200
ref: 12
BOLT,HANDLE HOLDER
5132114200
€ 6.50
13
5624114A00
ref: 13
DAMPER,UPR
5624114A00
€ 25.00
14
5624214200
ref: 14
DAMPER,LWR
5624214200
€ 21.50
15
5135640400
ref: 15
WASHER,HANDLEBAR HOLDER
€ 2.00
16
0831931107
ref: 16
NUT
0831931107
€ 3.00
17
0411120308
ref: 17
COTTER PIN
€ 1.00
18
0110708505
ref: 18
BOLT
€ 3.00
19
0832211084
ref: 19
WASHER
0832211084
€ 1.50
20
0831012085
ref: 20
NUT ,8MM
0831012085
€ 1.50
21
0110710455
ref: 21
BOLT
€ 2.00
22
0832131105
ref: 22
LOCK WASHER
€ 3.00
23
0110708455
ref: 23
BOLT
€ 2.50
24
0832131084
ref: 24
LOCK WASHER
€ 2.50
25
5163140200
ref: 25
NUT,STEERING STEM
5163140200
€ 12.00
26
5164340200
ref: 26
SEAL,STEERING UPR DUST
5164340200
€ 7.50
27
5162140200
ref: 27
RACE,STEERING,OUTER,UPPER
5162140200
€ 17.00
28
0611108003
ref: 28
BALL
0611108003
€ 1.50
29
5161140201
ref: 29
RACE,STEERING INNER (SUJ)
5161140201
€ 8.50
30
5190030831
ref: 30
LOCK ASSY,STEERING
5190030831
€ 30.00
31
0211205128
ref: 31
SCREW
€ 2.50
32
0832121057
ref: 32
LOCK WASHER
0832121057
€ 2.00
33
5190030901
ref: 33
E15,E22,MODEL H/J/K
LOCK ASSY,STEERING(NEIMAN)
5190030901
€ 168.50
34
5190045400
ref: 34
MODEL F/G E17
LOCK ASSY, STEERING (NEIMAN TYPE EXECUTE
€ 0.00
35
5191545000
ref: 35
E17
LABEL,STEERING LOCK
5191545000
€ 1.50
