REAR SHOCK ABSORBER

DR600S 1988 (J) (E02 E04 E15 E16 E17 E18 E21 E22 E34 E53)

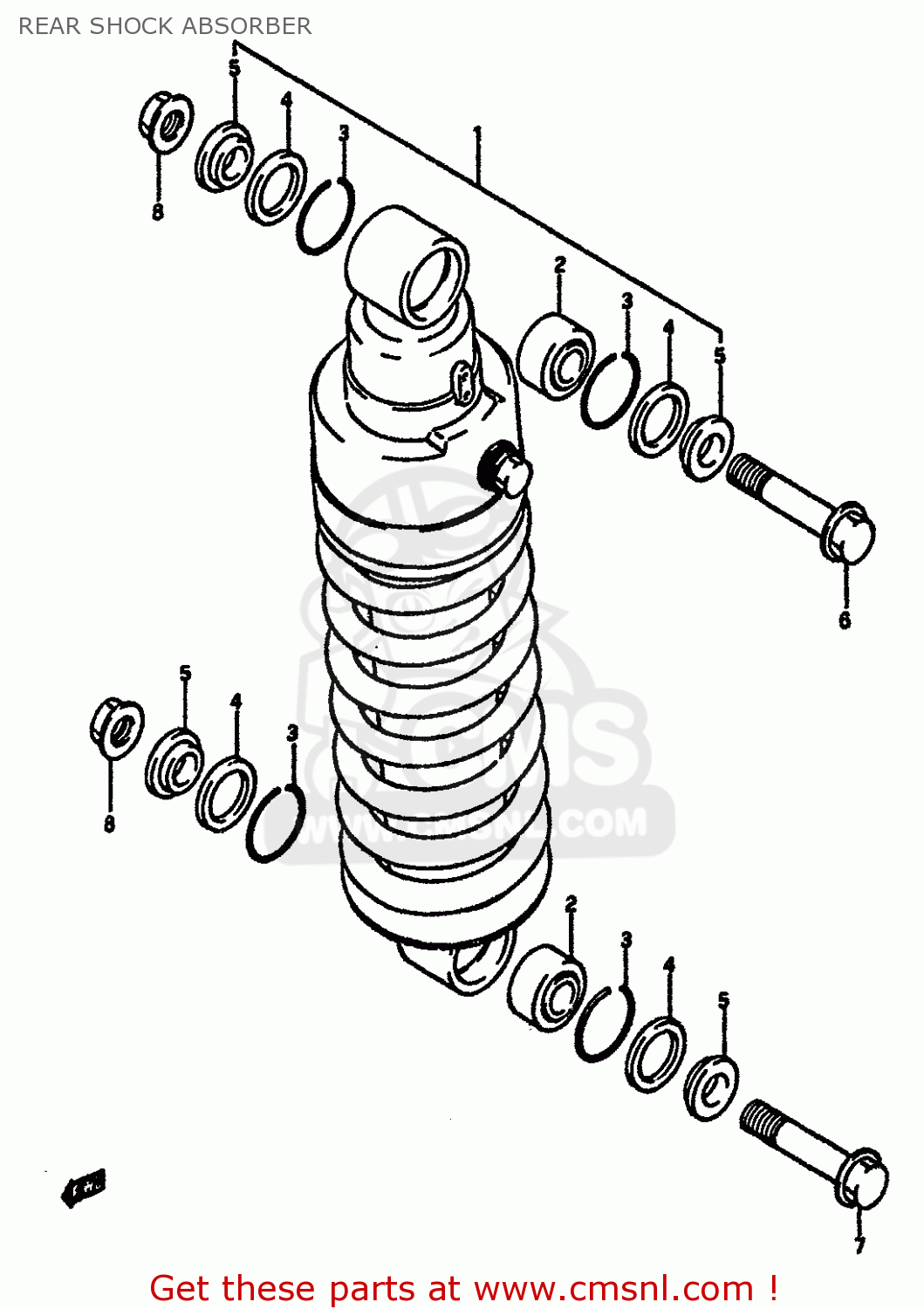

Rear shock absorber diagram DR600S 1988 (J) (E02 E04 E15 E16 E17 E18 E21 E22 E34 E53)

prices are in EUR

ref

part #

description

quantity

1-1

6210014A00019
ref: 1-1
MODEL F

ABSORBER ASSEMBLY,REAR SHOCK

€ 724.00

1-2

6210014A0019F
ref: 1-2
MODEL F

ABSORBER ASSY,REAR SHOCK (BLUE)

€ 724.00

1-3

6210014A02019
ref: 1-3
MODEL G/H/J/K

ABSORBER ASSEMBLY,REAR SHOCK

€ 724.00

1-4

6210014A0219F
ref: 1-4
MODEL G

ABSORBER ASSY, REAR SHOCK (BLUE)

€ 724.00

1-5

6210014A0234S
ref: 1-5
MODEL H/J/K

ABSORBER ASSY, REAR SHOCK (BLUE)

€ 724.00

6217543400
ref: 2

BEARING,REAR SHOCK ABSORBER

€ 66.00

6227714200
ref: 3

RING

€ 1.50

4-1

6222643410
ref: 4-1
MODEL F

SEAL,DUST

€ 7.50

4-2

6222614520
ref: 4-2
MODEL G/H/J/K

SEAL,DUST RR SHOCK ABSORBER

€ 12.50

5-1

6268443401
ref: 5-1
MODEL F

SPACER

€ 7.00

5-2

6268414520
ref: 5-2
MODEL G/H/J/K

COLLAR

€ 7.00

0910310040
ref: 6

BOLT(10X54)

€ 5.50

0910310030
ref: 7

BOLT(10X52)

€ 8.50

0831931107
ref: 8

NUT

€ 3.00

REAR SHOCK ABSORBER

all assemblies
