MAGNETO (MODEL F)

DR600S 1988 (J) (E02 E04 E15 E16 E17 E18 E21 E22 E34 E53)

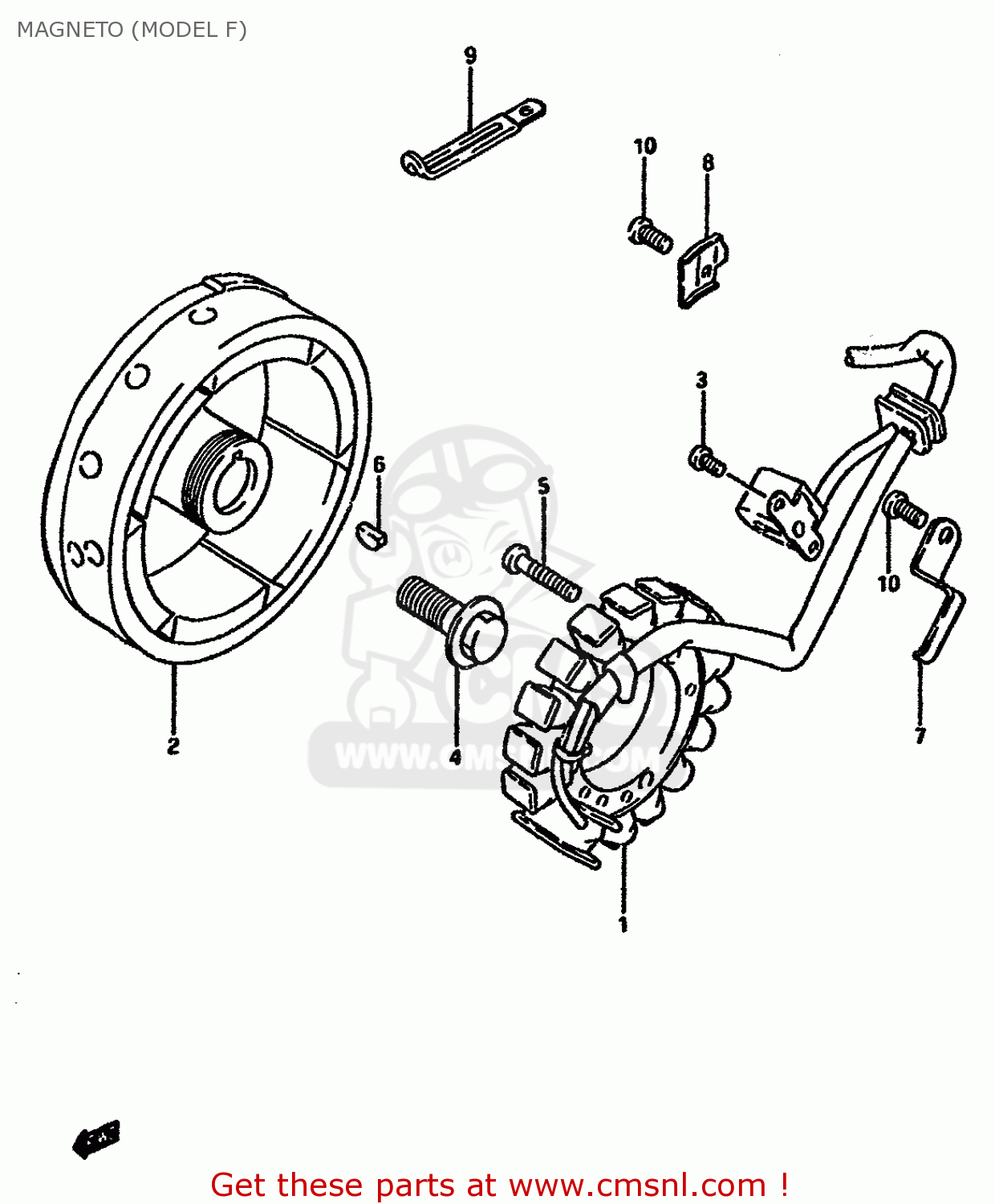

Magneto (model f) diagram DR600S 1988 (J) (E02 E04 E15 E16 E17 E18 E21 E22 E34 E53)

prices are in EUR

ref

part #

description

quantity

3210114A00
ref: 1

STARTER ASSY

€ 676.50

3210214A10
ref: 2

ROTOR,FLYWHEEL

€ 439.00

0211205126
ref: 3

SCREW 5X12

€ 1.50

0910314001
ref: 4

BOLT(14X43)

€ 7.00

0211206306
ref: 5

SCREW,6X30

€ 2.50

0834131049
ref: 6

KEY 4MM

€ 3.50

3237137400
ref: 7

CLAMP,MAGNETO LEAD WIRE

€ 1.50

3237137410
ref: 8

CLAMP,MAGNETO LEAD WIRE

€ 1.50

0940406412
ref: 9

CLAMP

€ 2.50

0211206106
ref: 10

SCREW

€ 1.50
