CRANK BALANCER

DR600S 1988 (J) (E02 E04 E15 E16 E17 E18 E21 E22 E34 E53)

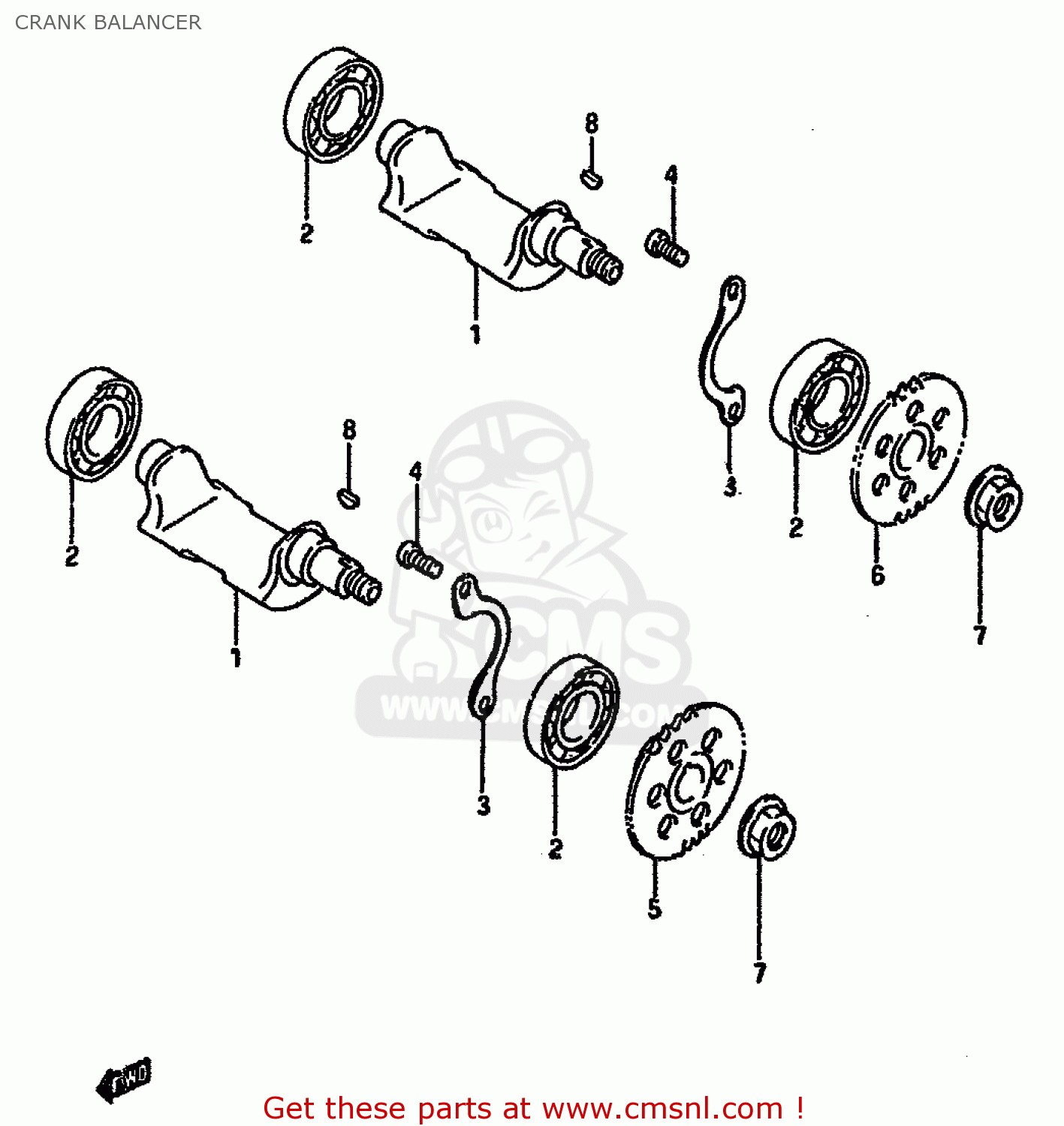

Crank balancer diagram DR600S 1988 (J) (E02 E04 E15 E16 E17 E18 E21 E22 E34 E53)

CRANK BALANCER DR600S 1988 (J) (E02 E04 E15 E16 E17 E18 E21 E22 E34 E53)

CRANK BALANCER DR600S 1988 (J) (E02 E04 E15 E16 E17 E18 E21 E22 E34 E53)

prices are in EUR

ref

part #

description

quantity

1

1265114A01
ref: 1

BALANCER,CRANKSHAFT

€ 73.50

2

0926220057
ref: 2

BEARING

€ 20.50

3

1265937400
ref: 3

RETAINER,CRANK BAL BEARING

€ 2.00

4

0211206126
ref: 4

SCREW

€ 1.50

5

1266514A10
ref: 5

SPROCKET,BALANCER DRIVE

€ 23.50

6

1267514A10
ref: 6

SPROCKET,BALANCER DRIVE

€ 23.50

7

0915910014
ref: 7

NUT

€ 2.00

8

0834131039
ref: 8

KEY

€ 2.00
