MUFFLER
DR650R 1994 (R) (E04 E21 E22 E53)

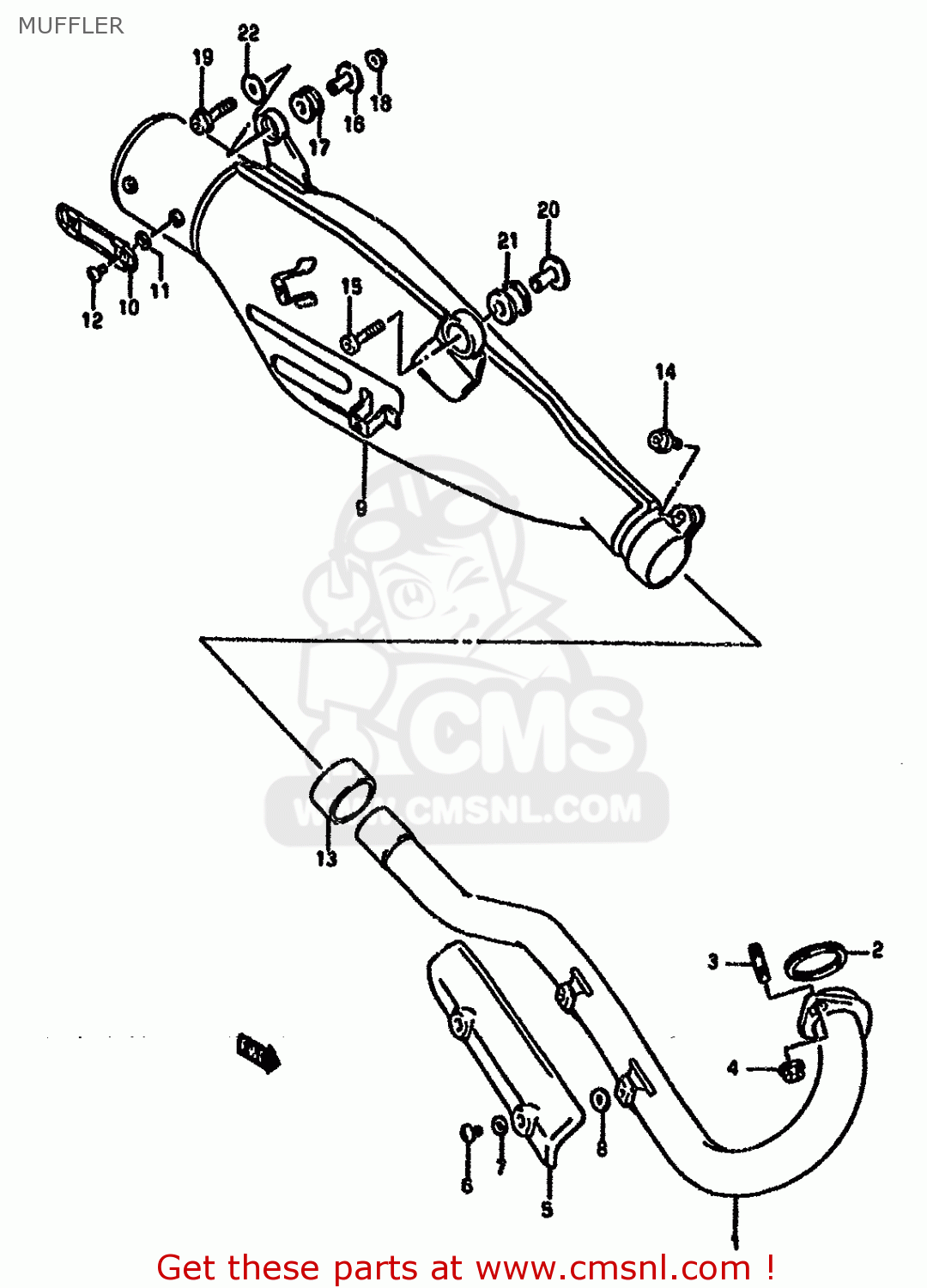

Muffler diagram DR650R 1994 (R) (E04 E21 E22 E53)
MUFFLER DR650R 1994 (R) (E04 E21 E22 E53)
×
prices are in EUR
ref
part #
description
quantity
1
1415014A22
ref: 1
PIPE,EXHAUST
€ 149.00
2
1418101D00
ref: 2
GASKET,EXHAUST PIPE (NAS)
€ 8.00
3
0910808106
ref: 3
BOLT,STUD(8X20)
€ 3.00
4
0915908085
ref: 4
NUT
€ 1.50
5
1418012D00
ref: 5
COVER,EXHAUST PIPE
€ 38.00
6
0913906076
ref: 6
SCREW(6X10)
€ 2.50
7
0916006082
ref: 7
WASHER(6.5X13X1.0)
€ 1.50
8
0916806122
ref: 8
GASKET(6X16X1.4) (NAS)
€ 2.50
9-1
1431012E00
ref: 9-1
MODEL N
BODY,MUFFLER
€ 804.00
9-2
1431012E01
ref: 9-2
MODEL P
BODY,MUFFLER
€ 804.00
9-3
1431012E02
ref: 9-3
MODEL R
BODY,MUFFLER
€ 804.00
10
1478012E00
ref: 10
COVER,MUFFLER
€ 23.50
11
0916806121
ref: 11
GASKET(5.8X13X1.8) (NAS)
€ 3.00
12
0913906076
ref: 12
SCREW(6X10)
€ 2.50
13
1477144B00
ref: 13
CONNECTOR,MUFFLER
€ 19.50
14-1
0712008405
ref: 14-1
MODEL N/P
BOLT
€ 3.50
14-2
0712008403
ref: 14-2
MODEL R
BOLT
€ 3.50
15
0910608074
ref: 15
FR
BOLT(8X40)
€ 3.50
16
0918008151
ref: 16
SPACER(8.6X12X17.5)
€ 6.00
17
0932012043
ref: 17
CUSHION
€ 8.00
18
0831931085
ref: 18
NUT
€ 2.50
19-1
0712008455
ref: 19-1
RR,MODEL N/P
BOLT 8X45
€ 3.50
19-2
0712008453
ref: 19-2
RR,MODEL R
BOLT
€ 3.50
20
0918008152
ref: 20
SPACER(8.6X12X24.2)
€ 6.00
21
0932012048
ref: 21
CUSHION
€ 5.00
22
0916008057
ref: 22
WASHER (8.5X20X1.6)
€ 2.00
