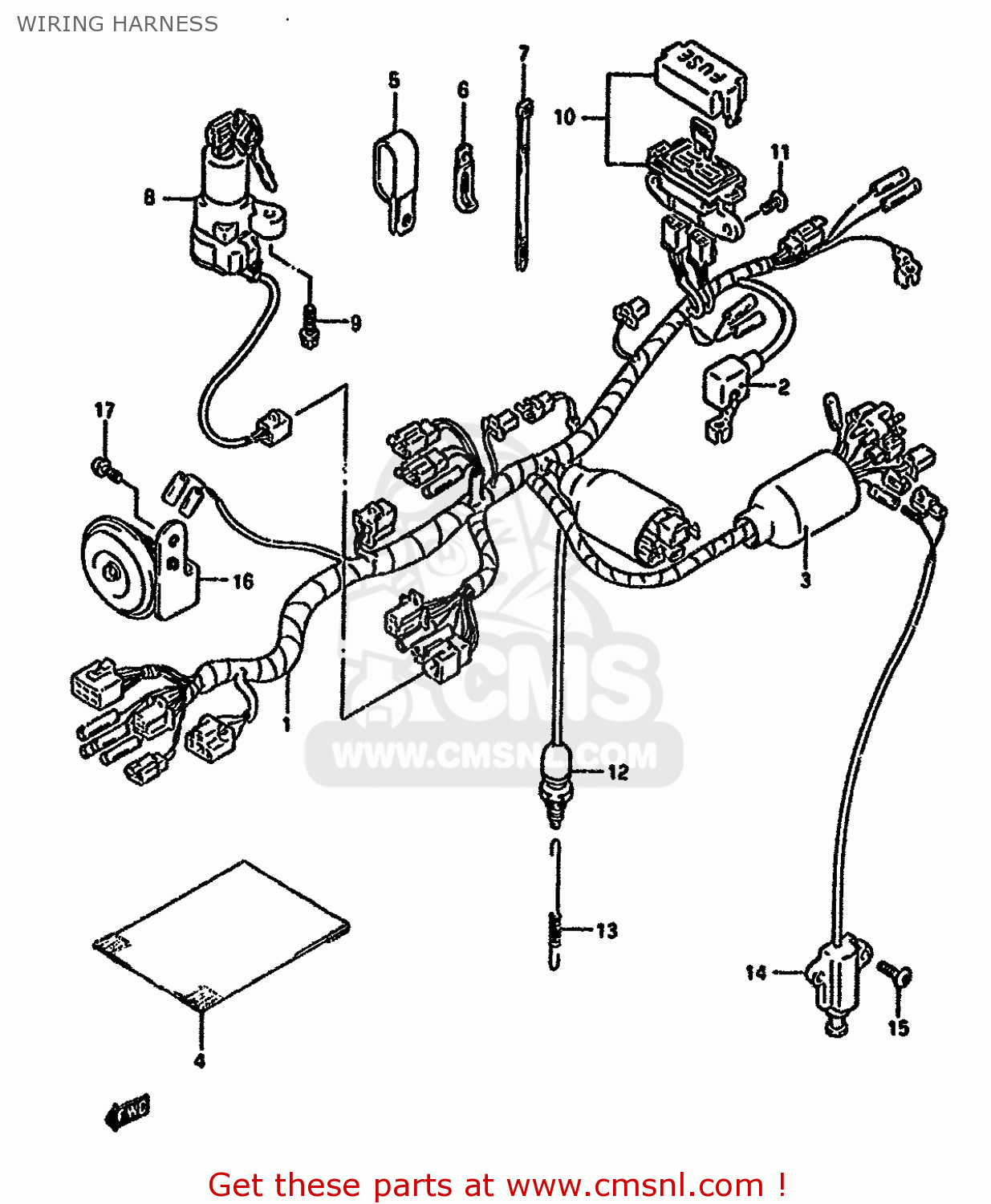

WIRING HARNESS

ref

part #

description

quantity

1-1

3661012E00
ref: 1-1
MODEL N/P

HARNESS,WIRING

€ 367.00

1-2

3661012E30
ref: 1-2
MODEL R

HARNESS,WIRING

€ 0.00

2

3362444B00
ref: 2

CAP,BATTERY TERMINAL

€ 6.00

3

3661830000
ref: 3

BOOT,WIRING HARNESS

€ 8.50

4

3661844B01
ref: 4
MODEL N

BOOT,WIRING HARNESS

€ 12.00

5-1

0940307315
ref: 5-1

CLAMP

€ 3.50

5-2

0940310307
ref: 5-2
MODEL N

CLAMP

€ 3.00

5-3

0940319406
ref: 5-3

CLAMP

€ 3.50

6-1

0940405401
ref: 6-1

CLAMP

€ 2.50

6-2

0940406401
ref: 6-2

CLAMP L:35

€ 2.50

6-3

0940406607
ref: 6-3

CLAMP(L:55)

€ 3.00

6-4

0940408405
ref: 6-4

CLAMP

€ 3.50

6-5

0940408404
ref: 6-5

CLAMP

€ 3.00

7-1

0940712402
ref: 7-1

CLAMP(L:120)

€ 3.00

7-2

0940714403
ref: 7-2

CLAMP(L:125)

€ 2.50

7-3

0940718402
ref: 7-3

CLAMP(L:165)

€ 2.50

7-4

0940725401
ref: 7-4

CLAMP(L:235)

€ 4.00

7-5

0940730401
ref: 7-5

CLAMP(L:300)

€ 4.50

8-1

3710012D10
ref: 8-1
MODEL P E4,E18

LOCK ASSEMBLY,STEERING

€ 128.00

8-2

3710012E00
ref: 8-2
MODEL N

LOCK ASSEMBLY,STEERING

€ 128.00

8-3

3710012E01
ref: 8-3
MODEL P

LOCK ASSEMBLY,STEERING

€ 128.00

8-4

3710012D11
ref: 8-4
MODEL R

LOCK ASSY,STEERING

€ 128.00

9

0913906026
ref: 9

SCREW(6X18)

€ 2.50

10

3674012E00
ref: 10

BOX ASSEMBLY,FUSE

€ 36.50

11

0214206126
ref: 11

SCREW

€ 2.00

12

3774045D00
ref: 12

SWITCH ASSY,STOP LAMP

€ 20.50

13

0944306079
ref: 13

SPRING

€ 4.00

14-1

3784044A11
ref: 14-1
MODEL N/P

SWITCH ASSEMBLY,SIDE STAND

€ 75.50

14-2

3784044A20
ref: 14-2
MODEL R

SWITCH ASSEMBLY,SIDE STAND

€ 75.50

15-1

0214206205
ref: 15-1
MODEL N/P

SCREW, CENTER

€ 2.00

15-2

0211206203
ref: 15-2
MODEL R

SCREW, 6X20

€ 2.00

16-1

3850014A20
ref: 16-1
MODEL N/P

HORN ASSEMBLY

€ 48.00

16-2

3850044B10
ref: 16-2
MODEL R

HORN ASSEMBLY

€ 48.00

17-1

0113706125
ref: 17-1
MODEL N/P

BOLT, BRACKET (6X12)

€ 1.50

17-2

0157006123
ref: 17-2
MODEL R

BOLT

€ 1.50

all assemblies
