REAR CALIPER
DR650R 1994 (R) (E04 E21 E22 E53)

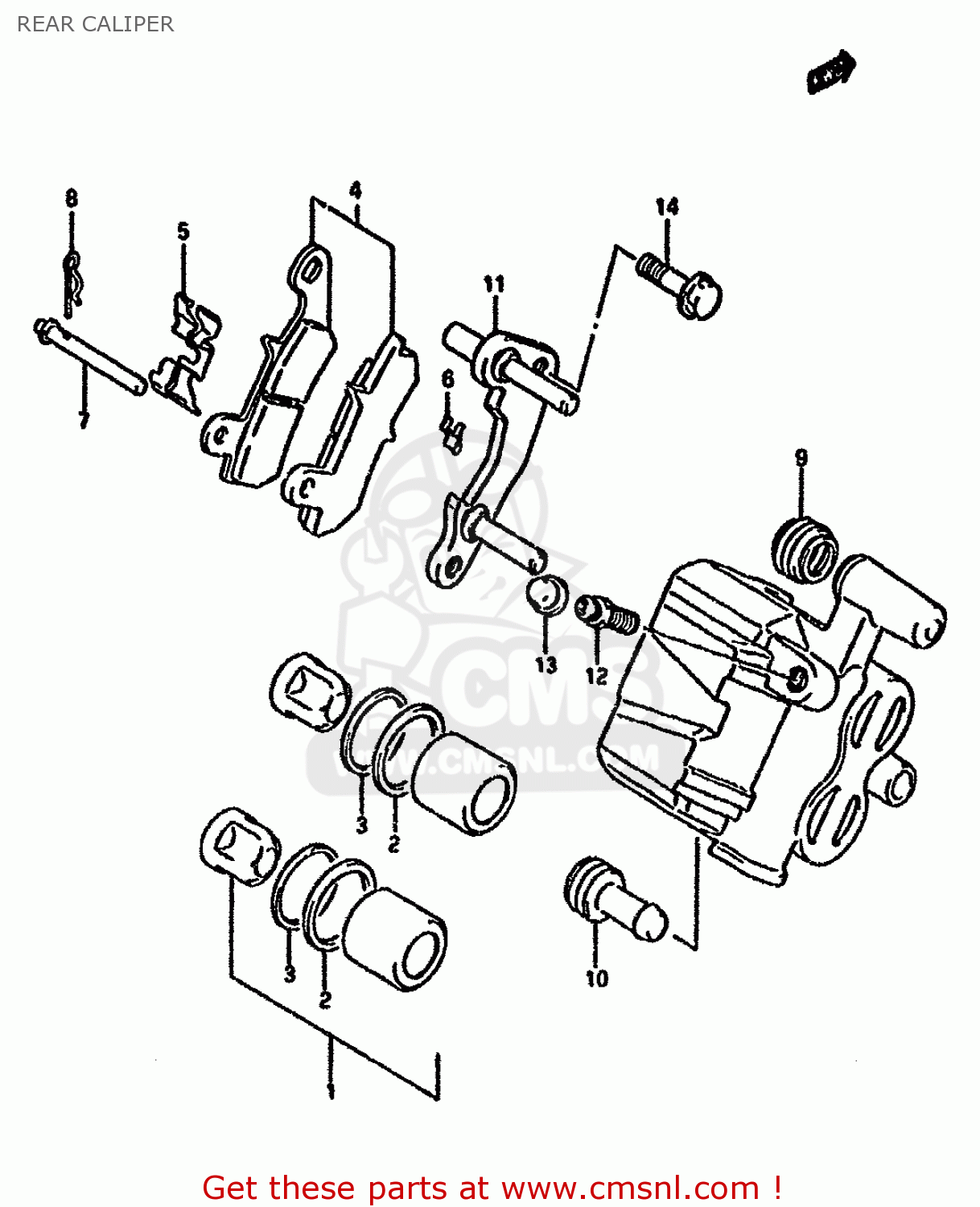

Rear caliper diagram DR650R 1994 (R) (E04 E21 E22 E53)
REAR CALIPER DR650R 1994 (R) (E04 E21 E22 E53)
×
prices are in EUR
ref
part #
description
quantity
0
6910012D01
ref: 0
CALIPER ASSY,RR
€ 545.00
1
6910044850
ref: 1
BRAKE PISTON SET
€ 71.50
2
5910704A00
ref: 2
SEAL,PISTON
€ 12.00
3
5910804A00
ref: 3
SEAL,WIPER
€ 10.50
4
6910012810
ref: 4
PAD SET (NAS)
€ 49.00
5
6911544B00
ref: 5
SPRING,PAD
€ 6.50
6
6911644B00
ref: 6
GUIDE,PAD
€ 8.00
7
6914144B01
ref: 7
PIN,PAD
€ 8.00
8
6914245000
ref: 8
CLIP,PAD PIN
€ 4.50
9
5931236500
ref: 9
BOOT,AXLE
€ 4.00
10
5931336500
ref: 10
INSULATOR,AXLE
€ 5.50
11
6915044B00
ref: 11
CARRIER
€ 62.50
12
5912118410
ref: 12
BLEEDER
€ 8.00
13
5912218410
ref: 13
CAP,BREATHER
€ 6.00
14
0910308259
ref: 14
BOLT(8X22)
€ 4.50
