AIR CLEANER
DR650RSE 1995 (S) (E04 E18 E22 E34 E37)

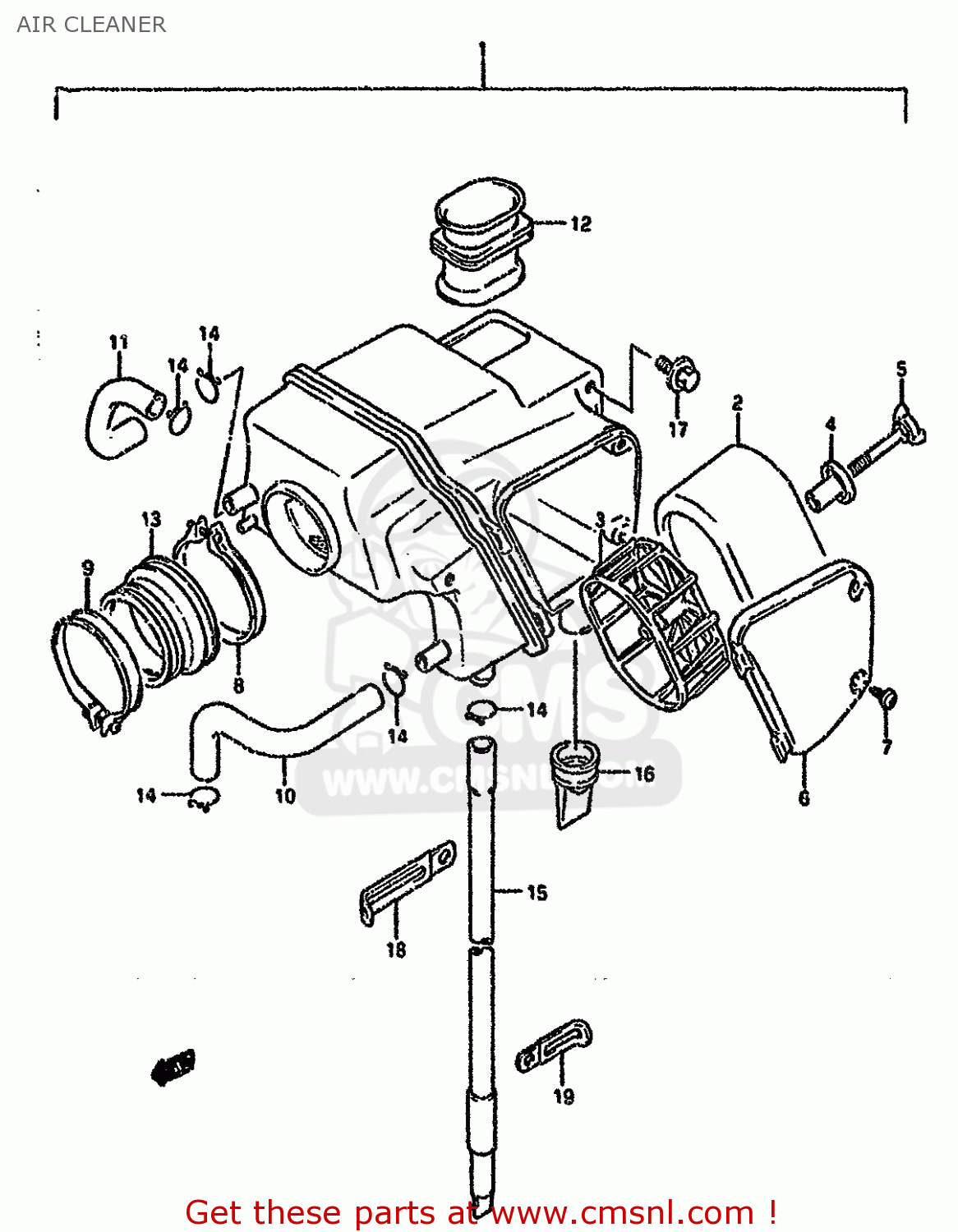

Air cleaner diagram DR650RSE 1995 (S) (E04 E18 E22 E34 E37)
AIR CLEANER DR650RSE 1995 (S) (E04 E18 E22 E34 E37)
×
prices are in EUR
ref
part #
description
quantity
1-1
1370012D20
ref: 1-1
MODEL M/N
CLEANER ASSEMBLY,AIR
€ 157.00
1-2
1370012D41
ref: 1-2
MODEL P/R/S/T
CLEANER ASSY,AIR
€ 242.00
2
1378012D00
ref: 2
FILTER
€ 24.50
3
1379112D00
ref: 3
HOLDER,FILTER
€ 13.00
4
1379612D00
ref: 4
SPACER
€ 2.50
5
1374579120
ref: 5
BOLT,WING
€ 2.00
6
1374012D00
ref: 6
CAP,AIR CLEANER
€ 17.00
7
0214205163
ref: 7
SCREW
€ 2.50
8
0940274207
ref: 8
CLAMP
€ 3.50
9
0940264203
ref: 9
-09402-64208
CLAMP
€ 6.00
10-1
1385112D10
ref: 10-1
MODEL M/N
TUBE,BREATHER
€ 26.00
10-2
1385112D10
ref: 10-2
MODEL P/R/S/T
TUBE,BREATHER
€ 26.00
11
1377112D00
ref: 11
TUBE,CONNECTING
€ 18.00
12-1
1389112D00
ref: 12-1
MODEL M/N
TUBE,INLET
€ 13.50
12-2
1389112D10
ref: 12-2
MODEL P/R/S/T
TUBE,INLET
€ 16.50
13
1388112D00
ref: 13
TUBE,OUTLET
€ 18.00
14
0940114301
ref: 14
CLIP
€ 2.00
15
1387011458
ref: 15
TUBE,DRAIN
€ 13.50
16
1387812D00
ref: 16
CAP,DRAIN
€ 4.50
17
0911606151
ref: 17
BOLT(6X14)
€ 3.00
18-1
0940408420
ref: 18-1
MODEL M/N/P/R
CLAMP(L:120 T:1.0)
€ 3.50
18-2
0940408418
ref: 18-2
MODEL S/T
CLAMP(L:65)
€ 3.50
19-1
0940406402
ref: 19-1
MODEL M/N/P/R
CLAMP
€ 2.50
19-2
0940406429
ref: 19-2
MODEL S/T
CLAMP(L:45)
€ 2.50
