CAM CHAIN
DR650RSE 1995 (S) (E04 E18 E22 E34 E37)

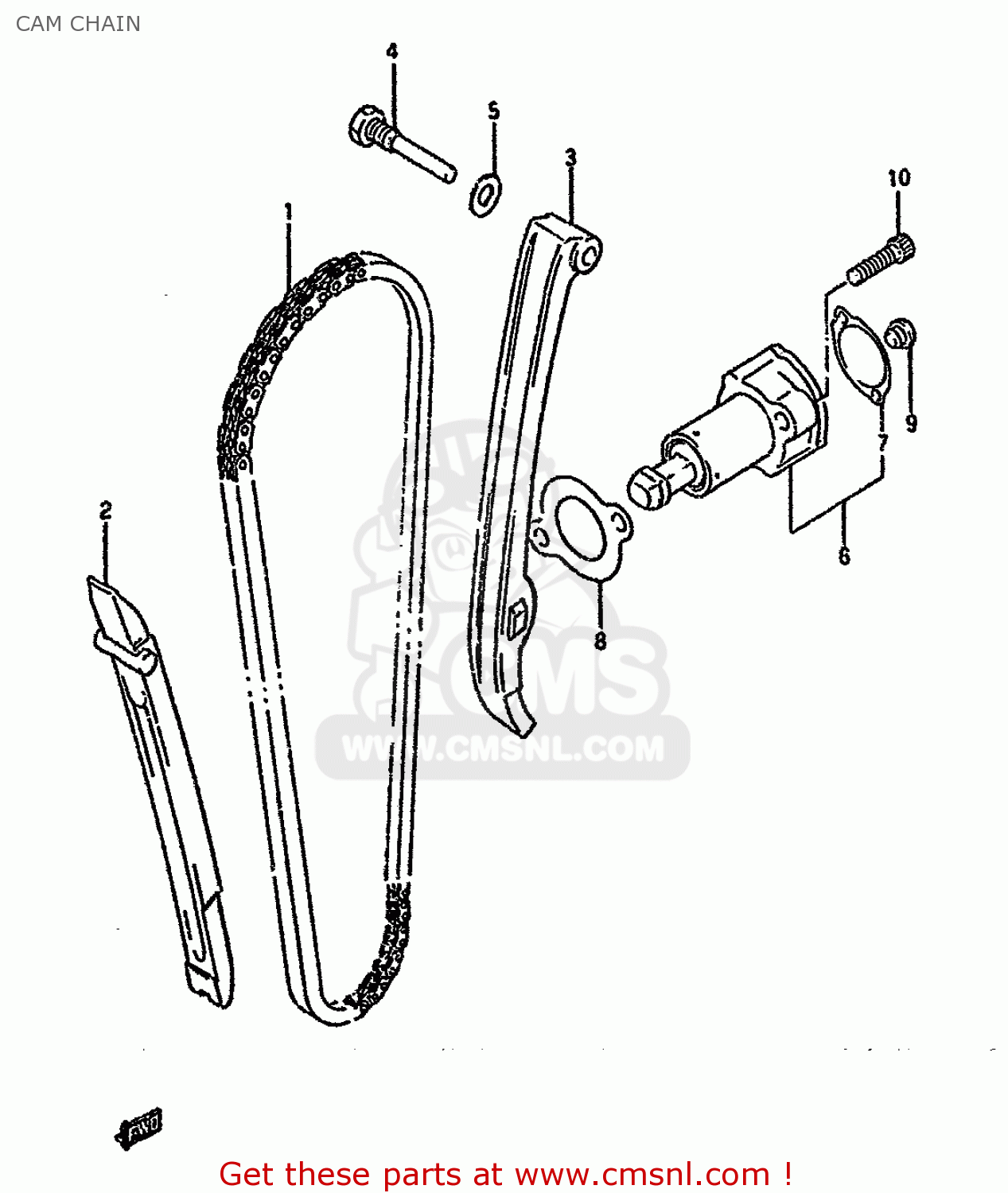

Cam chain diagram DR650RSE 1995 (S) (E04 E18 E22 E34 E37)
CAM CHAIN DR650RSE 1995 (S) (E04 E18 E22 E34 E37)
×
prices are in EUR
ref
part #
description
quantity
1
1276037400
ref: 1
124LE
CHAIN,CAMSHAFT DRIVE
€ 132.50
2
1277137400
ref: 2
GUIDE,CAM CHAIN
€ 39.50
3
1281137401
ref: 3
TENSIONER,CAM CHAIN
€ 41.50
4
1281232410
ref: 4
BOLT,CAM CHAIN TENSIONER
€ 3.50
5
0916808008
ref: 5
GASKET 8.2X14X1 (NAS)
€ 1.00
6
1283033C10
ref: 6
ADJUSTER ASSY,TENSIONER
€ 91.00
7
1283838200H17
ref: 7
GASKET,ADJUSTER CAP (NAS)
€ 3.00
8
1283724A10
ref: 8
GASKET,TENSIONER ADJUSTER (NAS)
€ 3.50
9
1283938200
ref: 9
PLUG,ADJUSTER
€ 2.00
10-1
0713006255
ref: 10-1
MODEL M/N/P
BOLT
€ 3.00
10-2
0713006253
ref: 10-2
MODEL R/S/T
BOLT,CL.COVER
€ 3.00
