STAND-REAR BRAKE

DR650RSE 1995 (S) (E04 E18 E22 E34 E37)

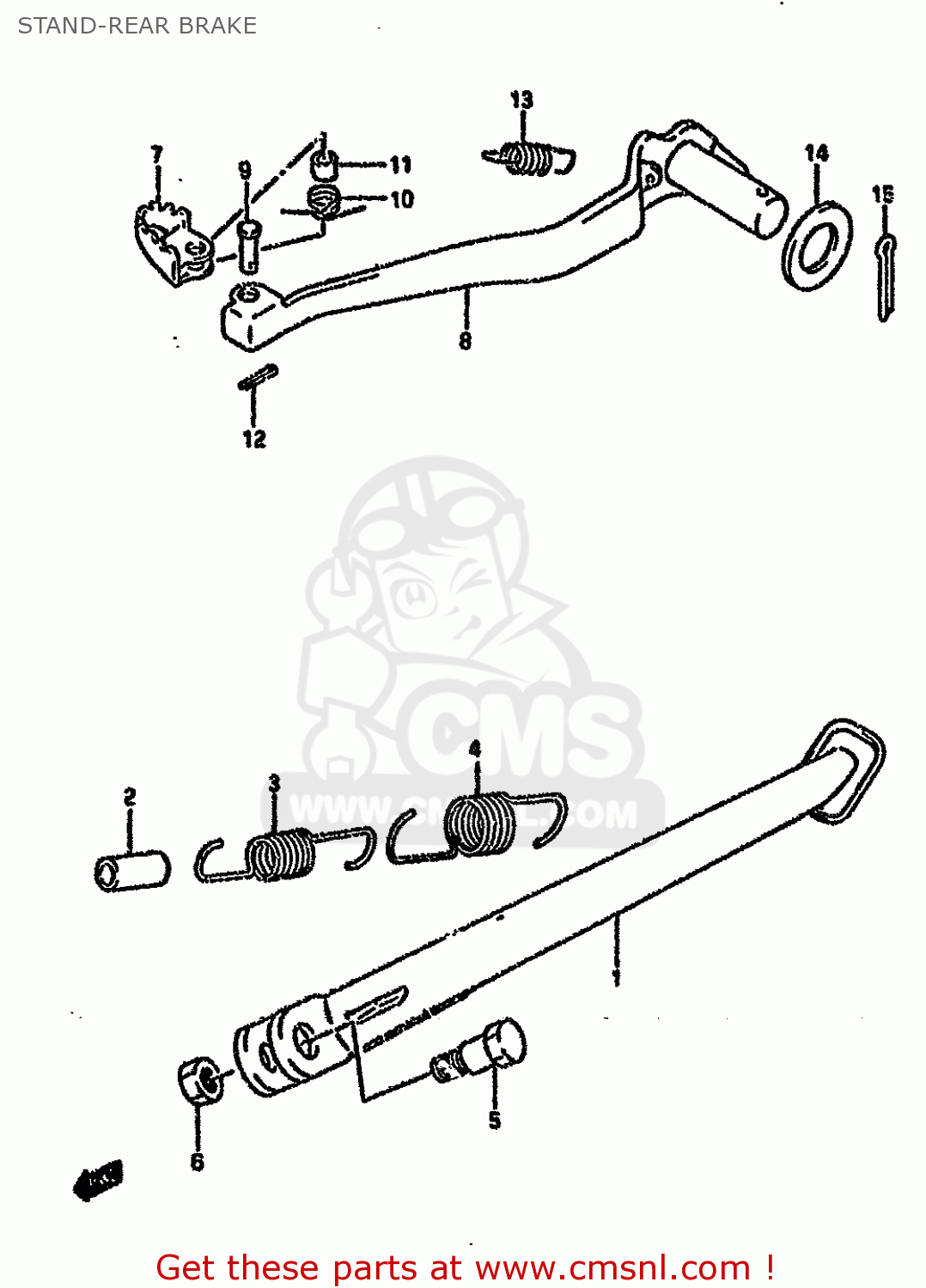

Stand-rear brake diagram DR650RSE 1995 (S) (E04 E18 E22 E34 E37)

prices are in EUR

ref

part #

description

quantity

4231012D20019
ref: 1

STAND PROP

€ 96.00

0935270103600
ref: 2

HOSE(7X10.2X600)

€ 8.00

0944314030
ref: 3

SPRING

€ 6.00

0944322003
ref: 4

SPRING

€ 7.00

0911110047
ref: 5

BOLT(10X30)

€ 4.50

0914010043
ref: 6

NUT

€ 2.00

4311014130
ref: 7

PEDAL,BRAKE

€ 6.00

4312012D00
ref: 8

ARM,BRAKE PEDAL

€ 51.50

0920006038
ref: 9

PIN

€ 2.00

10-1

0944411004
ref: 10-1
MODEL M/N/P

SPRING

€ 3.00

10-2

0944411005
ref: 10-2
MODEL R/S/T

SPRING

€ 3.00

11-1

0918006137
ref: 11-1
MODEL M/N/P/R

SPACER(9.2X9X6.5)

€ 2.50

11-2

0918006165
ref: 11-2
MODEL S/T

SPACER (6.6X9X6.5)

€ 2.50

0411120158
ref: 12

PIN

€ 1.50

0944310033
ref: 13

SPRING

€ 3.50

14-1

0916017021
ref: 14-1
MODEL M/N/P/R

WASHER (17.6X34X2)

€ 2.00

14-2

0916017501
ref: 14-2
MODEL S/T

WASHER (17.5X34X2)

€ 2.00

0411130308
ref: 15

COTTER PIN

€ 1.50
