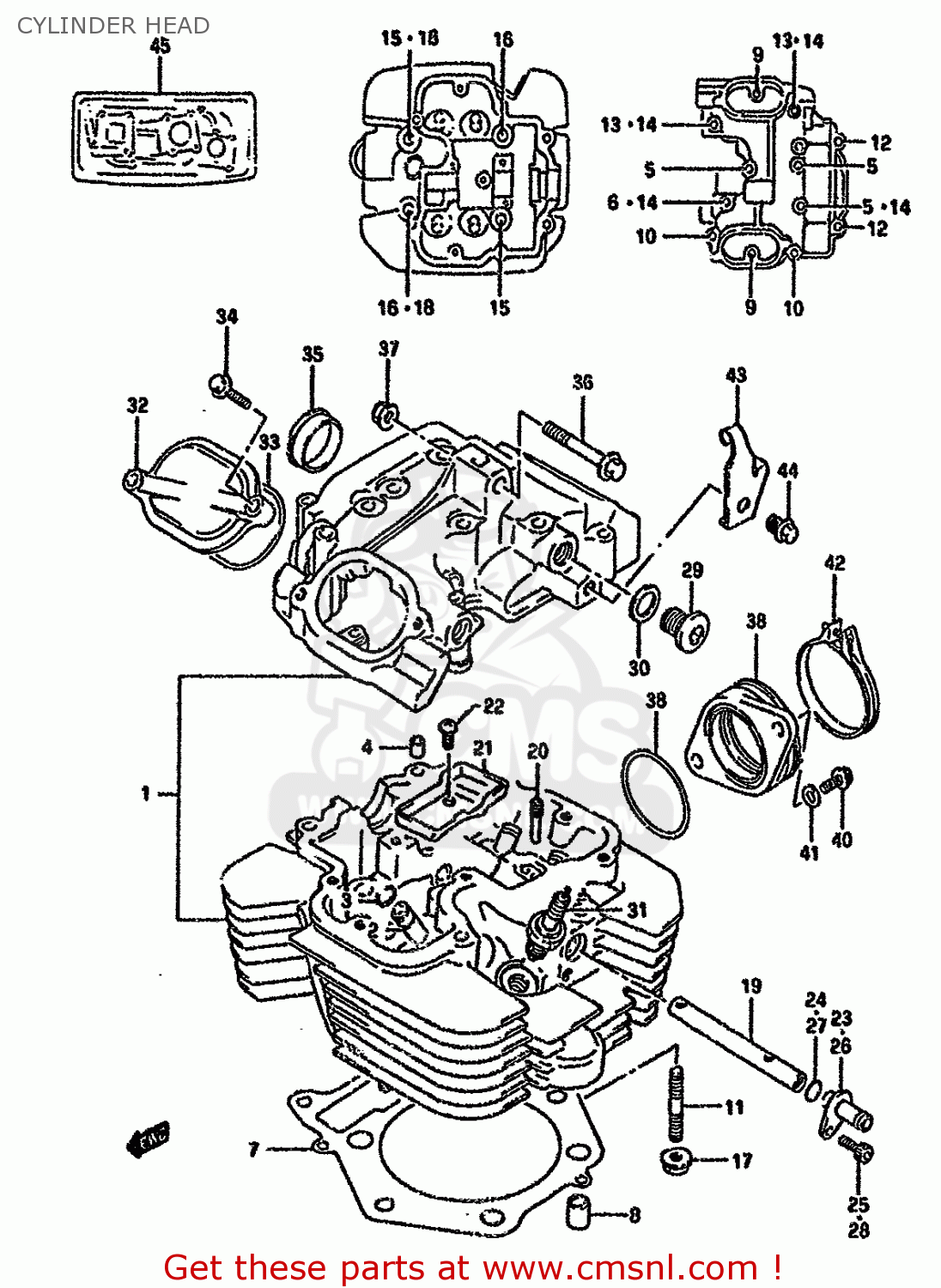

CYLINDER HEAD

ref

part #

description

quantity

1-1

1110012D40
ref: 1-1
MODEL M/N/P

HEAD,CYLINDER

€ 1,210.00

1-2

1110012D80
ref: 1-2
MODEL R/S/T

HEAD ASSEMBLY,CYLINDER

€ 960.50

1-3

1110012D50
ref: 1-3
MODEL M/N/P E18,E39

HEAD ASSY,CYLINDER

€ 0.00

1-4

1110012D90
ref: 1-4
MODEL R/S/T E18

HEAD ASSY, CYLINDER

€ 960.50

2

1111537470
ref: 2

GUIDE,VALVE

€ 20.00

3

0938110003
ref: 3

RING,SNAP

€ 2.50

4

0920608001
ref: 4

PIN(6.2X8X11)

€ 2.00

5

0155006603
ref: 5

BOLT

€ 2.50

6

0910306040
ref: 6

BOLT 6X55

€ 7.00

7

1114112D00
ref: 7

GASKET,CYLINDER HEAD (NAS)

€ 44.50

8

0421113189
ref: 8

PIN

€ 2.50

9-1

0155006257
ref: 9-1
MODEL M/N/P

BOLT

€ 2.50

9-2

0155006253
ref: 9-2
MODEL R/S/T

BOLT

€ 2.50

10

0155006403
ref: 10

BOLT

€ 2.00

11

0910808220
ref: 11
-09108-08161

BOLT,STUD

€ 3.50

12

0910306085
ref: 12

BOLT(6X130)

€ 4.50

13

0155006603
ref: 13

BOLT

€ 2.50

14

0916806023
ref: 14

GASKET(5.8X13X1.2) (NAS)

€ 2.00

15

0910310179
ref: 15

BOLT(10X190)

€ 12.50

16

0910310181
ref: 16

BOLT(10X215)

€ 17.50

17-1

0831616085
ref: 17-1
MODEL M/N/P

NUT 8MM

€ 3.00

17-2

0831610083
ref: 17-2
MODEL R/S/T

NUT

€ 3.00

18

0916810017
ref: 18

GASKET(10.5X22X2) (NAS)

€ 3.50

19

1113112D00
ref: 19

PIPE,CYLINDER HEAD OIL

€ 12.00

20

0913406012
ref: 20

SCREW (L:19.5)

€ 3.00

21

1113512D00
ref: 21

PLATE,CYLINDER HEAD CHAMBER

€ 3.50

22

0211206103
ref: 22

SCREW

€ 1.50

23

1119012D00
ref: 23
~F.NO.SP43A-102911~F

UNION,CYLINDER HEAD OIL

€ 16.50

24

0928010009
ref: 24
~F.NO.SP43A-102911~F

O RING(D:1.3,ID:9.8)

€ 1.50

25

0711006105
ref: 25
~F.NO.SP43A-102911~F

BOLT

€ 2.50

26

1119012D01
ref: 26
F.NO.SP43A-102912~F.

UNION,CYLINDER HEAD OIL

€ 16.50

27

1114306B00
ref: 27
F.NO.SP43A-102912~F.

O RING,HEAD GASKET

€ 8.00

28

0713006163
ref: 28
F.NO.SP43A-102912~F.

BOLT,OIL FILLE

€ 3.00

29

0924814010
ref: 29

PLUG

€ 5.00

30-1

0916814004
ref: 30-1
MODEL M/N/P

GASKET(14X19.2X2) (NAS)

€ 2.50

30-2

0916814002
ref: 30-2
MODEL R/S/T

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

31-1

0948200330
ref: 31-1

PLUG,SPARK(DPR9EA-9)

€ 4.00

31-2

0948200331111
ref: 31-2

SPARK PLUG X27EPR-U9

€ 4.00

32

1117512D10
ref: 32

CAP,INSPECTION

€ 16.00

33

0928060004
ref: 33

O RING(D:2.4,ID:23)

€ 4.50

34

0155006203
ref: 34

BOLT

€ 2.50

35

0924130004
ref: 35

PLUG(OD:30)

€ 6.50

36-1

0910308290
ref: 36-1
MODEL M/N/P

BOLT 8X53

€ 3.50

36-2

0910308289
ref: 36-2
MODEL R/S/T

BOLT(8X50)

€ 5.00

37

0831931085
ref: 37

NUT

€ 2.50

38

1311012D00
ref: 38

PIPE,INTAKE

€ 32.50

39

0928046002
ref: 39

O RING(D:2.4,ID:45.7)

€ 9.50

40-1

0712006205
ref: 40-1
MODEL M/N/P

PLUG ,6X20

€ 3.50

40-2

0712006203
ref: 40-2
MODEL R/S/T

BOLT

€ 3.50

41-1

0832131064
ref: 41-1
MODEL M/N/P

WASHER

€ 2.00

41-2

0832101063
ref: 41-2
MODEL R/S/T

LOCK WASHER

€ 2.00

42

0940258208
ref: 42

CLAMP

€ 5.50

43

1294412D00
ref: 43

HOLDER,DECOMP CABLE

€ 8.50

44-1

0910308308
ref: 44-1
MODEL M/N/P/R/S

BOLT 8X16

€ 2.50

44-2

0910308283
ref: 44-2
MODEL T

BOLT(8X16)

€ 2.50

45-1

1140112813
ref: 45-1
MODEL M/N/P/R/S

GASKET SET

€ 146.50

45-2

1140112820
ref: 45-2
MODEL T

GASKET SET

€ 0.00

all assemblies
